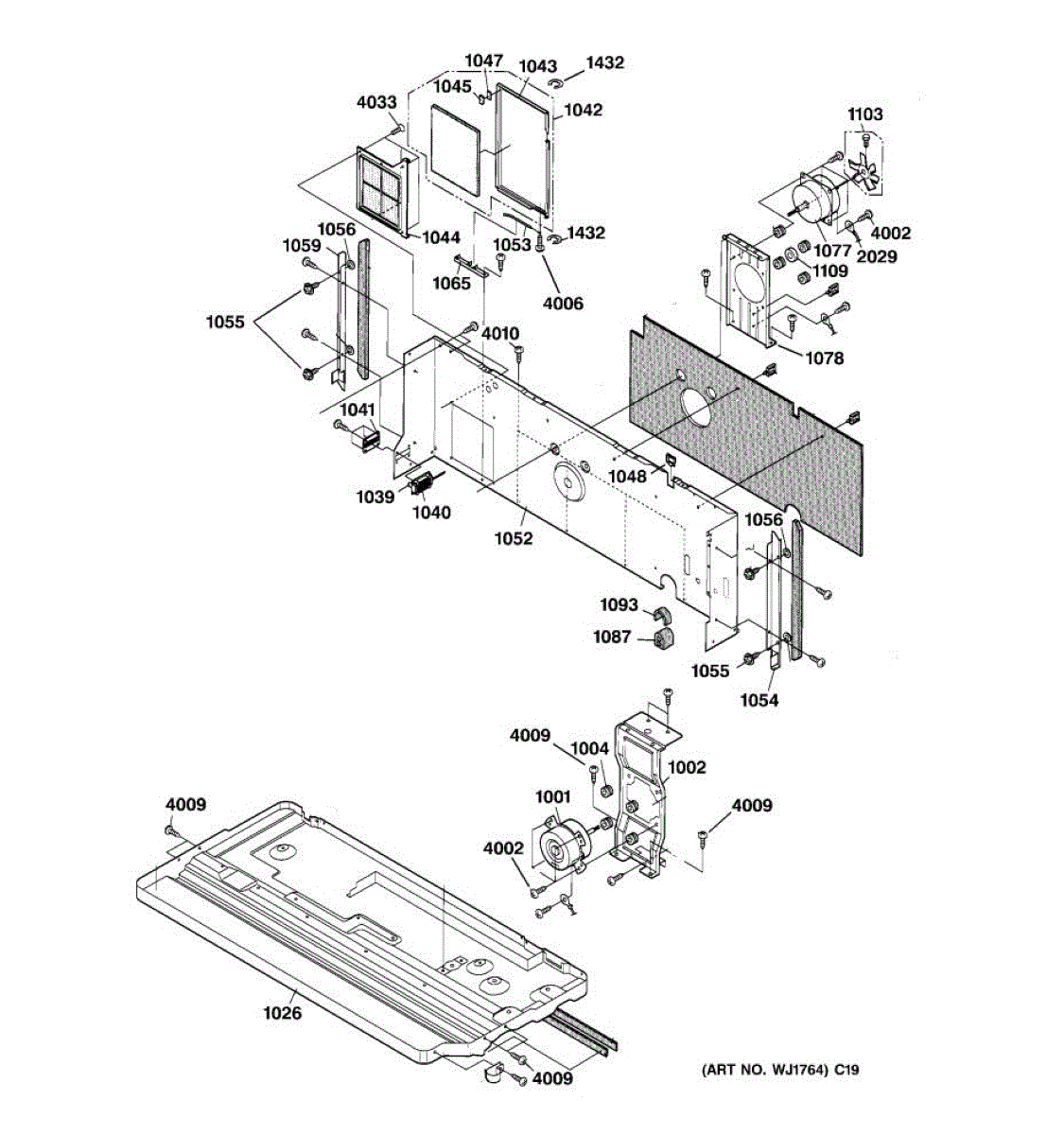

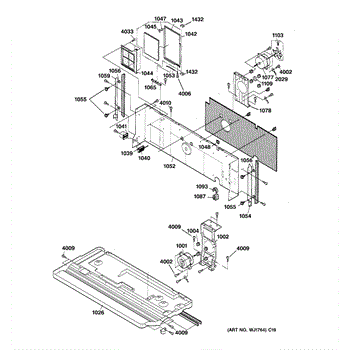

Parts for Ge AZ22E12E4PM2: 03 - Chassis Assembly Parts

Replace your air conditioner fan motor if your AC won't blow air or makes grinding noises. This motor assembly restores proper airflow and cooling.

Rubber cushion that mounts between the air conditioner motor and housing to reduce vibration and noise. Replace if cracked, compressed, or missing.

This base pan assembly is the lower support pan that helps protect the appliance cabinet and catch minor leaks or debris. It restores the unit's stable mounting and helps keep internal components protected from spills. What it does:

• Provides the lower structural support for the appliance cabinet and components
• Channels and contains incidental water or debris away from electronics and controls
• Helps maintain proper alignment and stability of the appliance on the floor
• Reduces vibration transfer and helps prevent direct contact between components and the floor

• One base pan assembly as shown

• Disconnect power and water before beginning
• Check for secure mounting points and replace any worn fasteners or grommets during reassembly
• Inspect surrounding seals, hoses, and mounts for damage while the appliance is open
• Use manufacturer-recommended hardware and follow OEM disassembly/reassembly steps

Special mounting screw for air conditioner assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during maintenance.

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

AC not cooling or making noise? A failing fan motor stops airflow. This motor restores circulation and quiet operation. Moderate DIY repair for most models.

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.

Replacement mounting screw for air conditioner units. Secures cabinet panels and internal components. Order if your original screw is missing or stripped.
