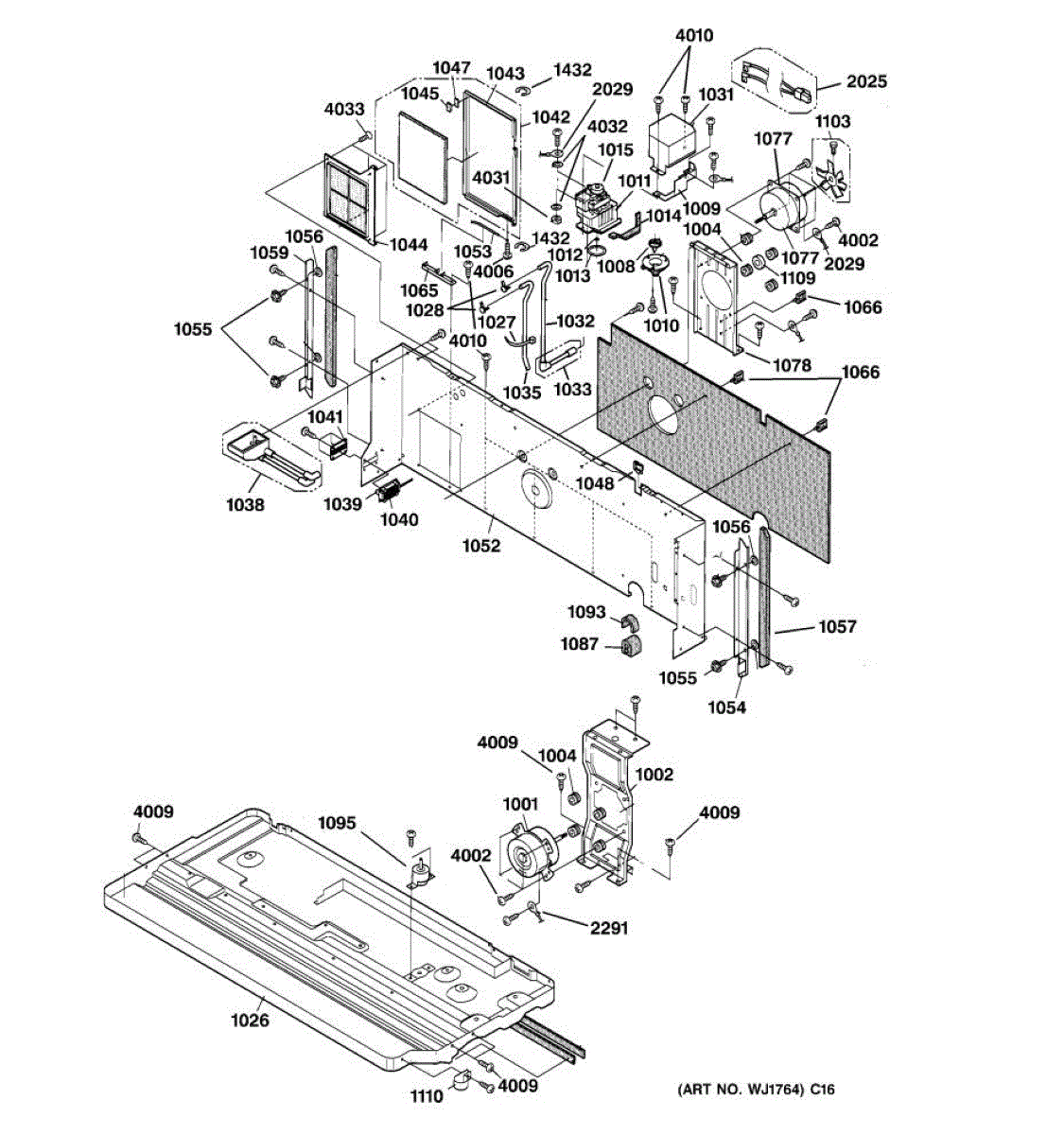

Parts for Ge AZ32H12D2DM2: 03 - Chassis Assembly Parts

Rubber cushion that mounts between the air conditioner motor and housing to reduce vibration and noise. Replace if cracked, compressed, or missing.

This pump housing cover protects and seals the appliance drain/pump assembly to help direct water flow and prevent leaks. It replaces a worn or damaged cover to restore proper drainage and reduce water under the appliance. What it does:

• Seals the pump housing so water drains through the pump instead of leaking out
• Helps maintain correct flow path for the drain system
• Common replacement for symptoms like leaks under the appliance or water pooling after cycles
• Can be needed if cover is cracked, warped, or the pump seal area is damaged

• Disconnect power and water supply before starting any repair
• Drain remaining water from the appliance and work on a dry surface
• Remove access panels and mounting hardware to reach the pump housing; keep fasteners for reassembly
• Inspect sealing surfaces and gaskets; replace any damaged seals to ensure a leak-free fit; test appliance after reassembly

This replacement fan housing secures the evaporator fan motor and blade assembly to restore proper airflow inside the freezer compartment, helping the appliance maintain consistent cooling and temperature control. What it does:

• Holds the evaporator fan motor and blade in the correct position to direct airflow across the evaporator coils
• Restores stable, quiet fan operation when a cracked or damaged housing causes vibration or rubbing
• Helps improve cooling consistency when airflow has been disrupted
• Prevents contact between the fan blade and cabinet that can cause noise or motor strain

• 1 fan housing

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the evaporator cover; keep fasteners organized
• Inspect the fan blade and motor during install; replace any damaged components to prevent repeat failure
• Do not overtighten mounting screws; ensure the fan spins freely after installation

A replacement rubber O-ring that seals connections to help prevent water or air leaks and restore proper sealing performance. Use this small, flexible gasket where a worn O-ring is allowing drips or loss of pressure. What it does:

• Forms a watertight/airtight seal between joined parts to stop leaks
• Prevents water from dripping at hose, valve, or fitting connections
• Restores reliable sealing when an original O-ring is cracked, flattened, or missing
• Helps maintain pressure and proper flow by eliminating gaps

• Inspect mating surfaces and replace the O-ring only when the exact size and material match the original
• Lightly coat with food-safe silicone or the manufacturer-recommended lubricant
• Ensure the O-ring seats evenly in its groove before reassembling; avoid twisting or pinching
• Disconnect power and shut off water supply before replacing parts; follow all appliance-specific safety instructions

This base pan assembly is the lower cabinet support that secures bottom-mounted components and helps contain lint and debris for proper dryer function. It restores a solid mounting surface and a clean lower cabinet area. What it does:

• Provides a stable mounting surface for blower, motor mounts, and other bottom components
• Helps contain lint and debris away from internal components
• Restores correct clearance and alignment for the front lower cabinet
• Reduces rattles and vibration caused by a damaged or missing base pan

• One base pan assembly as shown

• Disconnect power (and gas if applicable) before beginning repair
• Remove the dryer front panel and lower trim to access the base pan
• Watch for sharp sheet-metal edges and wear gloves; retain original fasteners for reuse if undamaged
• Some models use clips or screws to secure the pan

Special mounting screw for air conditioner assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during maintenance.

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

Replacement mounting nut for air conditioner units. Secures panels and components during installation. Needed when original nut is stripped, lost, or damaged.

This wire fixing band is a small retainer clamp that secures wiring harnesses and individual wires to appliance chassis to prevent rubbing, pinching, or accidental disconnection. It helps protect wiring from damage and reduces electrical faults. What it does:

• Holds wiring harnesses and loose wires in place to prevent contact with hot or moving parts
• Reduces wear from vibration and movement that can cause frayed insulation or shorts
• Helps maintain safe routing of wires to avoid pinch points and strain on connectors
• Commonly used where a simple clipped band or strap is needed to fasten wires to sheet metal

• Inspect surrounding wiring and connectors before installation; replace damaged wires or insulation
• Secure the band to the designated chassis hole or stud without over-tightening to avoid crushing wires
• Disconnect power before accessing wiring and follow all appliance safety procedures

Fix an air conditioner that won't cool or has a fan that won't spin with this double-shaft fan motor. Direct-fit part for window and wall units.

Fix water pooling or leaking from your air conditioner with this drain valve. Restores proper condensate drainage in minutes with basic tools.

Replacement wire holder for air conditioners. Secures and organizes internal wiring. Order a new holder if yours is cracked, broken, or missing.

This icemaker lead wire supplies electrical connection between the icemaker module and the refrigerator wiring, restoring power and signal for reliable ice production. It's a direct-replacement harness used in affected GE refrigerators. What it does

• Provides the electrical connection that powers and signals the icemaker module
• Restores icemaker operation when a damaged or broken harness prevents cycling
• Helps stop intermittent ice production, no-power, or non-cycling icemaker symptoms
• Matches OEM connector ends and routing for a like-for-like replacement

• Disconnect refrigerator power before inspecting or replacing the harness
• Verify connector orientation and full engagement to avoid loose connections
• Route the harness following original wiring paths and secure clips as needed

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.
