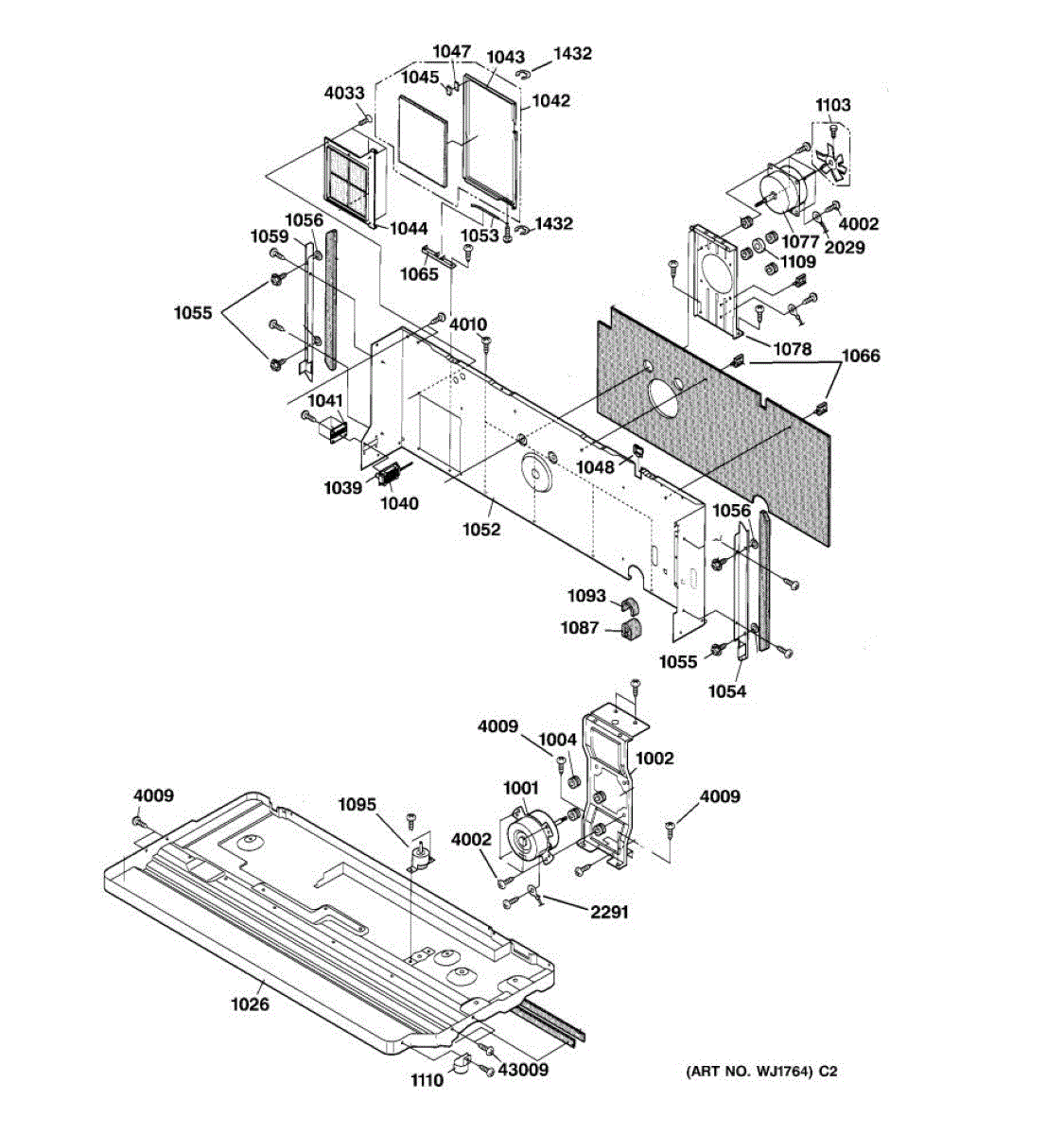

Parts for Ge AZ32H15D2BM2: 03 - Chassis Assembly Parts

Fix an air conditioner that won't blow air or makes grinding noises with this fan motor assembly. Common repair for units with poor airflow issues.

Rubber cushion that mounts between the air conditioner motor and housing to reduce vibration and noise. Replace if cracked, compressed, or missing.

This base pan assembly is the lower cabinet support that secures bottom-mounted components and helps contain lint and debris for proper dryer function. It restores a solid mounting surface and a clean lower cabinet area. What it does:

• Provides a stable mounting surface for blower, motor mounts, and other bottom components
• Helps contain lint and debris away from internal components
• Restores correct clearance and alignment for the front lower cabinet
• Reduces rattles and vibration caused by a damaged or missing base pan

• One base pan assembly as shown

• Disconnect power (and gas if applicable) before beginning repair
• Remove the dryer front panel and lower trim to access the base pan
• Watch for sharp sheet-metal edges and wear gloves; retain original fasteners for reuse if undamaged
• Some models use clips or screws to secure the pan

Special mounting screw for air conditioner assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during maintenance.

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

This wire fixing band is a small retainer clamp that secures wiring harnesses and individual wires to appliance chassis to prevent rubbing, pinching, or accidental disconnection. It helps protect wiring from damage and reduces electrical faults. What it does:

• Holds wiring harnesses and loose wires in place to prevent contact with hot or moving parts
• Reduces wear from vibration and movement that can cause frayed insulation or shorts
• Helps maintain safe routing of wires to avoid pinch points and strain on connectors
• Commonly used where a simple clipped band or strap is needed to fasten wires to sheet metal

• Inspect surrounding wiring and connectors before installation; replace damaged wires or insulation
• Secure the band to the designated chassis hole or stud without over-tightening to avoid crushing wires
• Disconnect power before accessing wiring and follow all appliance safety procedures

This replacement fan motor circulates air inside the refrigerator to help maintain even temperatures and proper cooling. Designed to restore airflow when the original motor fails or becomes noisy. What it does

• Spins the evaporator/condensing fan

Fix water pooling or leaking from your air conditioner with this drain valve. Restores proper condensate drainage in minutes with basic tools.

Replacement wire holder for air conditioners. Secures and organizes internal wiring. Order a new holder if yours is cracked, broken, or missing.

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.
