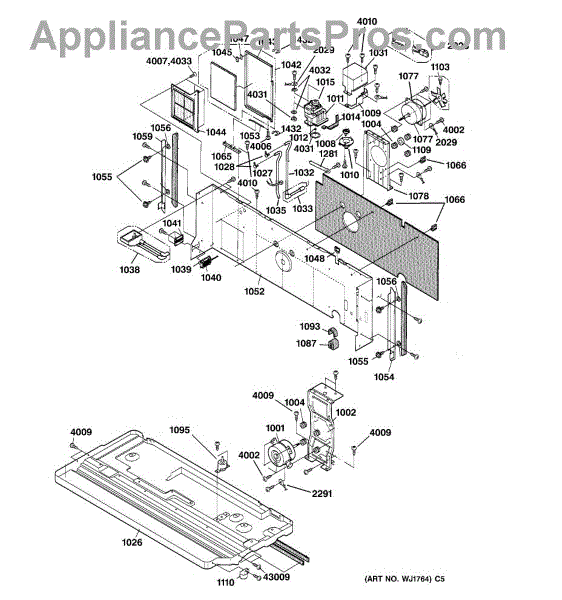

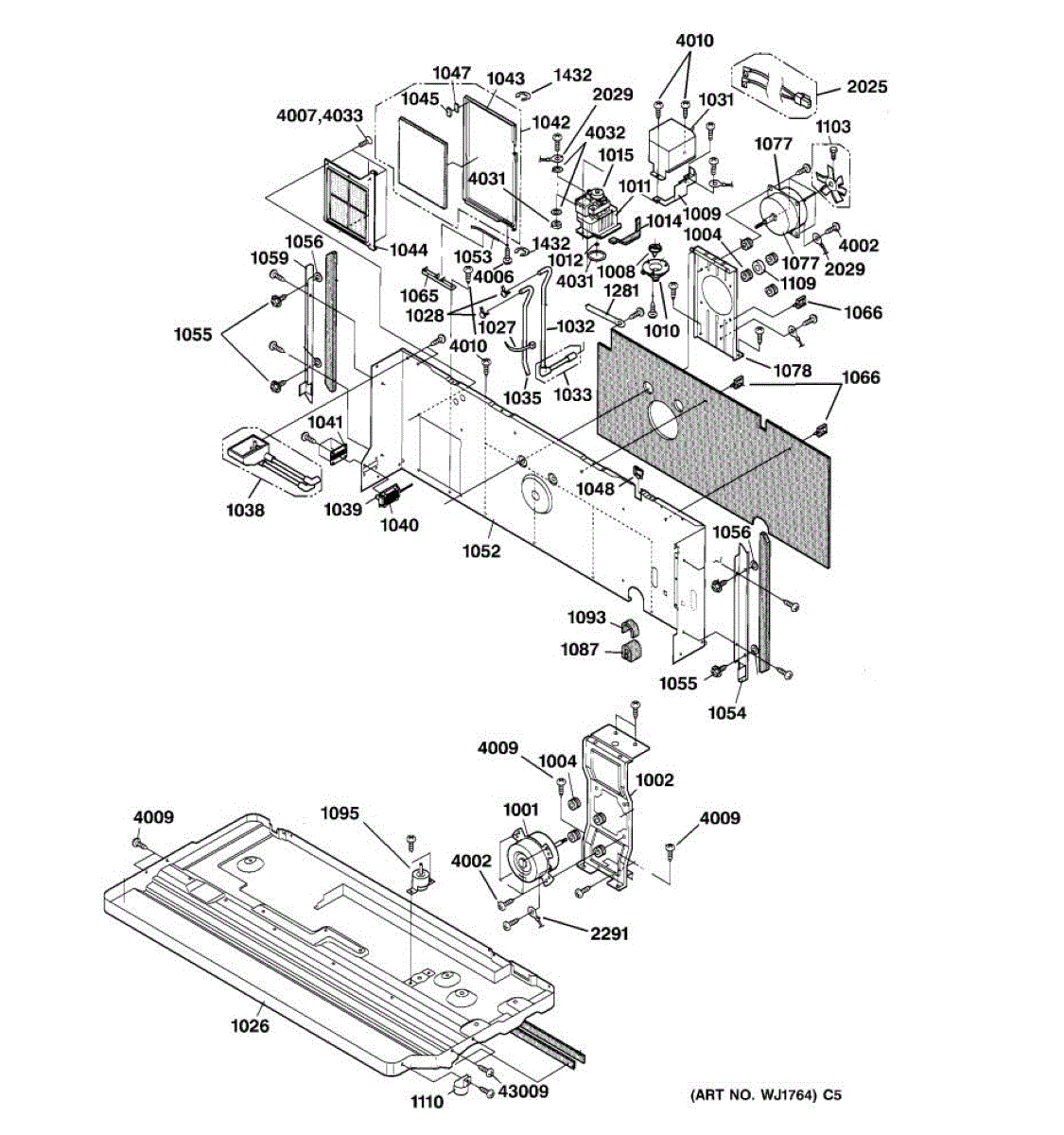

Parts for Ge AZ32H15E3DM1: 03 - Chassis Assembly Parts

Fix an air conditioner that won't blow air or makes grinding noises with this fan motor assembly. Common repair for units with poor airflow issues.

Rubber cushion that mounts between the air conditioner motor and housing to reduce vibration and noise. Replace if cracked, compressed, or missing.

This pump housing cover protects and seals the appliance drain/pump assembly to help direct water flow and prevent leaks. It replaces a worn or damaged cover to restore proper drainage and reduce water under the appliance. What it does:

• Seals the pump housing so water drains through the pump instead of leaking out
• Helps maintain correct flow path for the drain system
• Common replacement for symptoms like leaks under the appliance or water pooling after cycles
• Can be needed if cover is cracked, warped, or the pump seal area is damaged

• Disconnect power and water supply before starting any repair
• Drain remaining water from the appliance and work on a dry surface
• Remove access panels and mounting hardware to reach the pump housing; keep fasteners for reassembly
• Inspect sealing surfaces and gaskets; replace any damaged seals to ensure a leak-free fit; test appliance after reassembly

This replacement fan housing secures the evaporator fan motor and blade assembly to restore proper airflow inside the freezer compartment, helping the appliance maintain consistent cooling and temperature control. What it does:

• Holds the evaporator fan motor and blade in the correct position to direct airflow across the evaporator coils
• Restores stable, quiet fan operation when a cracked or damaged housing causes vibration or rubbing
• Helps improve cooling consistency when airflow has been disrupted
• Prevents contact between the fan blade and cabinet that can cause noise or motor strain

• 1 fan housing

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the evaporator cover; keep fasteners organized
• Inspect the fan blade and motor during install; replace any damaged components to prevent repeat failure
• Do not overtighten mounting screws; ensure the fan spins freely after installation

This base pan assembly is the lower cabinet support that secures bottom-mounted components and helps contain lint and debris for proper dryer function. It restores a solid mounting surface and a clean lower cabinet area. What it does:

• Provides a stable mounting surface for blower, motor mounts, and other bottom components
• Helps contain lint and debris away from internal components
• Restores correct clearance and alignment for the front lower cabinet
• Reduces rattles and vibration caused by a damaged or missing base pan

• One base pan assembly as shown

• Disconnect power (and gas if applicable) before beginning repair
• Remove the dryer front panel and lower trim to access the base pan
• Watch for sharp sheet-metal edges and wear gloves; retain original fasteners for reuse if undamaged
• Some models use clips or screws to secure the pan

Special mounting screw for air conditioner assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during maintenance.

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

This wire fixing band is a small retainer clamp that secures wiring harnesses and individual wires to appliance chassis to prevent rubbing, pinching, or accidental disconnection. It helps protect wiring from damage and reduces electrical faults. What it does:

• Holds wiring harnesses and loose wires in place to prevent contact with hot or moving parts
• Reduces wear from vibration and movement that can cause frayed insulation or shorts
• Helps maintain safe routing of wires to avoid pinch points and strain on connectors
• Commonly used where a simple clipped band or strap is needed to fasten wires to sheet metal

• Inspect surrounding wiring and connectors before installation; replace damaged wires or insulation
• Secure the band to the designated chassis hole or stud without over-tightening to avoid crushing wires
• Disconnect power before accessing wiring and follow all appliance safety procedures

This replacement fan motor circulates air inside the refrigerator to help maintain even temperatures and proper cooling. Designed to restore airflow when the original motor fails or becomes noisy. What it does

• Spins the evaporator/condensing fan blade to move air across coils and through the cabinet
• Helps prevent warm spots and uneven cooling by keeping airflow consistent
• Can stop or slow cooling if the motor fails, or cause buzzing/rattling when worn
• Commonly used when the fridge is noisy, not cooling properly, or has frost/ice build-up near coils

• Disconnect power to the appliance before starting any repair
• Handle the motor and fan blade carefully to avoid bending blades or damaging the shaft
• Verify fan blade clearance and wiring harness orientation before restoring power

Fix water pooling or leaking from your air conditioner with this drain valve. Restores proper condensate drainage in minutes with basic tools.

Replacement wire holder for air conditioners. Secures and organizes internal wiring. Order a new holder if yours is cracked, broken, or missing.

This icemaker lead wire supplies electrical connection between the icemaker module and the refrigerator wiring, restoring power and signal for reliable ice production. It's a direct-replacement harness used in affected GE refrigerators. What it does

• Provides the electrical connection that powers and signals the icemaker module
• Restores icemaker operation when a damaged or broken harness prevents cycling
• Helps stop intermittent ice production, no-power, or non-cycling icemaker symptoms
• Matches OEM connector ends and routing for a like-for-like replacement

• Disconnect refrigerator power before inspecting or replacing the harness
• Verify connector orientation and full engagement to avoid loose connections
• Route the harness following original wiring paths and secure clips as needed

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.
