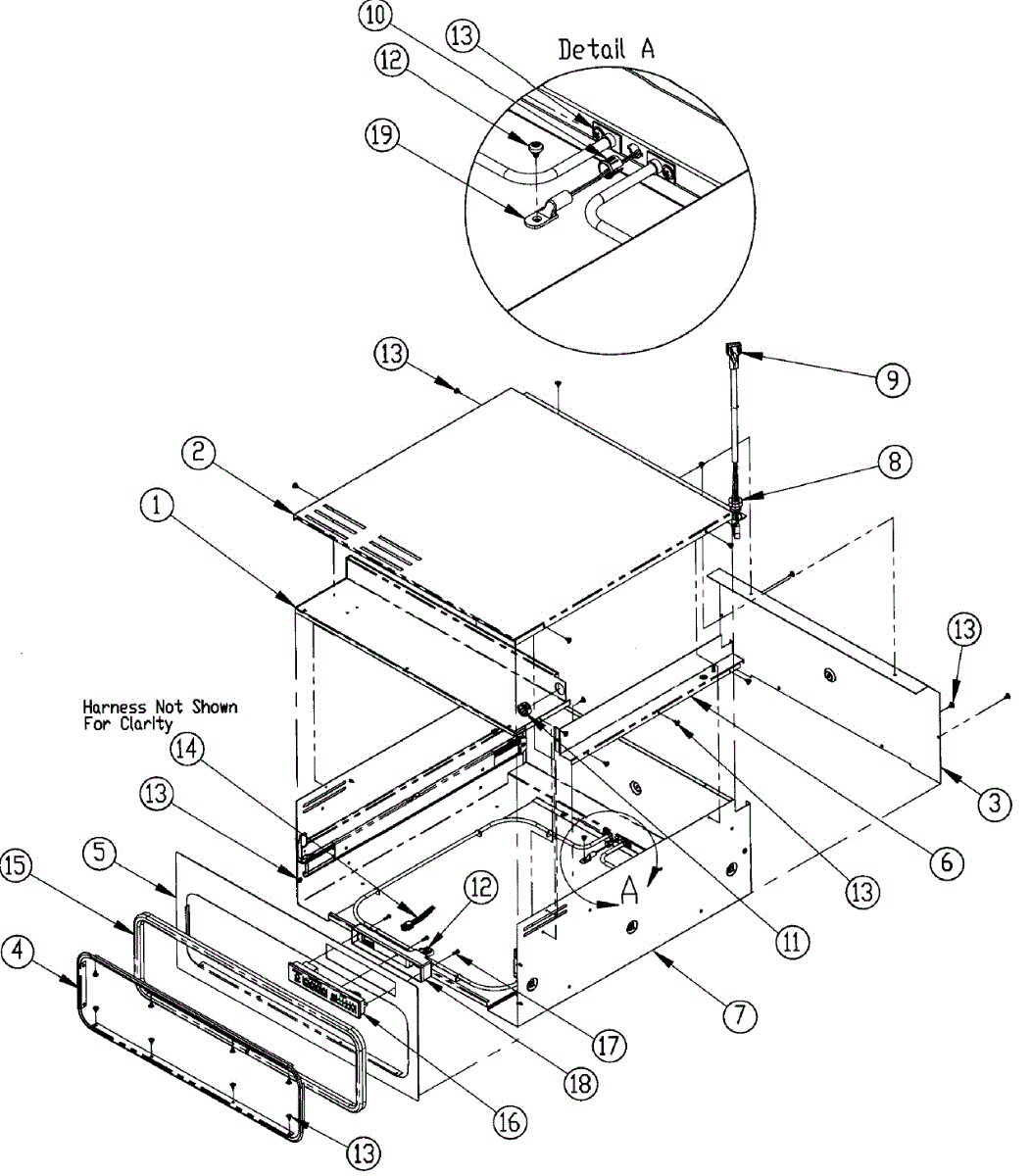

Parts for Dacor IWD24: Chassis Parts

This service assembly channel control routes control signals for proper operation of the appliance. It replaces a worn or damaged channel control to restore reliable electronic communication and function. What it does:

• Routes and connects control signals between control board components
• Restores proper panel/board communication when the channel is damaged
• Commonly replaced when control-related errors, loss of function, or intermittent responses occur
• Works as a direct-fit replacement part when the original channel assembly is faulty

• One service assembly channel control (1 each)

• Disconnect power (and water, if applicable) before servicing to avoid shock or injury
• Handle board assemblies carefully and avoid bending or stressing connectors
• Use basic hand tools; access may require removing outer panels or console

This service bushing protects and cushions appliance wiring where it passes through metal panels, helping prevent chafing and shorts. It's a simple replacement that restores proper routing and insulation for harness wires. What it does:

• Cushions wiring at panel openings to reduce abrasion and wear
• Keeps wiring properly routed to prevent pinching or intermittent connections
• Helps stop rattling or vibration where wires contact metal edges
• Addresses symptoms like exposed or frayed insulation, burning smell, or intermittent power related to damaged panel wiring

• One service bushing

• Disconnect power before starting any repair
• Remove the access panel or trim to reach the damaged bushing location
• Press the bushing into the panel hole until fully seated; replace wiring through the bushing as routed originally
• Inspect surrounding wiring and replace any frayed or heat-damaged sections; reassemble panels securely

Factory wafer-head Phillips screw (#8 x 3/8 in) secures panels, brackets, and covers. Replace missing, stripped, or damaged screws for proper alignment.

Fix warming drawer not heating or responding to controls with this control board and overlay assembly. Moderate DIY repair for most warming drawer models.

Drawer only gets hot regardless of temperature setting? This thermistor monitors internal temperature to restore accurate heat regulation and prevent overheating.
