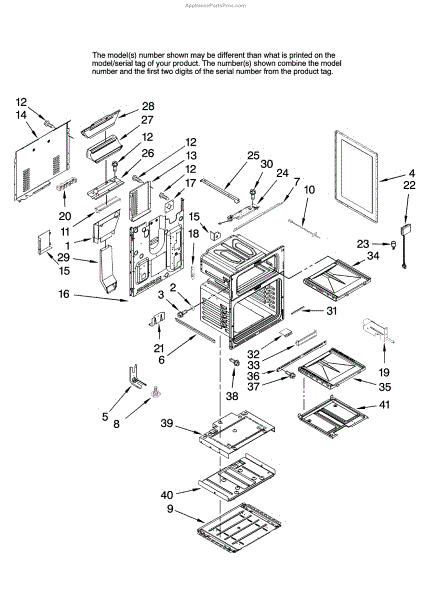

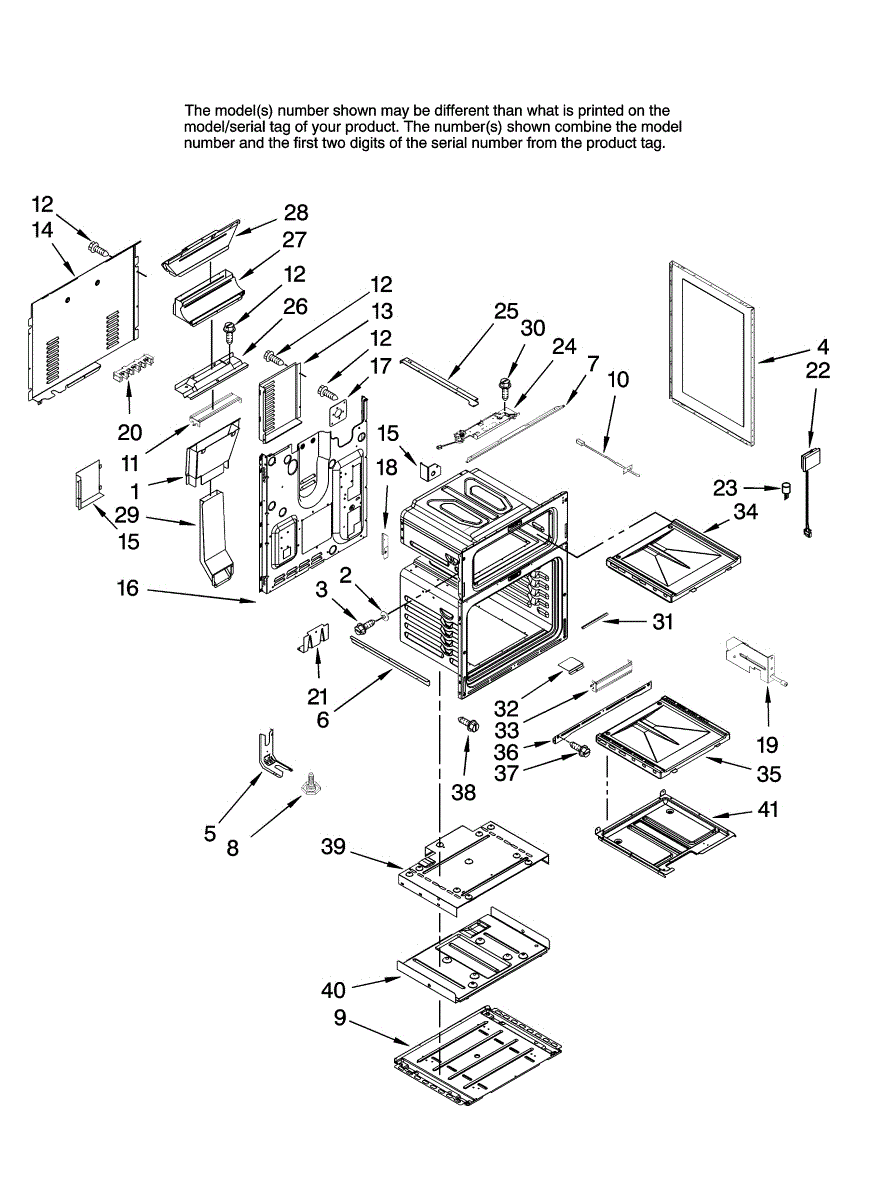

Parts for Kenmore 665.78009801 (66578009801, 665 78009801): Chassis Parts

Size: No. 8

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

Base unit frame assembly for gas ranges. Provides structural support for the chassis. Replace if cracked, bent, or damaged. Essential cabinet component.

Fix inaccurate oven temperatures or heating issues with this temperature sensor. Measures cavity heat and signals the control board. Easy DIY repair.

Oven not heating properly or showing F3 error? The temperature sensor likely failed. Simple DIY fix—unplug, remove 2 screws, replace sensor.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Oven light won't turn on or off? Replace the light switch assembly to restore reliable control. Moderate DIY repair taking 15-30 minutes with basic tools.

Oven light won't turn on or off? Replace the light switch assembly to restore reliable control. Moderate DIY repair taking 15-30 minutes with basic tools.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For bulb only, order part# WP74009925.

Halogen light bulb for oven interior illumination. Replace when burned out or dimming to monitor cooking without opening the door. Verify fit by model.

This door latch assembly secures and electrically locks the washer door so cycles can start and run safely. It replaces a worn or failed latch to restore proper door locking and cycle operation. What it does:

• Physically secures and aligns the washer door so it closes properly.
• Activates the door-lock switch so the machine can start and run.
• Helps prevent the door from opening mid-cycle, reducing leaks and interruptions.
• Commonly used when the washer won't start, shows a door-lock error, or the door won't stay closed.

• One complete door latch assembly.

• Disconnect power before starting any repair to avoid shock or injury.
• Remove the washer door boot or front panel to access the latch.
• Check wiring harness connections and connector orientation before reconnecting.
• After installation, run a short diagnostic or test cycle to ensure the latch locks and releases correctly.

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Bottom oven frame panel for ranges. Installs as the lower structural support of the oven cavity. Replace if cracked, rusted, warped, or damaged.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This screw secures components inside your range. Replace it if the original is stripped, lost, or damaged during repairs to ensure proper assembly.

Insulation panel that installs on the lower back of your oven to dampen sound and retain heat. Replace if cracked, deteriorated, or missing.

Insulation wrap for ranges. Installs around components to reduce heat transfer and dampen sound. Replace if damaged, torn, or missing for proper protection.
