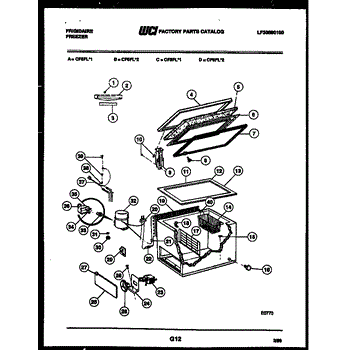

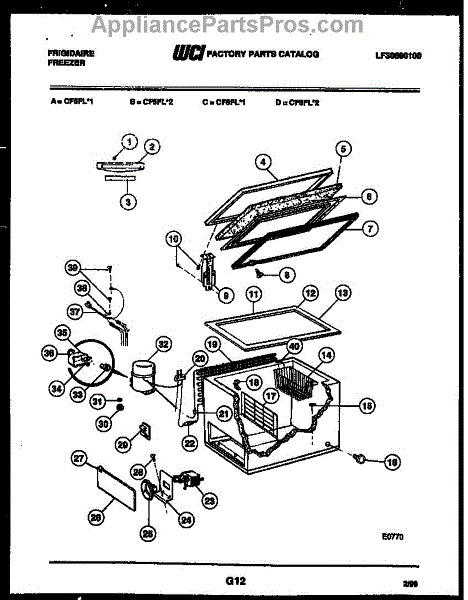

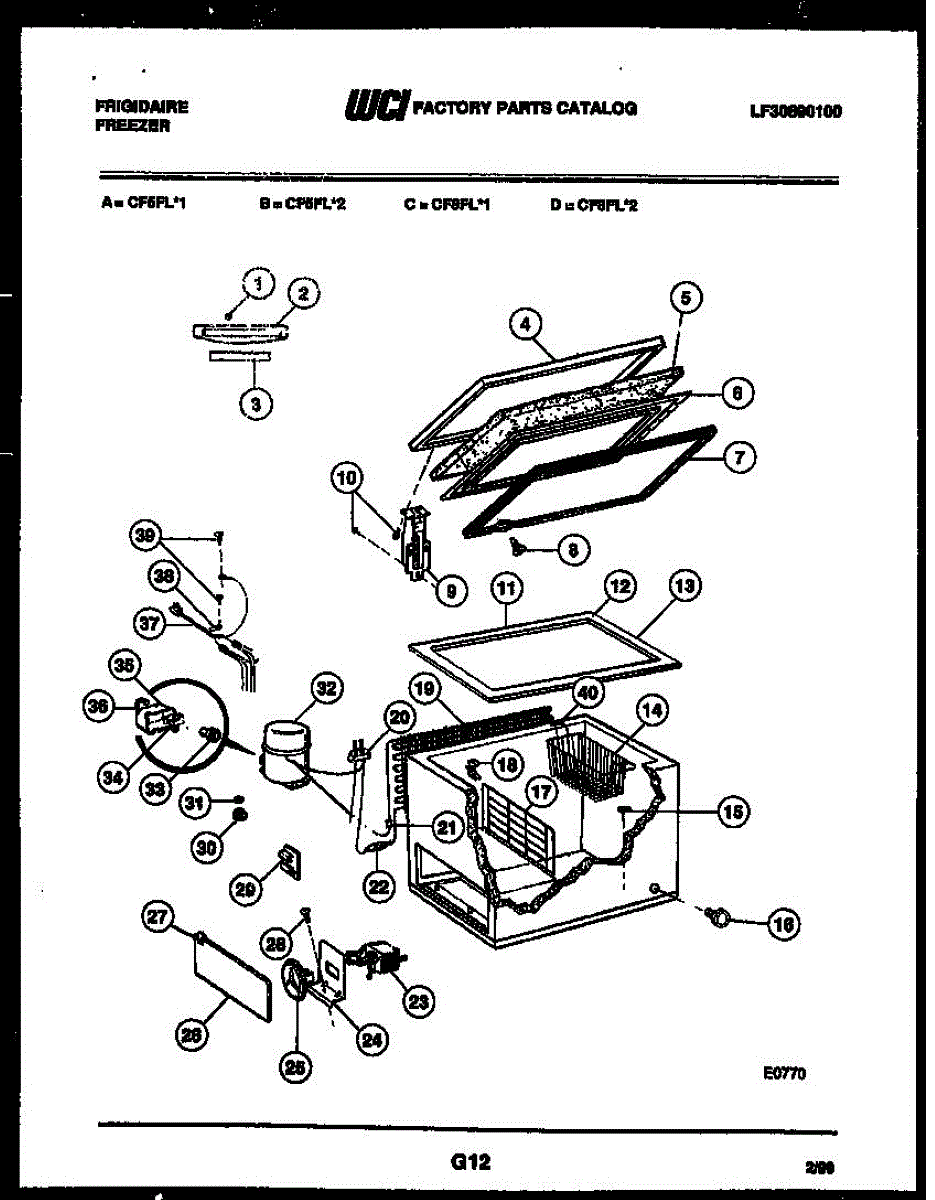

Parts for Frigidaire CF5FL2: 02 - Chest Freezer Parts

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

Quantity of 1 clip.

Note: See kit# 5303922007 and 5304406520.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This is an authentic OEM freezer basket bumper sourced directly from the manufacturer for use on freezer baskets. Freezer basket bumpers are attached to the baskets to keep them from sliding around inside the freezer. If the bumper breaks, the basket will not stay in place, and the contents could shift or fall out. Freezer baskets create more storage room inside a freezer. These baskets are normally located on the bottom of the freezer, with freezer racks located above. Freezer baskets are ideal for storing smaller packages that might not stack well on the racks. Over time, normal wear and tear may cause the bumper to crack or break completely; if this happens, the bumper should be replaced. Remove the contents of the freezer basket. Remove the freezer basket from the freezer. Push the new bumper onto the freezer basket. Replace the contents of the basket and put it back into the freezer. This handle freezer basket is made of high-quality, white molded plastic. It is designed for use in freezers manufactured by Frigidaire, Kenmore, Gibson, and Electrolux.

This cold control kit replaces the mechanical temperature control thermostat that regulates your refrigerator or freezer's cooling. Restore proper temperature regulation and consistent cycling when the original control sticks, drifts out of calibration, or fails intermittently.

• Senses compartment temperature with a capillary bulb and opens/closes contacts to maintain the set temperature
• Cycles the cooling system on and off for steady, reliable performance
• Common symptoms: too warm or over-cooling/freezing items, unit won't start unless the dial is moved, runs constantly, erratic temperature swings, unresponsive temperature dial
• Helps correct intermittent cooling caused by worn or pitted thermostat contacts

• Disconnect power before servicing; work in a dry area
• Access the control housing, note wire locations, and transfer wires to the new control one at a time
• Route and secure the sensing bulb/capillary exactly as original; do not kink or sharply bend it
• Set to a mid-range setting after installation and allow up to 24 hours for temperatures to stabilize

This part has been discontinued by the manufacturer and is no longer available.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose
