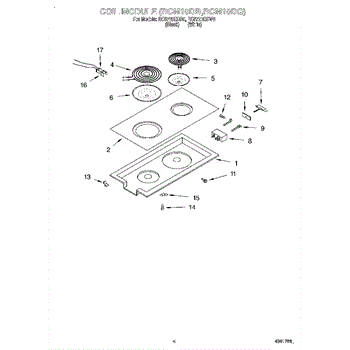

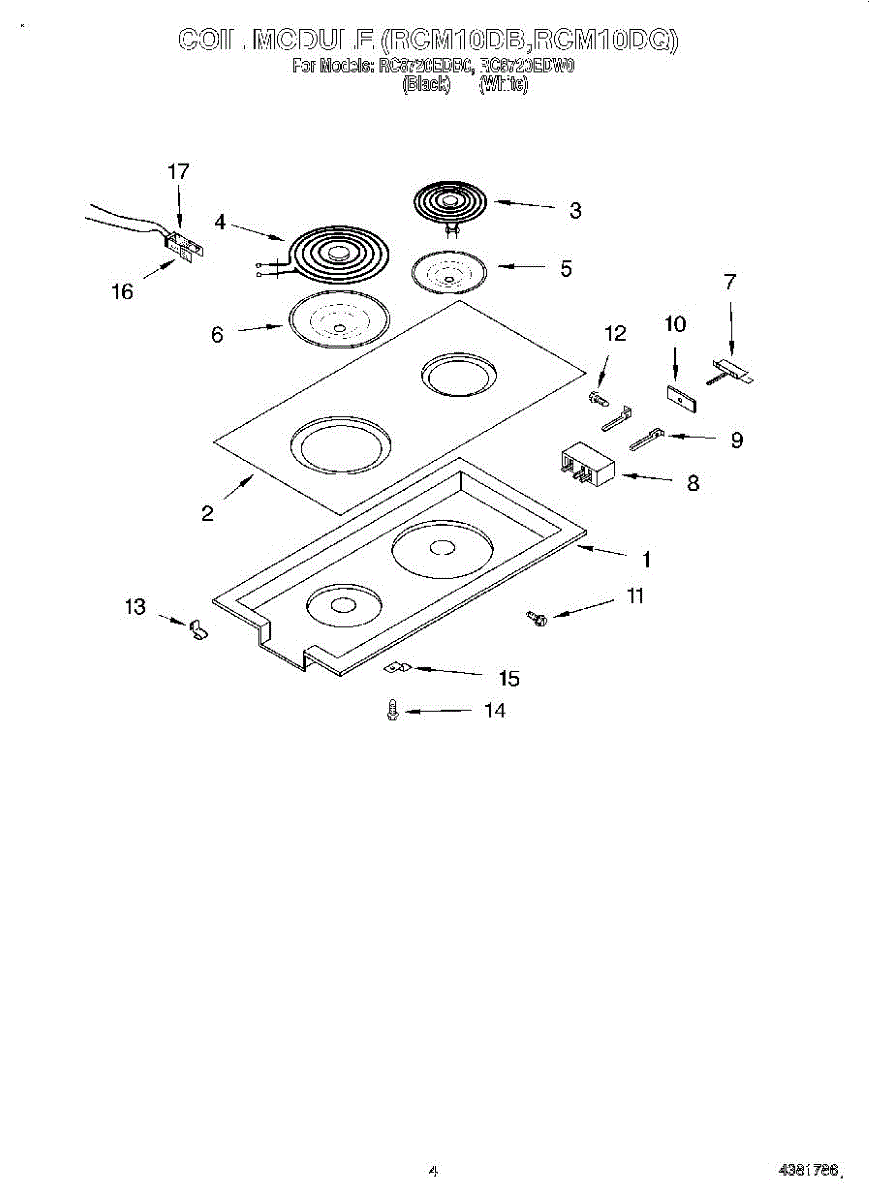

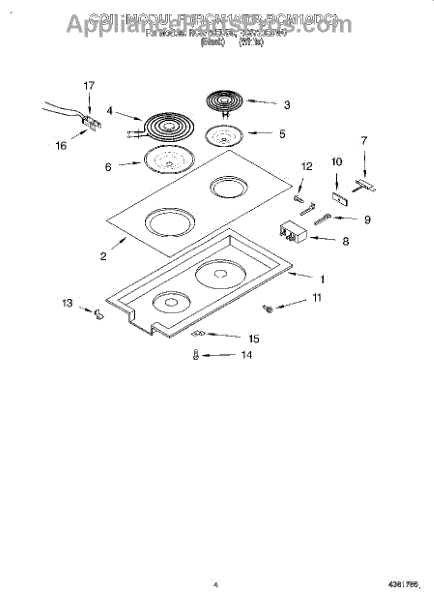

Parts for Whirlpool RC8720EDB0: 04 - Coil Module (Rcm10db, Rcm10dq) Parts

Replacement top panel for your cooktop. This outer cover installs over the main body and may need replacement if cracked, chipped, or damaged. Restores appearance.

This is a white metal cooktop surface designed for ranges with modular cartridge-style cooking elements. It serves as the main top where cookware is placed and provides the mounting surface for the heating cartridges. Replace this part if the surface is cracked, chipped, warped, or has rust damage that could affect safe cooking.

Burner not heating or working on your range? This surface heating element restores cooking performance. Simple plug-in replacement in under 10 minutes.

If your cooktop burner won't heat or heats unevenly, the surface element may be faulty. Simple plug-in replacement takes under 10 minutes to install.

Replacement 6-inch drip pan for electric ranges and cooktops. Installs under burner element to catch spills and debris. Replace if cracked or warped.

This 8 inch drip pan installs under coil burners to catch spills and protect your cooktop. Replace cracked, rusted, or heavily stained pans to restore appearance.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

This plastic terminal block insulator protects the dryer's power terminal area by covering exposed connections and helping prevent accidental shorts or arcing. Replaces a cracked or melted insulator to restore basic electrical protection at the terminal block. What it does:

• Covers and insulates the terminal block to reduce risk of electrical shorts and arcing
• Keeps wiring routed and separated at the power connection point
• Helps prevent damage from heat or contact that can lead to melting or sparking
• Commonly replaced when the original insulator is cracked, burned, or deformed

• Always disconnect power (unplug or shut off house circuit) before servicing electrical components.
• Inspect terminal block and wiring for heat damage; replace damaged wires or terminals as needed.
• Ensure terminals are cool and dry before reinstalling the insulator; seat it fully over the block for proper protection.

Replacement 6-32 x 3/8" screw secures panels, brackets, and trim pieces on appliances. Restores proper fastening when original screws are lost or stripped.

For the complete terminal block kit order 12001676.

This electrical connection kit provides secure terminals where your range's surface heating elements plug into the cooktop. It ensures proper electrical contact and power delivery to the burners. Replace when burner elements don't heat properly, connections appear burned, or elements won't stay securely in place.

Burner not heating or works intermittently? This receptacle block connects the heating element to power. Typical DIY repair takes about 1 hour.
