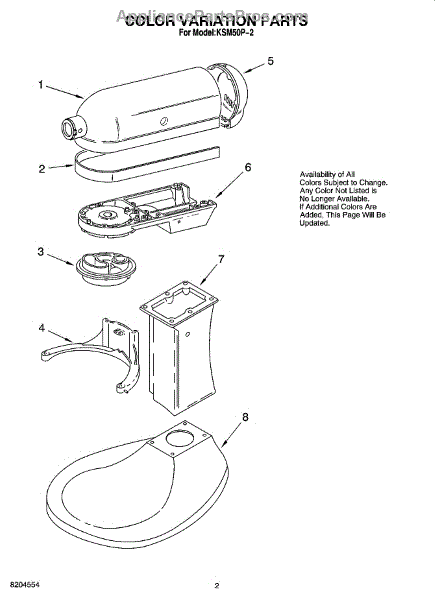

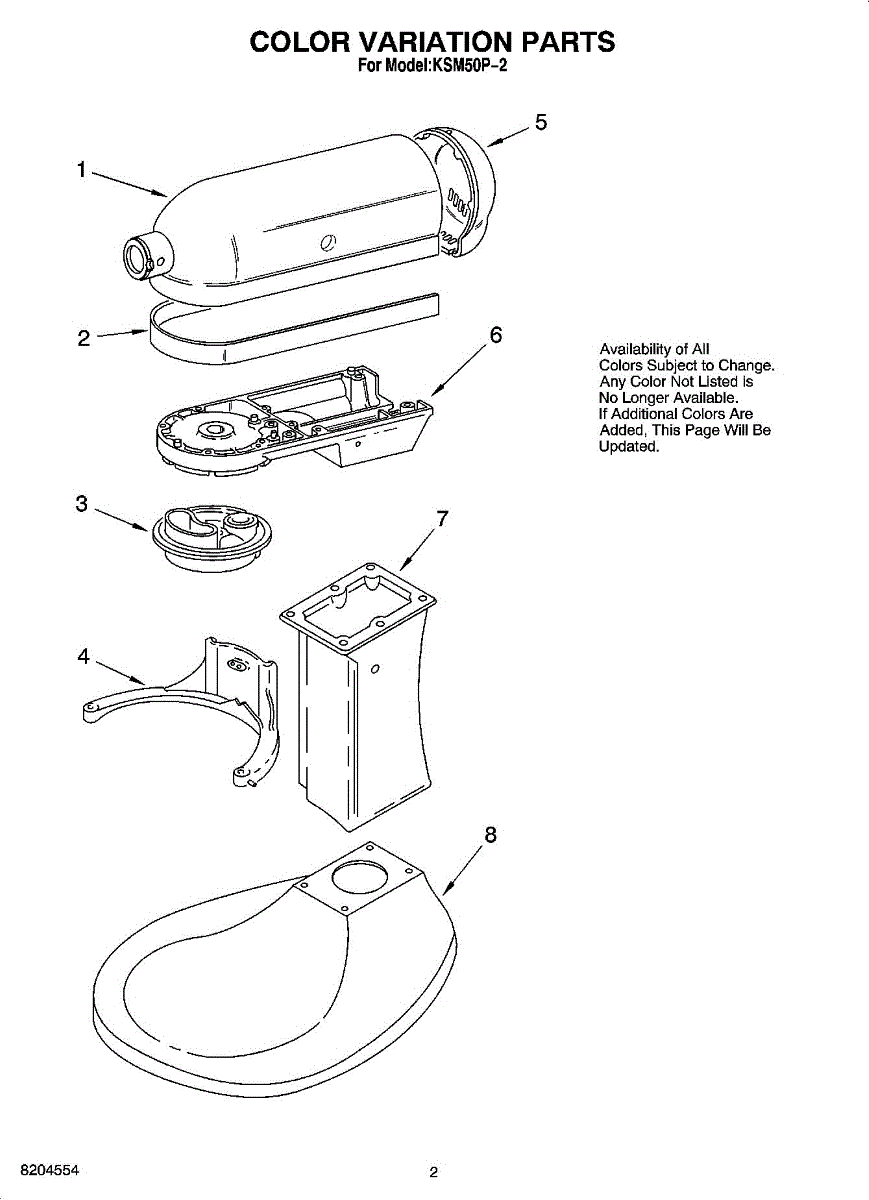

Parts for Kitchenaid KSM50P-2: 01 - Color Variation Parts

This gearcase housing is the molded enclosure that supports and protects the motor drive gears, keeping them aligned for reliable rotation. It restores proper gear engagement and prevents debris from entering the drive area. What it does:

• Houses and positions the motor drive gears so the drive system turns smoothly
• Protects internal gears from lint, dust, and moisture that can cause wear or jamming
• Helps maintain correct gear alignment to reduce noise, grinding, or slipping during operation
• Supports the motor/gear assembly for consistent power transfer to the drivetrain

• Install with original fasteners and proper torque to maintain alignment
• Inspect gears, seals, and nearby components; replace any worn parts while housing is accessible
• Disconnect power and follow manufacturer safety procedures before attempting service

Color: White

A replacement support mounting bracket that holds and stabilizes internal components for proper alignment and smooth operation. Restores secure positioning to reduce noise and wear from loose or shifted parts. What it does

• Provides a stable mounting point to keep panels, housings, or assemblies aligned.
• Helps prevent vibration and rattling caused by worn or broken supports.
• Restores correct part spacing to reduce stress on adjacent components.
• Commonly replaced when parts sag, vibrate, or fail to remain securely positioned.

• One replacement support mounting bracket.

• Basic hand tools typically required; follow your appliance's service instructions.
• Disconnect power before starting any repair to avoid shock or injury.
• Inspect surrounding clips, screws, or fasteners and replace if worn.

Color: White

This cabinet base is the lower support panel that mounts under the appliance to protect internal components and help stabilize the unit. It provides a finished look while covering hookups and wiring at the bottom. What it does:

• Covers and protects the appliance's lower components from debris and accidental contact.
• Helps stabilize the appliance and maintain proper alignment with the floor.
• Prevents direct access to wiring, vents, or drains located at the base.
• Visible signs it's needed: cracked, dented, missing, or loose cabinet base; bottom panel gaps exposing components.

• One cabinet base panel.

• Disconnect power (and water, if applicable) before beginning any work.
• Use two people for removal/installation to avoid damage and injury.
• Remove any kickplate or access panels, then unfasten mounting screws and retainers.
• Align base, secure fasteners, and ensure appliance sits level before returning to service.
