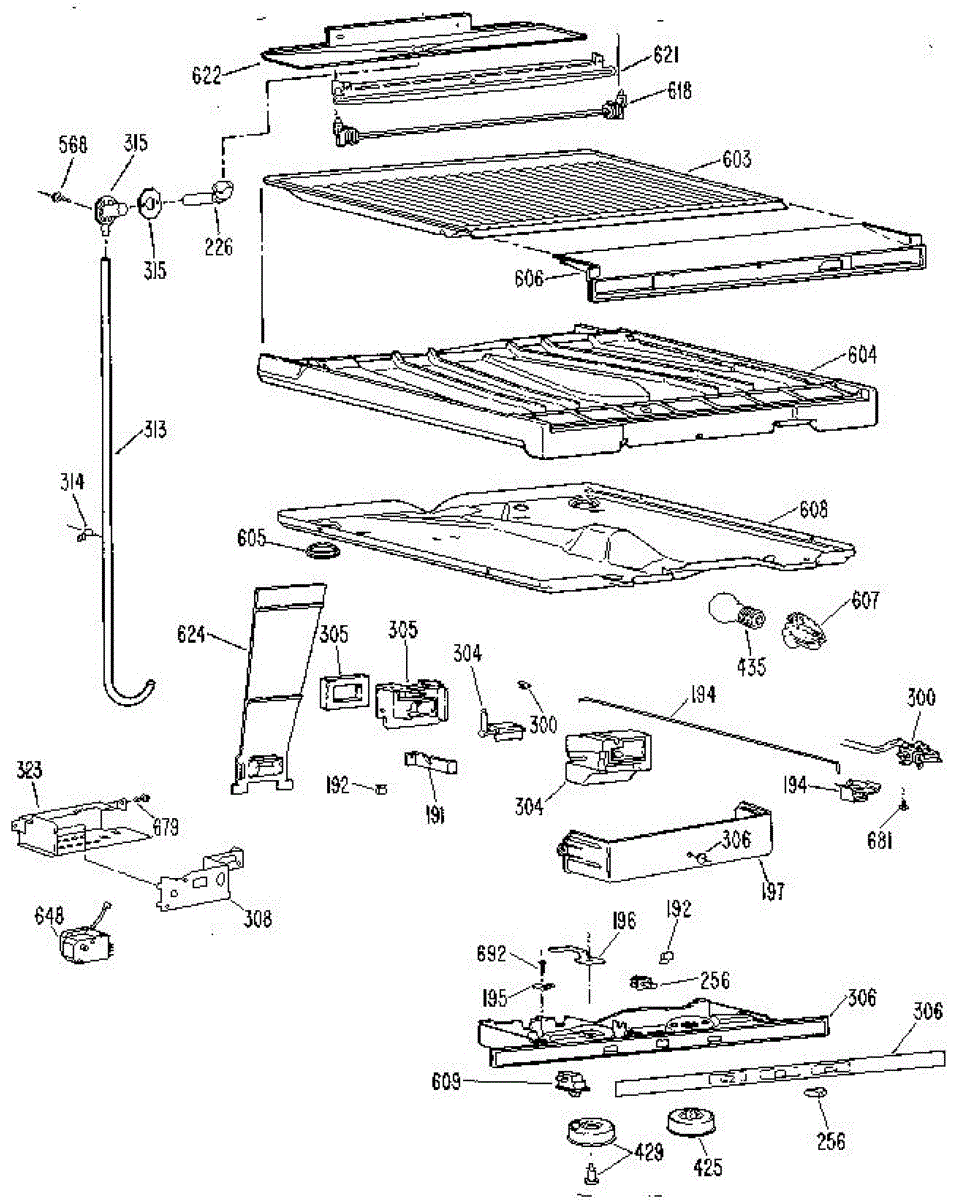

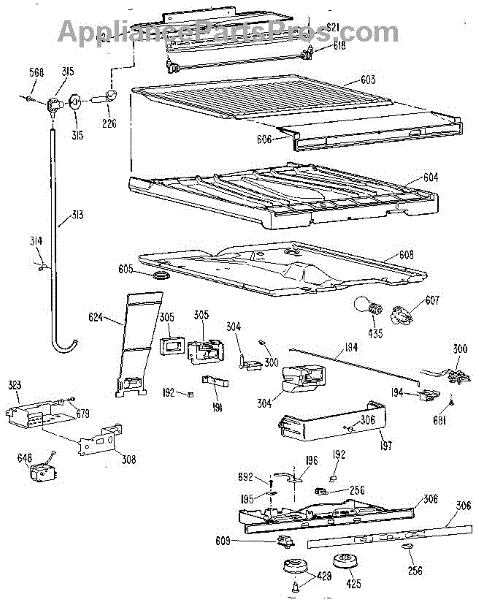

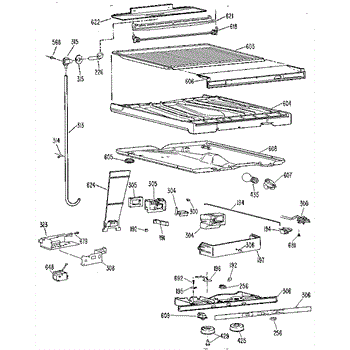

Parts for Kenmore 363.9715683 (3639715683, 363 9715683): Compartment Separator Parts

This part has been discontinued by the manufacturer and is no longer available.

Defrost heater that melts frost from the evaporator coil so the refrigerator can maintain efficient cooling. Replacing a failed heater restores normal defrost cycles and helps prevent ice buildup that blocks airflow. What it does:

• Heats the evaporator coil during the defrost cycle to remove frost and ice buildup.
• Restores proper airflow and cooling when ice accumulation was restricting the evaporator.
• Common symptoms of a failing heater: visible frost or ice on the evaporator, freezer running warm, or extended run times.
• Works with the appliance's defrost thermostat and control to complete the defrost cycle.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Handle the heating element carefully; avoid bending or damaging the coil or terminals.
• Verify the part number matches your appliance before installation.
• If other defrost components (thermostat, control board, sensors) show signs of failure, inspect and replace them as needed.

This mounting bracket secures the defrost heater assembly in the freezer evaporator area, keeping the heater properly positioned so the defrost system can remove frost buildup and maintain efficient cooling. What it does:

• Holds the defrost heater in place so the heater makes correct contact with the evaporator
• Prevents the heater from shifting, rattling, or touching sensitive components
• Helps ensure consistent defrost cycles and reduces excessive frost buildup

• Disconnect power before accessing the evaporator compartment or performing repairs
• Access may require removing the freezer evaporator cover/panels; keep track of screws and clips
• Inspect surrounding wiring and the heater assembly while replacing the bracket

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This screw fastens appliance panels and components to keep assemblies secure and reduce movement or vibration. A simple replacement part that restores proper fit and helps stop rattling or loose parts. What it does

• Secures panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces vibration or rattling caused by missing or stripped screws
• Provides a direct, OEM-compatible replacement for worn or lost fasteners
• Used anywhere a matching screw is specified on the original equipment

• One screw

• Disconnect power or unplug the appliance before starting any repair
• Use the correct driver bit to avoid stripping the head
• Thread carefully and tighten until snug; avoid over-tightening which can strip threads or crack panels
• Keep removed screws so you can match length and thread if replacing multiple hardware pieces

Please note: You may also need to order an adapter. For the adapter to convert the male connector from rectangular to oval use part number WR29X10049. Water valve in kit is part# WR57X10033.
