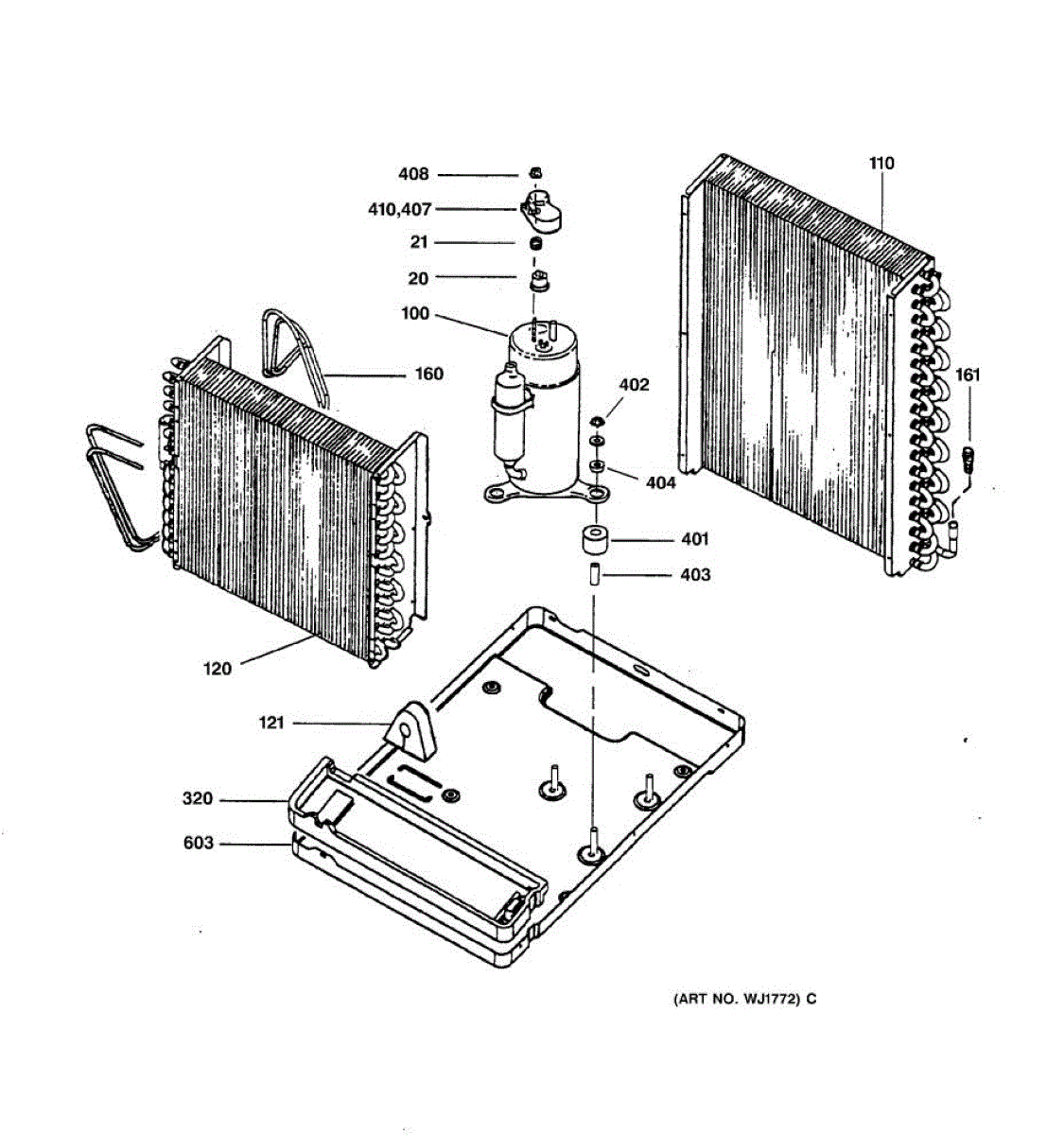

Parts for Ge AVX07FBS1: 03 - Section3 Parts

This condenser coil assembly removes heat from the refrigeration system so the appliance can cool efficiently. Replacing a damaged or corroded condenser helps restore normal cooling performance and prevents compressor overheating. What it does:

• Transfers heat from the refrigerant to the surrounding air so the system can condense and cycle properly
• Helps maintain proper operating temperature and reduces compressor run time when working correctly
• Symptoms of a failing condenser: refrigerator running continuously, warm interior, or visible bent/damaged coils
• Can become clogged with dust and debris, reducing cooling efficiency and airflow

• Disconnect power to the appliance before starting work to avoid electrical shock
• Access panels or kick plates must be removed; support the unit or compressor as needed while removing the coil
• Take care with sharp sheet-metal edges and coil fins to avoid injury or damage

This snubber tube cushions and isolates a 3/8" inner-diameter refrigerant/water line to help reduce vibration and protect the line from wear. It's a small replacement tube used where line cushioning or spacing is required. What it does:

• Provides vibration damping and spacing for a 3/8" I.D. line to reduce wear on fittings and connections
• Helps limit noise caused by line contact or compressor vibration
• Protects tubing from chafing where lines pass through brackets or bulkheads
• Can assist in maintaining secure line routing to prevent stress on joints

• Disconnect power and any related systems (water, refrigerant, gas) before beginning work.
• Trim and fit the tube to route lines without kinking; ensure secure mounting and proper clearance.
• Inspect surrounding lines and fittings for wear or damage and replace if needed.

This small flat washer fits over a .344" shaft and provides spacing and load distribution to protect mating parts and fasteners. It's a simple replacement to restore correct clearances and reduce wear. What it does:

• Provides a corrosion-resistant bearing surface and even load distribution for bolts or shafts
• Maintains proper spacing to prevent rubbing or misalignment of moving parts
• Helps reduce vibration and noise caused by loose or worn hardware
• Prevents premature wear of mating components by spreading clamping force

• Disconnect power and water and follow all safety precautions before servicing the appliance
• Confirm correct orientation, size, and seating before tightening fasteners
• Do not over-tighten; snug to manufacturer torque specifications if available
• Inspect surrounding components (shaft, fastener, mating surfaces) and replace any damaged hardware

A small insulating cap that protects appliance electrical terminal nuts from accidental contact and shorts. Keeps wiring connections covered to reduce shock and prevent debris or moisture from reaching the terminal area. What it does:

• Covers and insulates a terminal nut to help prevent accidental electrical contact and shorting.
• Protects terminals from dust, moisture, and debris that can contribute to corrosion or poor connections.
• Helps maintain a safer service area around high-voltage terminals during normal use.
• Commonly used where a protective cap is needed on appliance terminal blocks or compressor connections.

• One terminal nut cover

• Only install when appliance power is fully disconnected at the breaker or unplugged.
• Fits over the terminal nut; push on until seated—no special tools typically required.
• Inspect terminal and fastener for damage or corrosion before covering; replace underlying hardware if compromised.
