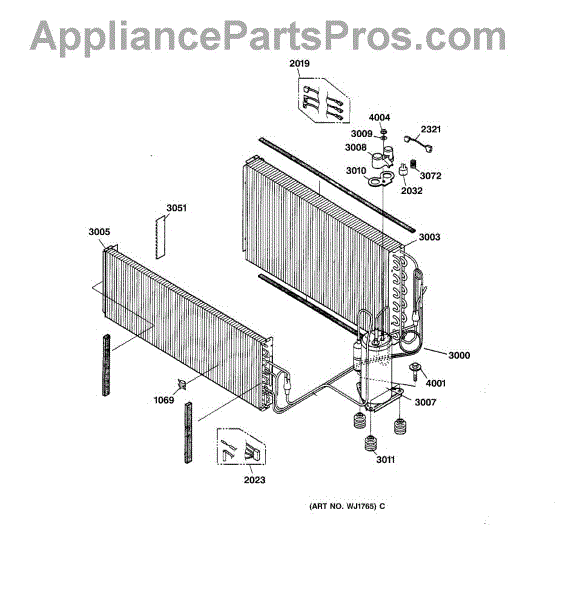

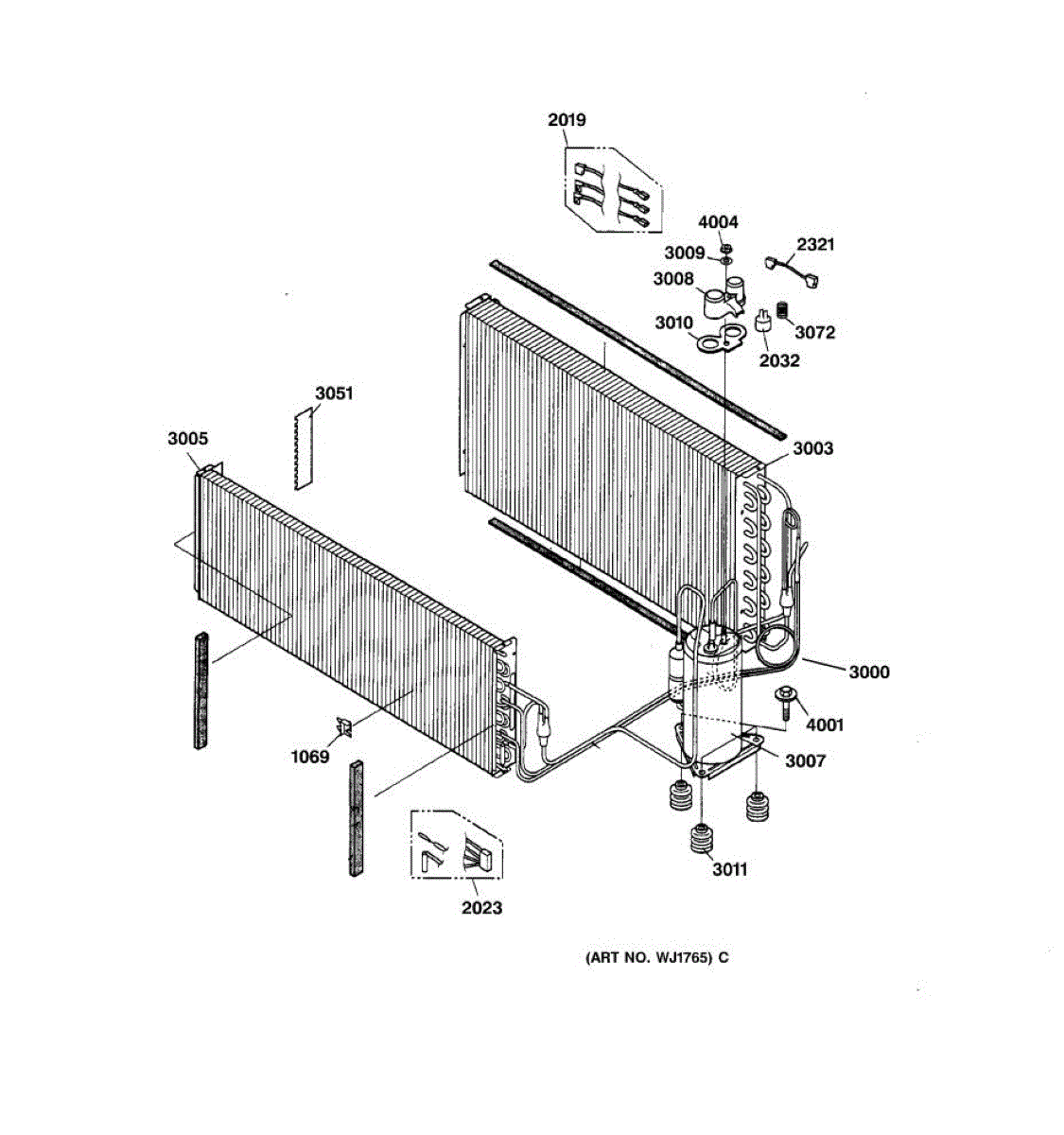

Parts for Ge AZ22E12E3CM1: 04 - Section4 Parts

This evaporator assembly circulates refrigerant and absorbs heat inside the freezer compartment to maintain proper cold temperatures. Replaces a damaged or corroded evaporator to restore normal cooling performance and reduce frost buildup. What it does

• Acts as the refrigerant coil where cold is produced for the freezer compartment
• Removes heat from the freezer air so the appliance can maintain set temperature
• Commonly replaced for excessive frost/ice, reduced cooling, or visible coil damage
• Works with the appliance's defrost system to prevent frost accumulation

• One evaporator assembly as shown

• Disconnect power before starting work; follow all safety precautions
• Access requires removing interior freezer panels; expect refrigerant-system connections to be present
• Handle evaporator fins carefully to avoid damage; check and replace any damaged gaskets or seals during reassembly

A rubber compressor cushion that isolates the compressor from the refrigerator chassis to reduce vibration and prevent metal-on-metal contact. Replaces worn or missing cushions to help minimize noise and vibration transfer. What it does:

• Cushions the compressor to dampen vibration and reduce rattling or buzzing noises.
• Keeps the compressor from directly contacting the cabinet, preventing wear and chafing.
• Helps maintain proper compressor positioning and reduces stress on mounting components.
• Common symptom: increased compressor noise or vibration, or visible worn/deteriorated cushion.

• One compressor cushion (rubber mount).

• Disconnect power to the appliance before starting any repair.
• Support the compressor or secure the unit when removing/replacing mounts to avoid strain.
• Remove the old cushion and press the new cushion into place; no refrigerant handling required.
• Use basic hand tools and wear gloves.
