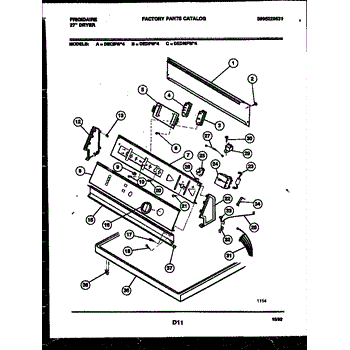

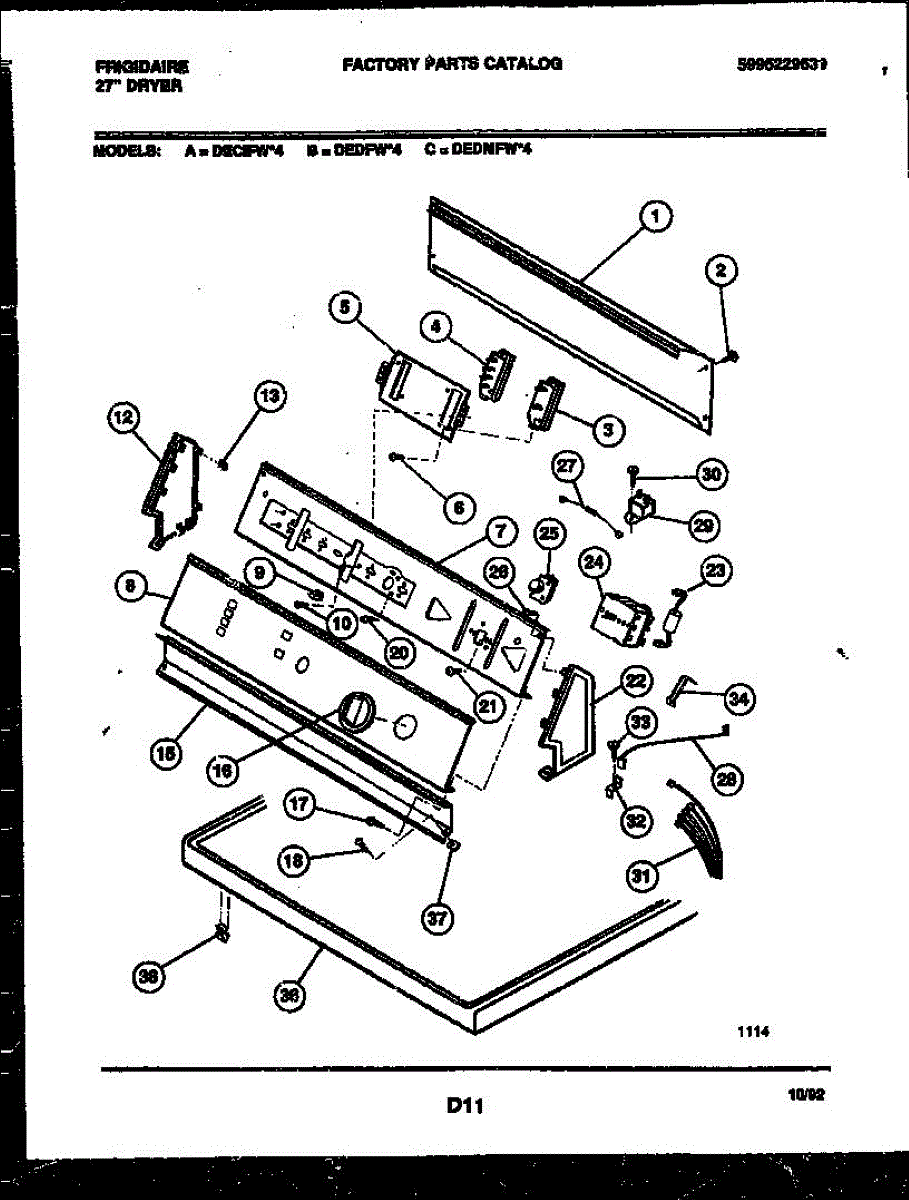

Parts for Frigidaire DEDMFL4: 04 - Console And Control Parts

This part has been discontinued by the manufacturer and is no longer available.

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip

This part has been discontinued by the manufacturer and is no longer available.

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

The Dryer Timer is an OEM part for Frigidaire dryers. It is responsible for controlling the drying cycles by regulating the amount of time the dryer runs. The timer ensures that clothes are dried according to the selected settings, contributing to efficient and effective drying performance.

Causes of a bad timer can include electrical issues such as a short circuit, worn-out internal components due to frequent use, or exposure to moisture that can damage the timer mechanism.

Symptoms of a bad Dryer Timer include:

• The dryer not advancing through cycles
• The dryer running continuously without shutting off
• Inconsistent drying times
• The timer knob not turning or feeling loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A replacement mounting screw used to secure components on compatible Frigidaire appliances. This genuine-style fastener restores proper fit where the original screw is missing, stripped, or damaged for safe operation. What it does:

• Secures trim, panels, brackets, or components to prevent rattling and misalignment
• Restores a proper mechanical connection when the original screw is lost or worn
• Helps eliminate vibration noise caused by loose fasteners
• Compatible with specific Frigidaire assemblies that use this style of screw

• Screw only

• Use the correct screw location and size—do not force or overtighten to avoid stripping threads or cracking plastic parts
• Turn off power or disconnect appliance from power source before accessing internal components
• Wear safety glasses and handle small parts carefully to avoid injury or loss

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit
