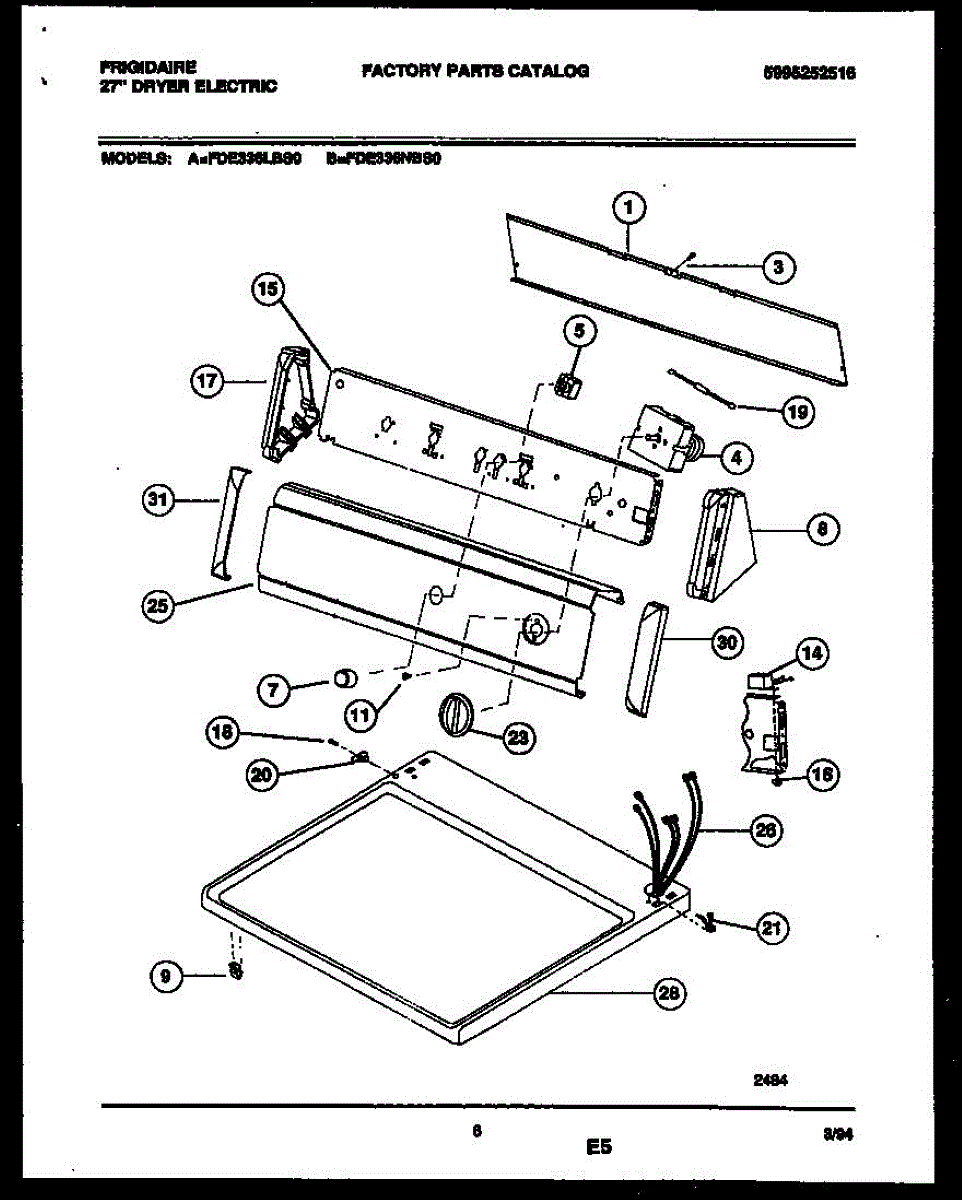

Parts for Frigidaire FDE336NBS0: 04 - Console And Control Parts

The dryer timer power resistor regulates electrical current to the timer motor in mechanical timer systems. Replace when the timer fails to advance properly, gets stuck in cycles, or the dryer runs continuously without stopping.

Pan head mounting screw for dryers. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

Dryer won't advance through cycles or stops mid-cycle? This electromechanical timer controls cycle sequencing and duration. Moderate DIY repair.

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

Color: white. It measures about 3 inches in diameter.

This top panel is the painted metal cover that sits on the range's upper surface, restoring a clean appearance and protecting internal components from spills and heat. It replaces worn, dented, or discolored top covers. What it does:

• Covers and protects the range's front/top area and underlying components from spills and debris
• Restores the appliance's finished appearance after dents, chips, or paint wear
• Helps maintain proper spacing for controls and trim pieces
• Stops light cosmetic drafts and prevents direct access to internal wiring

• Disconnect power to the appliance before beginning any work.
• Remove cooktop or control trim as needed to access mounting screws; keep hardware for re-use.
• Support the panel during removal and installation to avoid scratching surrounding surfaces.

A decorative cover piece that caps the left end of the washer's control panel or cabinet. Replace if the cover is cracked, missing, or doesn't fit properly, affecting the appliance's appearance.
