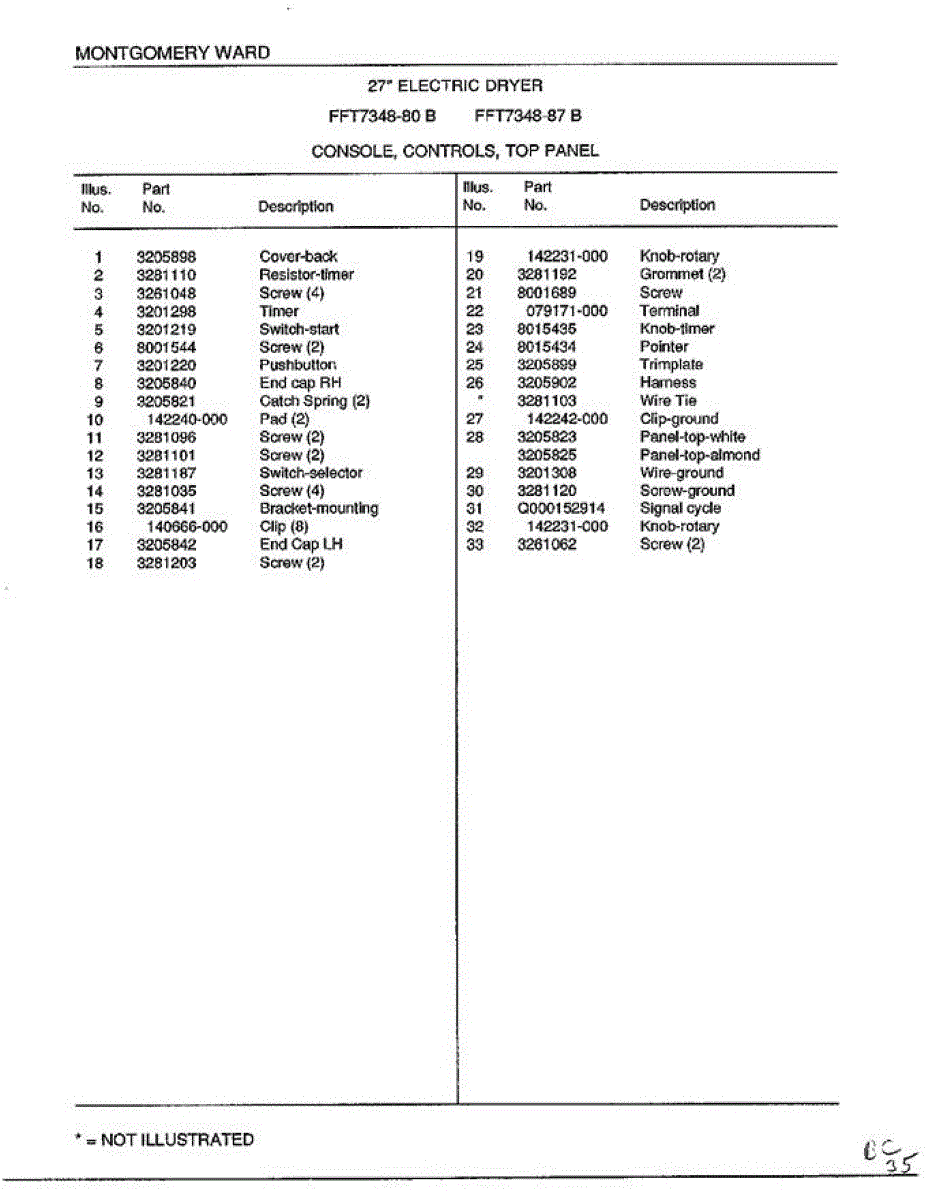

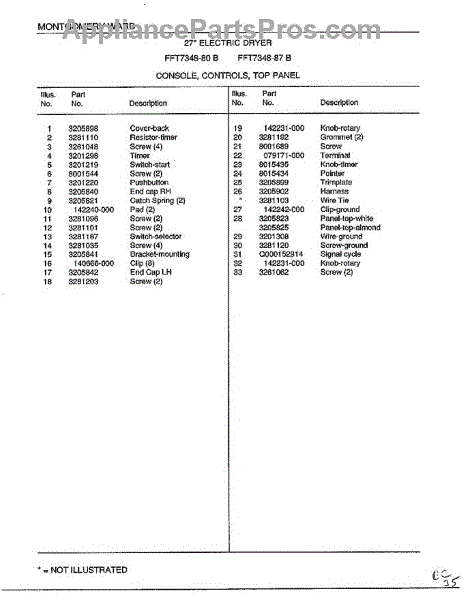

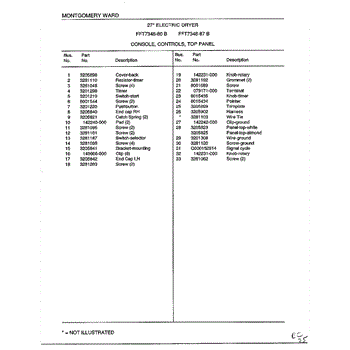

Parts for Frigidaire 7348B: Console, Controls, Top Panel Page 2 Parts

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

This is a replacement mounting screw used to secure a solenoid valve or solenoid assembly in appliances. It provides a durable fastening point so the solenoid stays properly positioned and functions reliably. What it does:

• Secures solenoid valves or solenoid assemblies to the appliance frame or bracket
• Helps maintain correct alignment for valve operation and connections
• Prevents loosening from vibration or normal use
• Suitable where the OEM fastener is required for a proper fit

• Use the matching screw size and thread pattern listed in the appliance parts diagram
• Tighten to snug only; overtightening can strip threads or damage the solenoid housing
• Disconnect power and shut off water before servicing the appliance
• If other fasteners or damaged components are present, inspect and replace as needed

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip

This top panel is the painted metal cover that sits on the range's upper surface, restoring a clean appearance and protecting internal components from spills and heat. It replaces worn, dented, or discolored top covers. What it does:

• Covers and protects the range's front/top area and underlying components from spills and debris
• Restores the appliance's finished appearance after dents, chips, or paint wear
• Helps maintain proper spacing for controls and trim pieces
• Stops light cosmetic drafts and prevents direct access to internal wiring

• Disconnect power to the appliance before beginning any work.
• Remove cooktop or control trim as needed to access mounting screws; keep hardware for re-use.
• Support the panel during removal and installation to avoid scratching surrounding surfaces.

This ground wire provides a secure electrical ground connection for your appliance's chassis to help prevent electrical shock and ensure safe operation. It replaces a damaged or missing grounding lead. What it does:

• Connects the appliance chassis to the grounding point to safely dissipate stray current
• Restores proper grounding after corrosion, fraying, or accidental damage
• Helps eliminate intermittent electrical faults caused by a poor ground
• Works where a single grounding lead is required for the component or cabinet

• One ground wire

• Turn off and unplug the appliance (or disconnect power at the breaker) before starting any work
• Verify the original grounding point and wire routing before removal to match reinstallation
• Use appropriate tools to remove and reinstall fasteners; ensure tight, clean metal-to-metal contact
