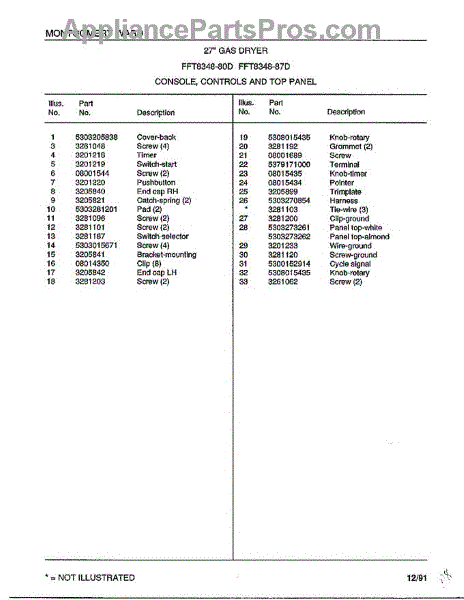

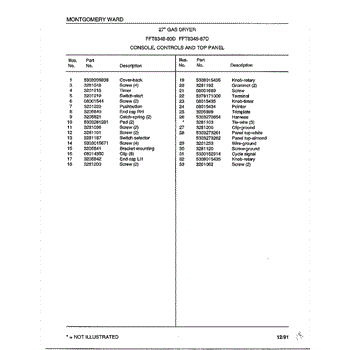

Parts for Frigidaire 8348-80D: Console, Controls And Top Panel Page 2 Parts

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

This is a replacement mounting screw used to secure a solenoid valve or solenoid assembly in appliances. It provides a durable fastening point so the solenoid stays properly positioned and functions reliably. What it does:

• Secures solenoid valves or solenoid assemblies to the appliance frame or bracket
• Helps maintain correct alignment for valve operation and connections
• Prevents loosening from vibration or normal use
• Suitable where the OEM fastener is required for a proper fit

• Use the matching screw size and thread pattern listed in the appliance parts diagram
• Tighten to snug only; overtightening can strip threads or damage the solenoid housing
• Disconnect power and shut off water before servicing the appliance
• If other fasteners or damaged components are present, inspect and replace as needed

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

This part has been discontinued by the manufacturer and is no longer available.

This top panel is the painted metal cover that sits on the range's upper surface, restoring a clean appearance and protecting internal components from spills and heat. It replaces worn, dented, or discolored top covers. What it does:

• Covers and protects the range's front/top area and underlying components from spills and debris
• Restores the appliance's finished appearance after dents, chips, or paint wear
• Helps maintain proper spacing for controls and trim pieces
• Stops light cosmetic drafts and prevents direct access to internal wiring

• Disconnect power to the appliance before beginning any work.
• Remove cooktop or control trim as needed to access mounting screws; keep hardware for re-use.
• Support the panel during removal and installation to avoid scratching surrounding surfaces.

This part has been discontinued by the manufacturer and is no longer available.
