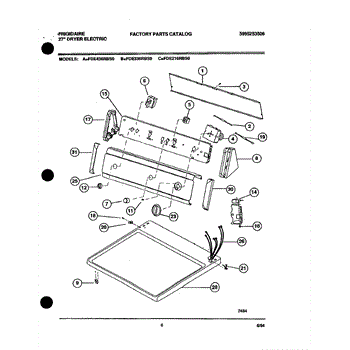

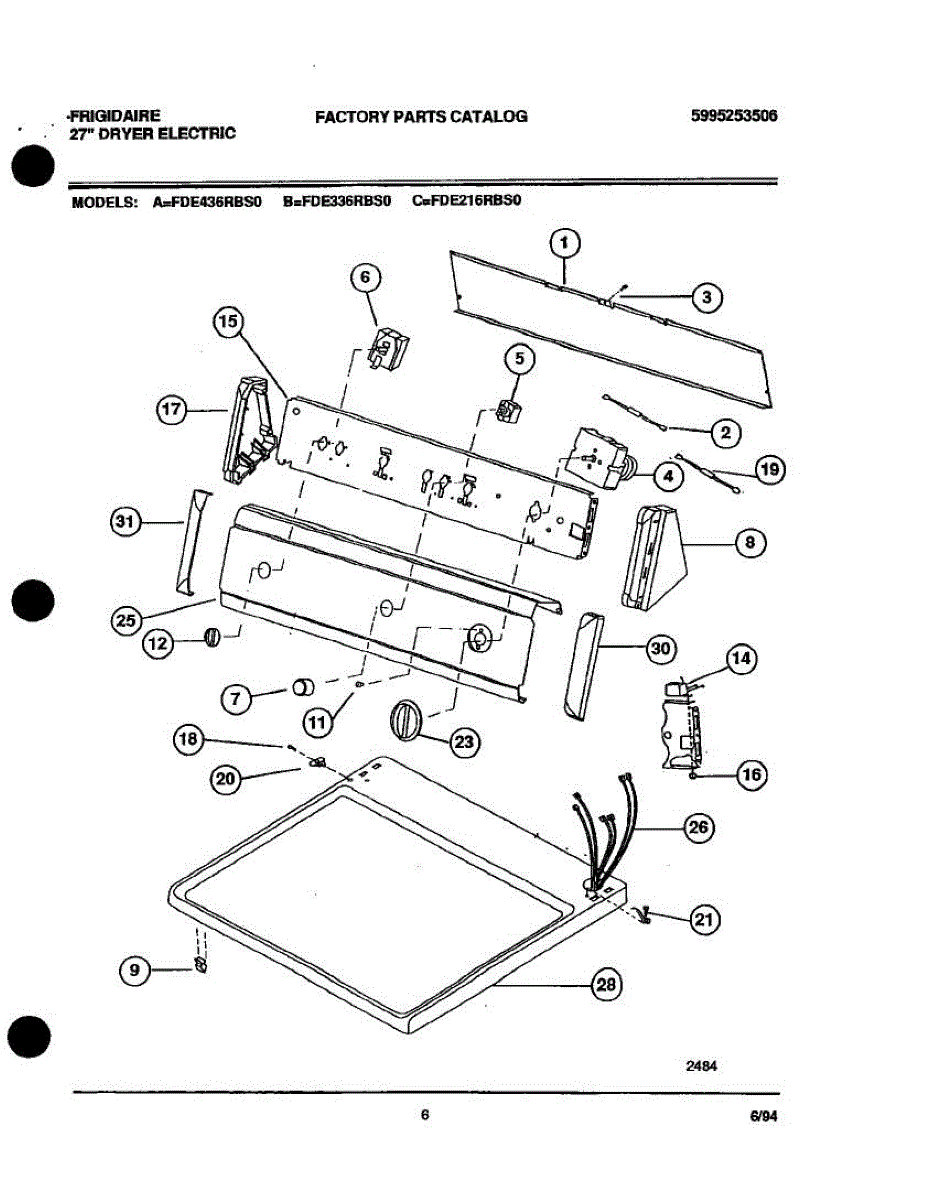

Parts for Frigidaire FDE336RBS0: 04 - Console And Control Parts

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

The Dryer Timer is an OEM part for Frigidaire dryers. It is responsible for controlling the drying cycles by regulating the amount of time the dryer runs. The timer ensures that clothes are dried according to the selected settings, contributing to efficient and effective drying performance.

Causes of a bad timer can include electrical issues such as a short circuit, worn-out internal components due to frequent use, or exposure to moisture that can damage the timer mechanism.

Symptoms of a bad Dryer Timer include:

• The dryer not advancing through cycles
• The dryer running continuously without shutting off
• Inconsistent drying times
• The timer knob not turning or feeling loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This right-side almond end cap restores the finished look of the appliance trim and protects the exposed end of the handle/door trim from wear. It provides a neat, color-matched replacement for damaged or missing trim. What it does:

• Covers and protects the exposed end of the handle or door trim to prevent further damage
• Restores a finished, color-matched appearance for almond-colored appliances
• Helps keep dirt and moisture out of the trim end, preserving fit and alignment
• Replaces cracked, broken, faded, or missing end caps that affect appearance

• Disconnect power or unplug the appliance before beginning work.
• Remove any screws or trim pieces holding the old end cap in place; the cap typically snaps or fits into position.
• Align the new cap and press or fasten per the original mounting method; do not force or overtighten fasteners.
• If mounting clips or fasteners are damaged, replace them before installing the new cap.

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

Color: white. It measures about 3 inches in diameter.

This top panel is the painted metal cover that sits on the range's upper surface, restoring a clean appearance and protecting internal components from spills and heat. It replaces worn, dented, or discolored top covers. What it does:

• Covers and protects the range's front/top area and underlying components from spills and debris
• Restores the appliance's finished appearance after dents, chips, or paint wear
• Helps maintain proper spacing for controls and trim pieces
• Stops light cosmetic drafts and prevents direct access to internal wiring

• Disconnect power to the appliance before beginning any work.
• Remove cooktop or control trim as needed to access mounting screws; keep hardware for re-use.
• Support the panel during removal and installation to avoid scratching surrounding surfaces.
