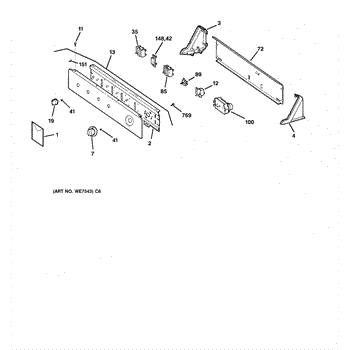

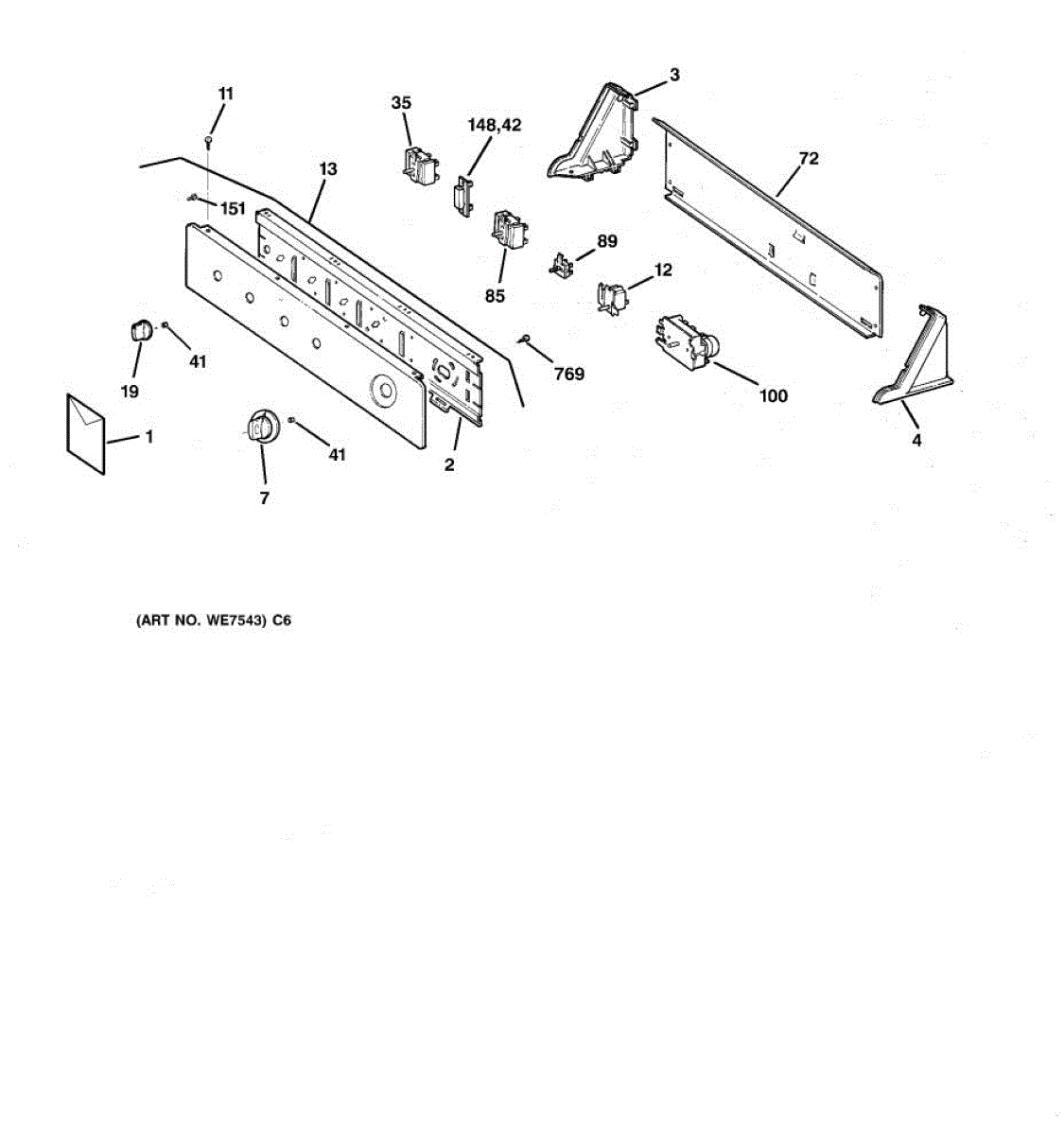

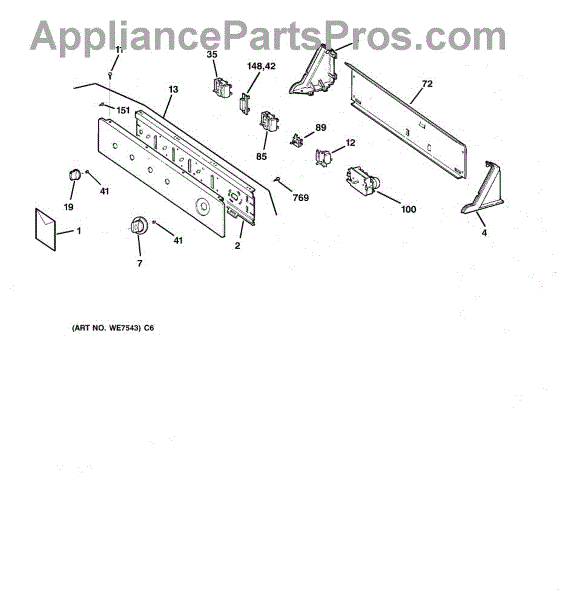

Parts for Ge DWLR473ET1AA: 01 - Control Assembly Parts

Color: Almond. This is the left side end cap. For right side use WE19X1003.

Color: Almond. This is the right side end cap. For left side use WE19X1002.

Color: Almond. For white order WE1X1263. Insert included.

Size: 8-18 AB FLT 5/8.

The Control Knob and Clip is an OEM part for GE washing machines and dryers. It attaches directly to the control shaft and is used to set the machine's cycles and settings. This knob allows for easy adjustment of washing or drying operations, making it a user-friendly interface for managing the appliance's functions.

Symptoms of a bad Control Knob and Clip include:

• The knob failing to engage the control shaft, resulting in no response when turned.
• Cracks or breaks in the knob, making it difficult to grasp or turn.
• The knob slipping or spinning freely without changing settings, indicating that the clip may be worn or broken.

Causes of a bad control knob and clip can include physical damage from excessive force, wear and tear from frequent use, or degradation of the materials due to age or environmental factors.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Rotary Start Switch is an OEM replacement part for GE dryers It is responsible for initiating the dryer's operation when the user turns the knob to the desired cycle and presses the start button. The rotary start switch is typically located on the control panel of the dryer, where the user interacts with the various settings and functions.
The GE dryer rotary start switch can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This part fixes the following symptoms:

• The dryer not starting or responding when the start button is pressed
• The start button feeling loose or not engaging properly
• The dryer starts intermittently or only when the start button is held down
• The dryer starts but immediately stops once the start button is released
• The start switch becomes unresponsive or difficult to turn
• The dryer not cycling through the different drying modes or settings

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Size: 8-18 b.

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

The Dryer Drive Belt is an OEM part for GE dryers that connects the motor to the drum, allowing the drum to rotate during the drying cycle. The belt measures approximately 87 inches long and 0.25 inches wide, with 4 ribs.

Over time, the Dryer Drive Belt can wear out or break, leading to the drum not turning.

Symptoms of a bad Dryer Drive Belt include:

• The drum not spinning or rotating
• A squealing or thumping noise coming from the dryer
• The dryer stopping unexpectedly during a cycle

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
