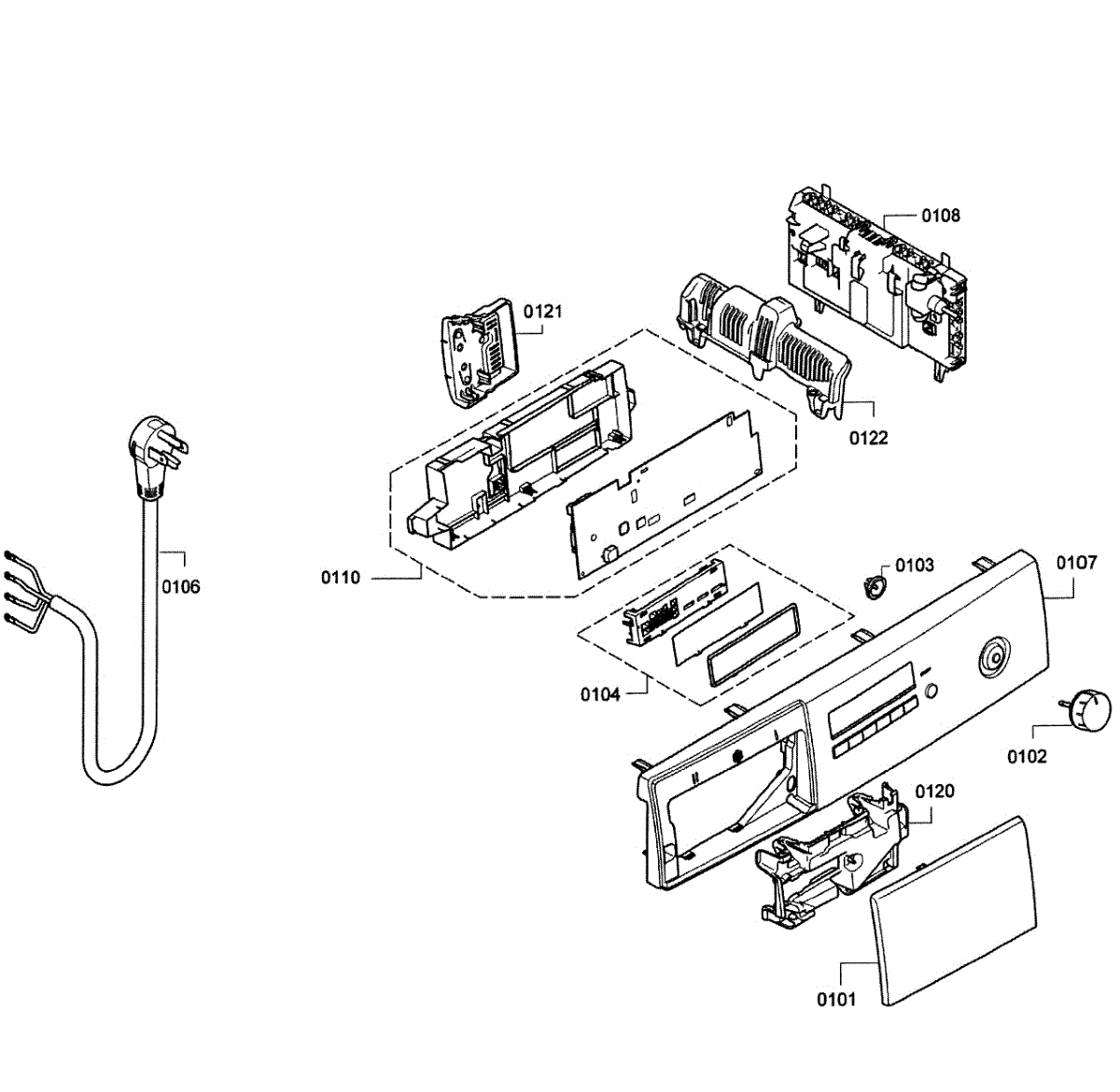

Parts for Bosch WTB86200UC/01: Control Assembly Parts

This molded protective cover houses and shields internal components from moisture, debris and accidental contact, helping keep the appliance safe and functioning. It replaces cracked, broken, or missing covers to restore proper enclosure. What it does

• Protects internal wiring, switches or connectors from water and debris
• Helps prevent accidental contact with energized parts
• Restores a secure enclosure when the original cover is cracked or damaged
• Maintains correct component alignment when used as the original housing

• Disconnect power and water supply before starting any repair
• Installation typically requires basic hand tools (screwdriver); retain fasteners from the original part
• Inspect mating surfaces and seals; replace any damaged gaskets or hardware as needed

This program selector knob replaces a worn or broken control knob so you can choose oven or appliance programs with a secure, easy grip. Restores tactile control for precise setting selection on compatible models. What it does

• Replaces the appliance's program/selector knob used to choose cycles, modes, or temperature programs.
• Restores secure grip and positive detents so settings stay where you place them.
• Commonly fixes symptoms such as a cracked, loose, spinning, or missing knob that prevents selecting programs.
• Works as a direct-fit control interface component; does not affect electronic control logic.

• One program selector knob (single replacement).

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the old knob by pulling straight off the control shaft; align the new knob splines with the shaft and push on until seated.
• Do not force the knob; if it resists, remove and check spline alignment.

This coupling connects the dishwasher motor to the wash pump so the motor can drive the impeller for normal water circulation. Replacing a worn coupling restores drive between motor and pump and helps the dishwasher pump water effectively. What it does:

• Transfers rotational force from the motor to the pump impeller for wash and drain cycles
• Prevents slipping when the motor runs, ensuring consistent water circulation
• Commonly replaced when the motor runs but the pump doesn't turn or performance is reduced
• Can help stop grinding, clunking, or unusual noises coming from the pump area

• Disconnect power to the appliance before any service to avoid shock or injury
• Access usually requires removing the access panel and/or pump housing—follow OEM service instructions
• Inspect the surrounding seals and pump components when replacing the coupling; replace any damaged parts

The Power Cord is an OEM part for Bosch electric dryers. It provides power to heating elements and motor components, enabling all dryer functions. Working seamlessly behind wall panels and the control board, the cable supply facilitates safe and reliable drying performance cycle after cycle.

Symptoms of a bad power cord include:

• The dryer fails to power on or heat
• Flickering lights or control issues
• Burning smells coming from internal areas
• Cable sheathing showing defects or damage

Causes for failure relate to insulation breaks, fraying, or cuts to wiring over time. Accidental impact, animal/insect damage, or general wear and tear may also degrade cable supply integrity.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This fascia panel replaces a damaged or worn console front on your appliance. It covers and supports the user interface, restoring a clean appearance and proper alignment so buttons and displays sit correctly and operate as intended. What it does:

• Serves as the visible control console fascia, providing a finished look
• Supports and aligns buttons, switches, and display windows
• Helps protect the control area from dust and splashes
• Common signs of wear: cracked or broken plastic, loose or misaligned console, worn/illegible graphics, difficulty pressing buttons due to misalignment

• 1 fascia panel

• Disconnect power at the breaker; for gas appliances, also shut off gas
• Remove knobs/trim and mounting screws or clips to release the old panel
• Transfer any reusable clips, brackets, or light pipes from the original panel as needed
• Position and secure the new panel; verify button alignment before restoring power

This power module is the main control board that delivers power and coordinates functions for the appliance, restoring proper electrical control and responsiveness when the original module fails. What it does:

• Supplies and regulates power to the appliance's control circuits
• Enables startup, user inputs, and normal cycle execution
• Commonly replaces modules that cause no power, intermittent power loss, or unresponsive controls
• Helps stop erratic operation or failures tied to a damaged control module

• Disconnect power to the appliance before starting any work to avoid shock or damage
• Handle the board by its edges and avoid touching components or connector pins
• Verify connector alignment and secure mounting; do not force plugs into place

This operating module is the dishwasher user control board that receives button presses and runs the appliance's cycle logic, restoring normal panel operation and cycle selection when the original control fails. What it does

• Interprets touchpad/button inputs and manages start/pause commands
• Controls cycle selection, timers, and display indicators
• Communicates with the main electronic systems to start and stop wash cycles
• Stop responsive panel behavior, cause unresponsive buttons, or prevent cycle initiation when failing

• Disconnect power to the appliance before removing panels or replacing the module
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available
• You may need to remove the control panel or console trim to access the module
