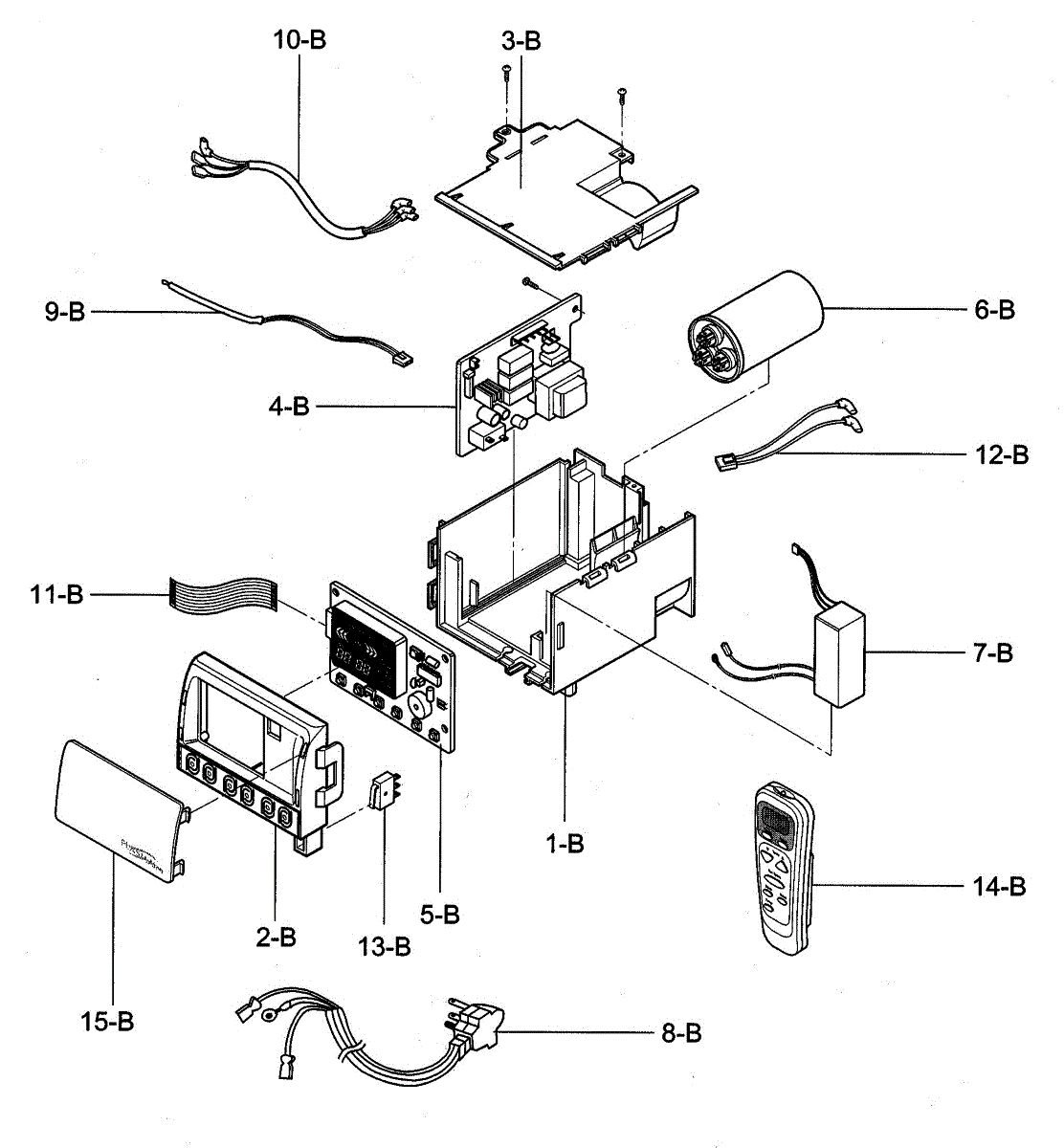

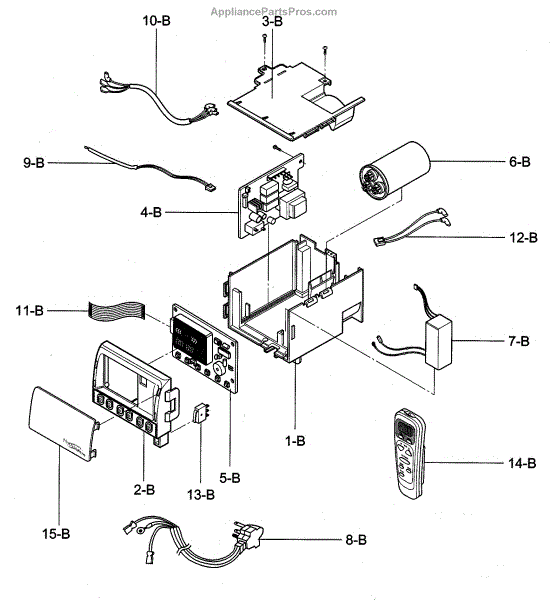

Parts for Kenmore 580.76129200 (58076129200, 580 76129200): Control Box Assy Parts

Location on Diagram

Part Description

Price & Availability

1-B

Control Box

By: Lg

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2-B

Pan Control

By: Lg

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3-B

Cover

By: Lg

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4-B

Pwb(Pcb) Assm.,Main(A

By: Lg

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5-B

Pwb Assy Dc

By: Lg

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6-B

This capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy as needed. Replacing a failing capacitor restores proper motor performance and can stop intermittent operation. What it does:

Provides the electrical phase shift needed for the motor to start and maintain rotation
Commonly linked to symptoms such as humming, motor not starting, intermittent spin, or reduced performance
Supports stable motor operation under load to prevent stalling
Works as a direct-fit electrical component when matching the correct part number

What's included:

One capacitor

Install notes:

Disconnect power to the appliance before servicing to avoid shock
Discharge the capacitor before handling; use insulated tools and follow safety procedures
Inspect wiring and connectors for damage and replace any faulty harnesses
