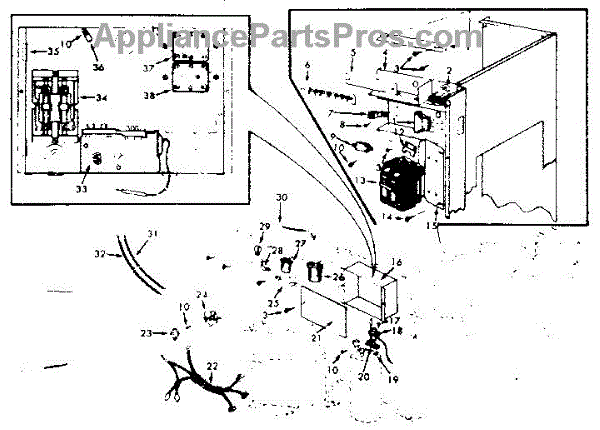

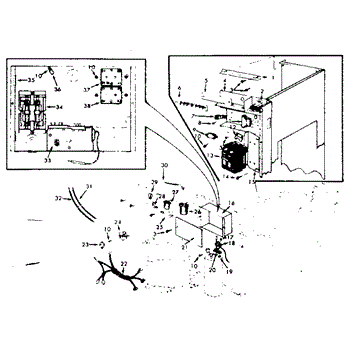

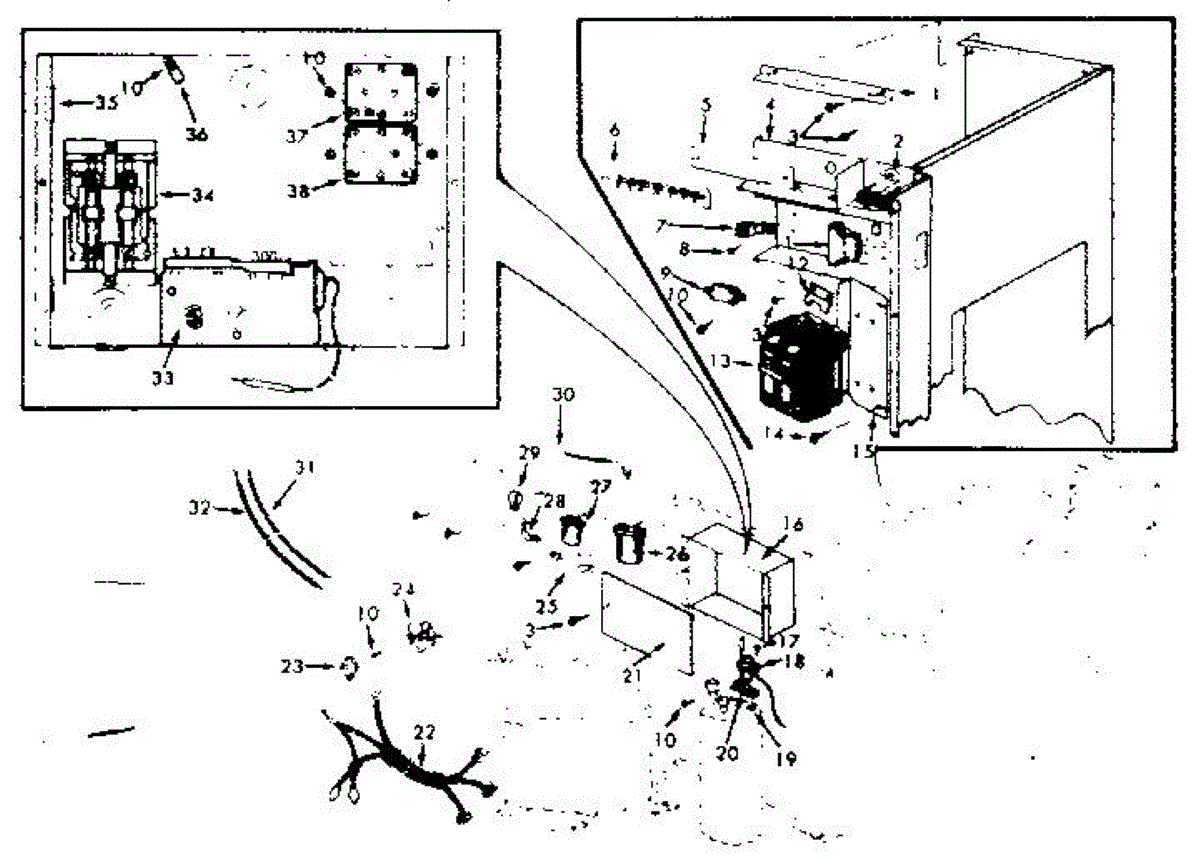

Parts for Kenmore 867.814482 (867814482, 867 814482): Control Box Parts

This oval run capacitor provides the steady-phase shift motors need to run efficiently at 440V, restoring normal motor operation and improving reliability. Use it to replace a failed or weak run capacitor in compatible appliances. What it does:

• Supplies a steady AC phase shift to the motor for continuous operation
• Helps eliminate symptoms like slow motor speed, reduced torque, or intermittent operation
• Supports reliable compressor/fan/motor performance when matched to the original specs
• Works as a direct replacement when the original part is the same physical style and voltage

• Disconnect power to the appliance before beginning service to avoid shock
• Discharge the capacitor before handling; capacitors can hold a charge even when powered off
• Replace with the same voltage, capacitance, and physical configuration as the original

This electromechanical SPDT 24V relay switches a single circuit between two outputs to control motors, valves, or heaters. It provides the reliable on/off switching appliances need to run specific components when commanded. What it does:

• Energizes a 24V coil to open or close the common contact to the normally open or normally closed contact
• Controls motors, pumps, fans, or heating elements when the appliance control board sends a 24V signal
• Common replacement when an appliance component does not start or cycles incorrectly due to a failed relay
• Designed for panel or chassis mounting in appliance control systems

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Verify connector orientation and terminal fit; match wire positions exactly when replacing.
• If soldering or crimping, use appropriate tools and make secure connections to prevent intermittent faults.
