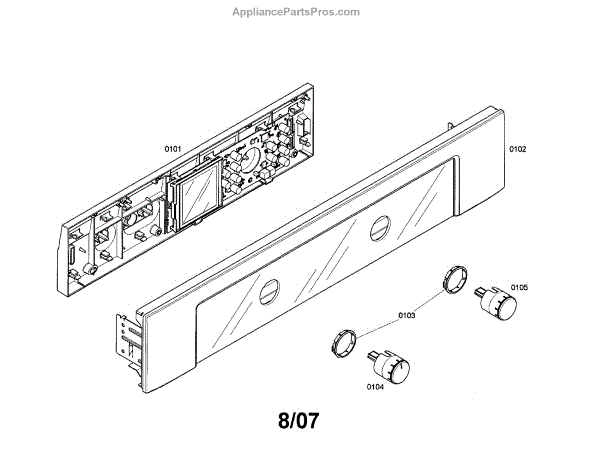

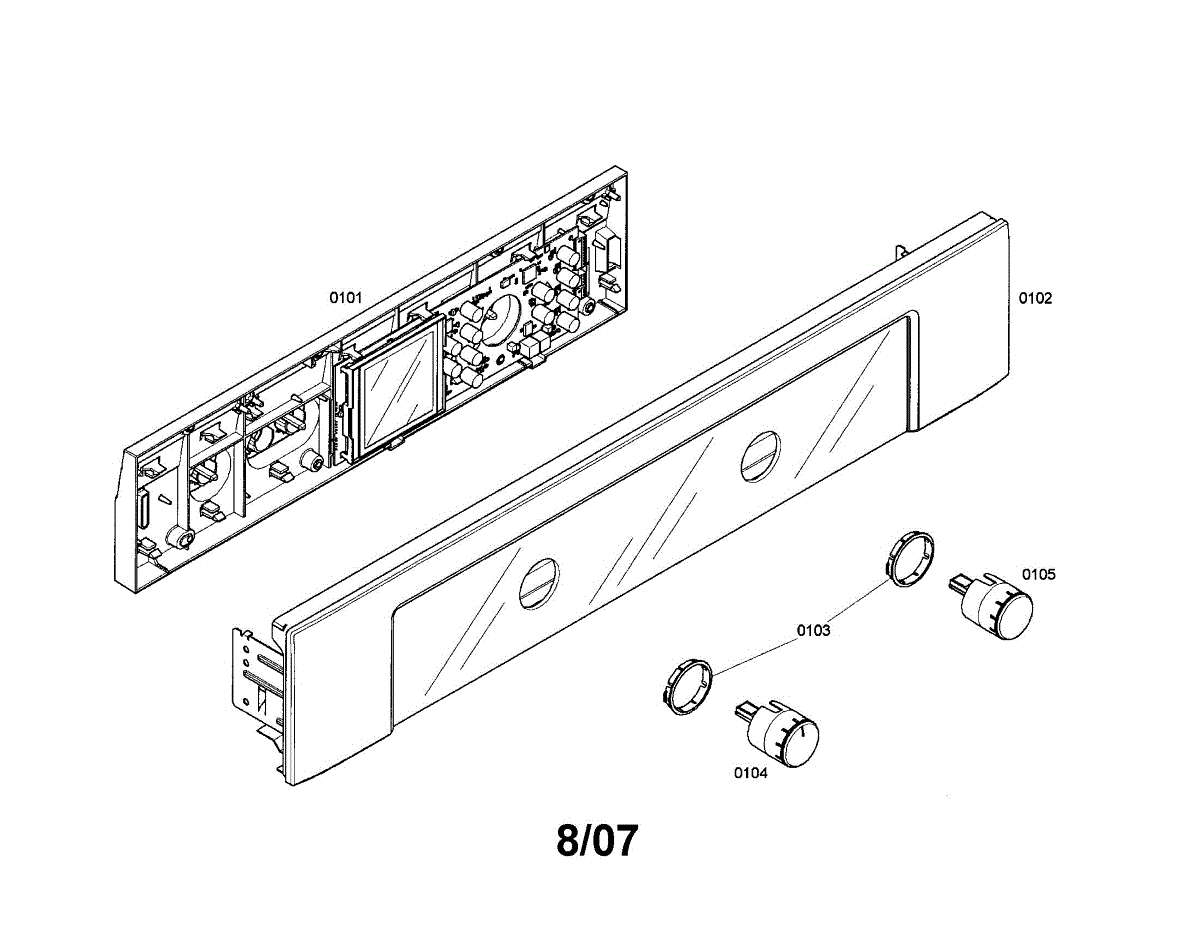

Parts for Bosch HBL5760UC/01: Control Mechanism Parts

This facia panel is the exterior trim that covers and protects your appliance's control area, restoring a clean, finished look and shielding buttons and electronics from spills and wear. It's a direct-fit replacement designed for an exact aesthetic match. What it does:

• Covers and protects the control buttons and display from moisture, grease, and everyday wear
• Restores the appliance's appearance when the original facia is cracked, faded, or damaged
• Provides the visible surface for button labels and indicators so controls remain easy to read and use
• Helps keep underlying electronic components free from debris that can affect operation

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Handle the trim carefully to avoid scratching the finish; use soft tools where needed
• Installation typically requires removing the outer door or control assembly

This replacement control knob restores user control for temperature and power settings on compatible Bosch cooktop and range controls. It provides a secure grip and clear pointer for accurate setting selection. What it does:

• Replaces a cracked, stripped, missing, or worn control knob to restore tactile control.
• Rotates smoothly to select heat or function settings on the appliance control shaft.
• Provides a visible pointer for setting alignment and repeatable adjustments.
• Helps eliminate slipping or poor engagement caused by worn knob splines.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the old knob by pulling straight off the control shaft; align the new knob splines with the shaft and press firmly until fully seated.
• If knob does not seat easily, verify proper alignment—do not force to avoid damaging the control shaft.
• Test all functions after installation.

This cable harness connects key electrical components to restore power and signal flow in the appliance. It replaces a damaged or faulty wiring harness to help return controls and components to normal operation. What it does:

• Carries power and control signals between the control board and components
• Replaces frayed, burned, or broken wires that cause intermittent or no operation
• Common symptoms it can address: appliance won't start, controls unresponsive, intermittent cycles, or error codes related to open/shorted circuits
• Helps ensure secure connector mating and correct signal routing when installed properly

• Disconnect power at the breaker or unplug the appliance before starting any repairs
• Compare the new harness to the old one and follow the appliance wiring diagram for correct routing and connector placement
• Secure connectors fully; avoid sharp bends or pinching the wires during reassembly
