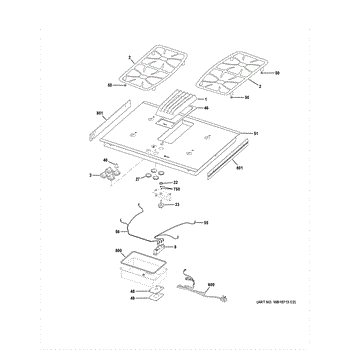

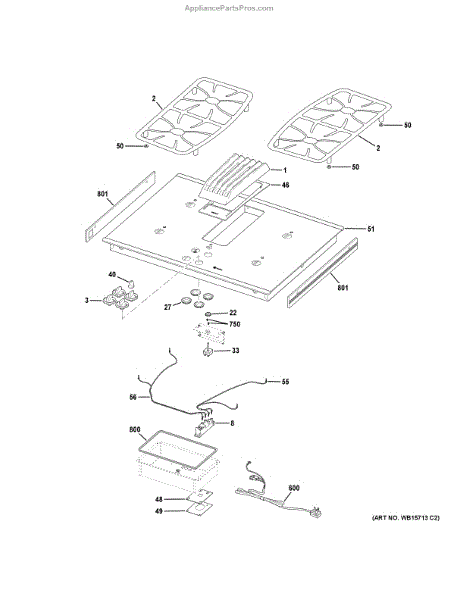

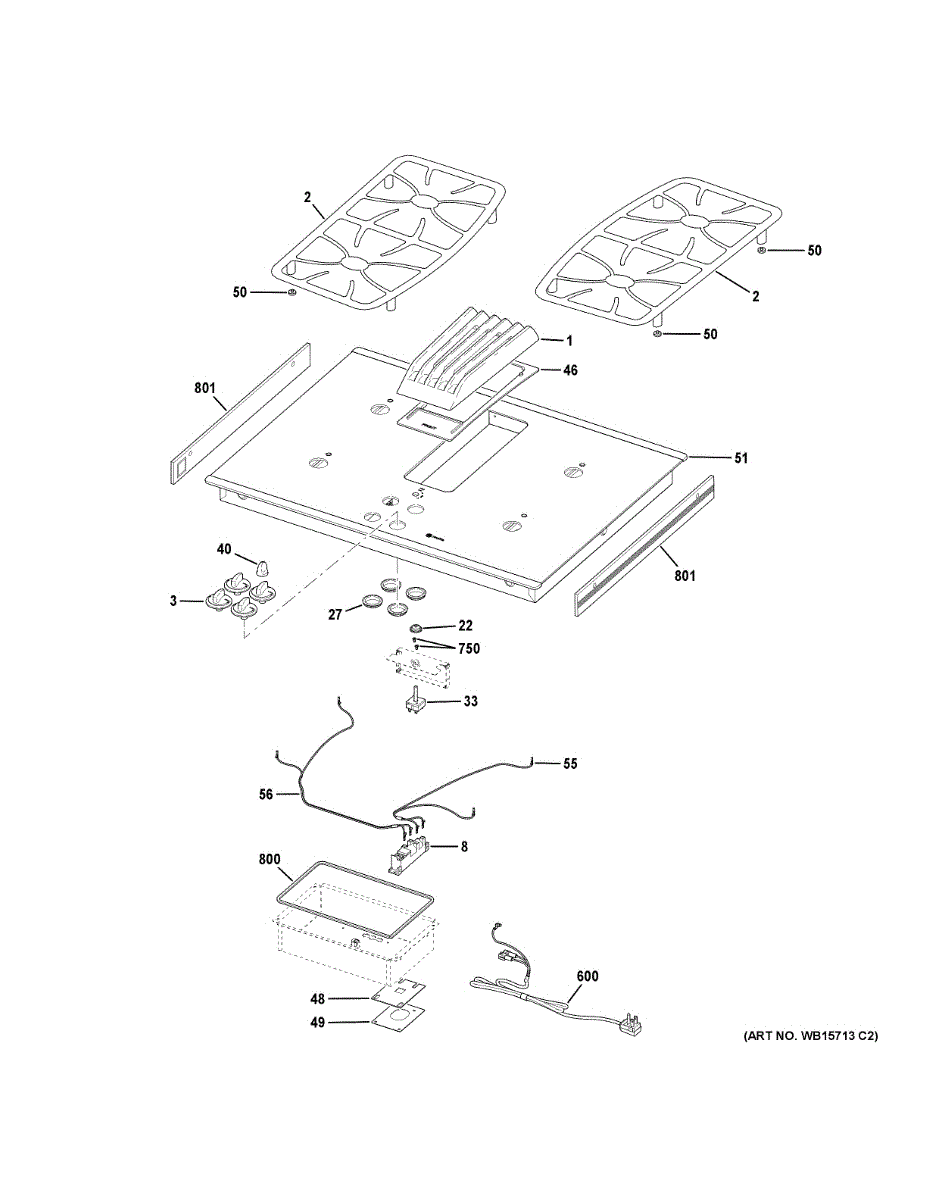

Parts for Ge PGP9830SR1SS: Control Panel & Cooktop Parts

This OEM replacement part is a grate burner for stoves. The grate burner is the black metal frame that is used to support pots and pans for cooking. If the grate burner is damaged to the point of no longer being operable, it will need to be replaced. To replace the grate burner, simply pull out the old grate by lifting it up from the stove. Once removed, set it to the side. Take the new grate burner and place it directly on top of the stove in its correct position. Make sure it is set securely. This genuine replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with General Electric, Hotpoint, and RCA brand appliances.

This glass and shaft seal assembly replaces a damaged oven door glass seal and the shaft seal that helps keep heat and moisture contained. Restores proper sealing to improve oven performance and reduce heat loss. What it does:

• Seals the gap around the oven door glass and shaft to help contain heat and cooking vapors
• Reduces heat transfer and prevents excess moisture buildup near the door area
• Helps maintain consistent oven temperatures by restoring a proper seal
• Commonly replaced when you see visible wear, cracked/brittle seal, or heat leaking from the door edge

• One glass and shaft seal assembly as shown

• Disconnect power to the appliance before beginning any repair
• Handle glass components carefully to avoid breakage or injury; wear work gloves and eye protection
• Basic hand tools are typically required; follow the appliance service manual for disassembly/reassembly steps

This rubber grommet seals the cabinet opening where a water valve or hose passes through, helping prevent leaks and reducing vibration. It's a simple replacement that restores a tight, water-resistant seal around the valve area. What it does

• Provides a cushion and seal around a water valve or hose where it passes through the cabinet wall
• Helps stop drips or minor leaks that travel along the cabinet opening
• Reduces vibration and rattling from the valve or connected lines
• Commonly replaced when the original grommet is cracked, brittle, or missing

• One grommet

• Disconnect power and shut off the water supply before starting any work
• Remove the old grommet and clean the mounting area; push the new grommet into the valve hole until fully seated
• Inspect valve hose alignment and test for leaks after restoring power and water

The Fan Switch is an OEM replacement part for GE cooktops. Measuring approximately 2 inches by 1 inch, this fan switch serves as a component in activating the downdraft fan. The downdraft fan aids in extracting smoke, steam, and odors, promoting a cleaner and fresher cooking environment.

A malfunctioning Fan Switch can be attributed to electrical issues, wear and tear from regular use, or physical damage. These problems can lead to the downdraft fan not activating, resulting in inadequate ventilation and the accumulation of smoke and odors during cooking.

Symptoms of a bad Fan Switch include:

• The downdraft fan failing to activate, leading to poor ventilation
• Accumulation of smoke and odors during cooking
• The switch being unresponsive or failing to maintain the fan’s operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ignitor harness connects the oven's right-side ignitor to the appliance wiring, restoring reliable spark and proper burner ignition. It's a direct-fit harness used where the right ignitor circuit needs a replacement connection. What it does:

• Transfers electrical power and signals between the oven control and the right-side ignitor to enable burner ignition
• Commonly used when a burner or ignitor fails to light, sparks inconsistently, or has a damaged/loose connector
• Maintains correct connector alignment and insulation to ensure safe, consistent ignition performance
• Replaces worn, frayed, or melted harnesses that can cause intermittent operation or open circuits

• One ignitor harness (right-side)

• Disconnect power (and shut off gas supply on gas appliances) before starting any repair
• Match connector types and routing to the original harness; avoid stretching or pinching wires
• Inspect nearby wiring and terminals for heat damage; replace damaged components as needed

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
