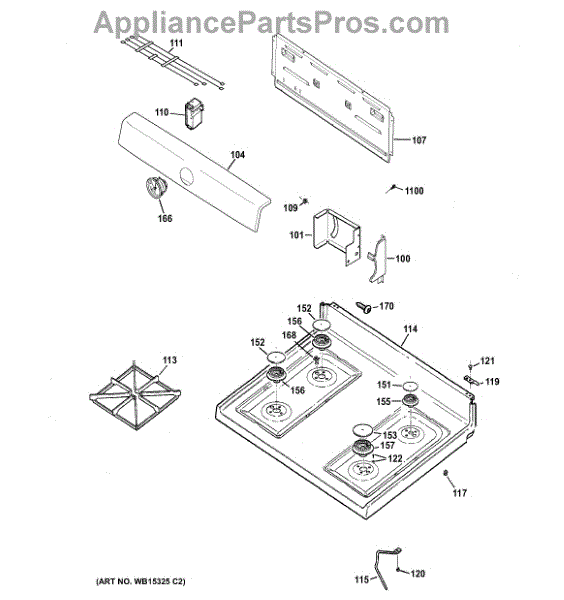

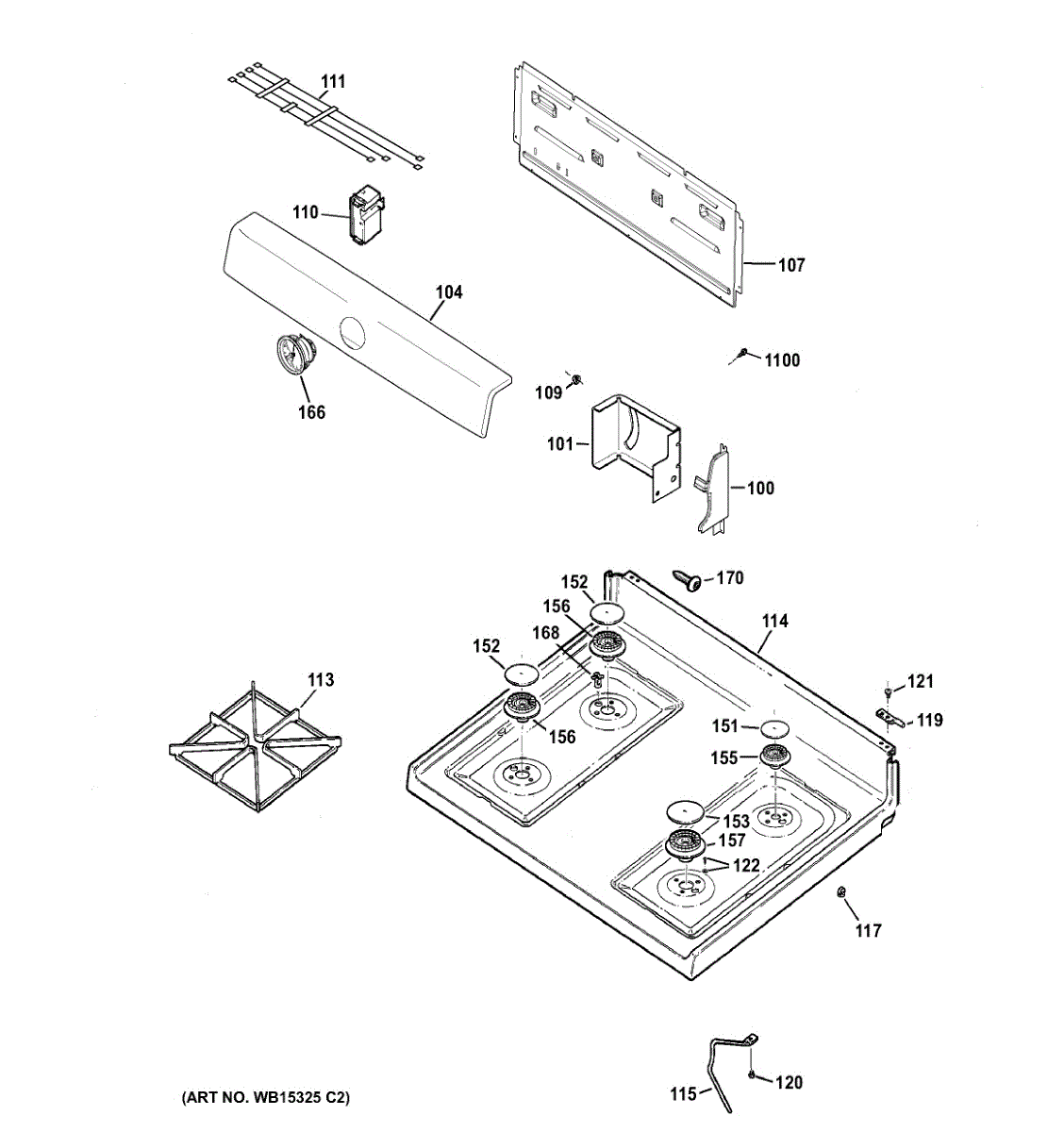

Parts for Ge AGBS45DEF2WS: Control Panel Cooktop Parts

Right hand side

Left hand side

Burner won't light or no ticking sound from igniters? This spark module generates the spark that ignites gas burners. Moderate DIY repair, 30-45 minutes.

Replace chipped or damaged burner grates to restore a stable cooking surface. This hairpin-style grate ensures pots sit securely over the flame.

This is the cooktop surface that sits on top of the range and provides the flat mounting area for burners and grates. It restores a finished cooking surface and protects internal components from spills and debris. What it does:

• Replaces a cracked, warped, or heavily scratched cooktop surface
• Provides a stable mounting area for burners, grates, and burner caps
• Helps prevent spills and food debris from entering the range interior
• Restores proper fit and alignment of surface components for safe cooking

• One range top (cooktop surface) as shown

• Disconnect power (and gas if applicable) before beginning service
• Remove burner grates, burner caps, and any screws or retainers securing the cooktop before lifting
• Handle edges carefully to avoid cuts; a second person may be needed for safe removal/installation
• Follow OEM instructions for reassembly and test burners after installation

This Cooktop support is a replacement mounting bracket that secures and stabilizes the cooktop assembly for safe, even cooking. Restores proper alignment and reduces wobble or movement of the cooktop surface. What it does:

• Physically supports the cooktop assembly and keeps it seated in the countertop opening.
• Helps maintain correct gap and alignment between the cooktop and surrounding trim.
• Reduces unwanted movement, rocking or rattling during use.
• Contributes to safe operation by holding cooktop components in their intended position.

• Installation requires access beneath or around the cooktop; remove power before servicing.
• Keep fasteners and mounting surfaces clean; replace any corroded hardware as needed.
• Observe all safety precautions when working with sharp sheet-metal edges.

Pin locator for gas ranges. Secures and aligns burner components in proper position. Replace if broken, missing, or worn to restore proper burner assembly.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

Burner cap covers the burner head and distributes flame evenly on gas ranges and cooktops. Replace if cracked, warped, or missing for proper cooking.

Medium burner cap for gas cooktops and ranges. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or worn from use.

Replacement burner cap for gas cooktops and ranges. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or worn.

Replacement small surface burner for gas ranges and cooktops. Restores proper flame control when original burner is damaged, cracked, or corroded.

Medium-sized surface burner for gas cooktops and ranges. Installs on the cooktop surface. Replace if cracked, worn, or providing uneven heat distribution.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix a non-responsive, dim, or cracked clock display on your range. This electronic control assembly restores time and timer functions. Moderate DIY.

If your gas range burner won't light or clicks continuously, this igniter clip secures the ignition system. Simple DIY fix in under 15 minutes.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.
