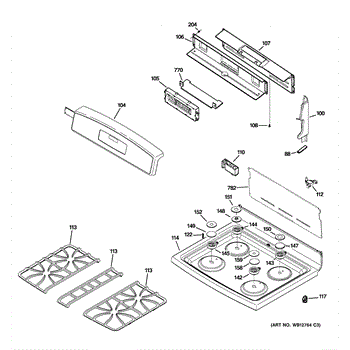

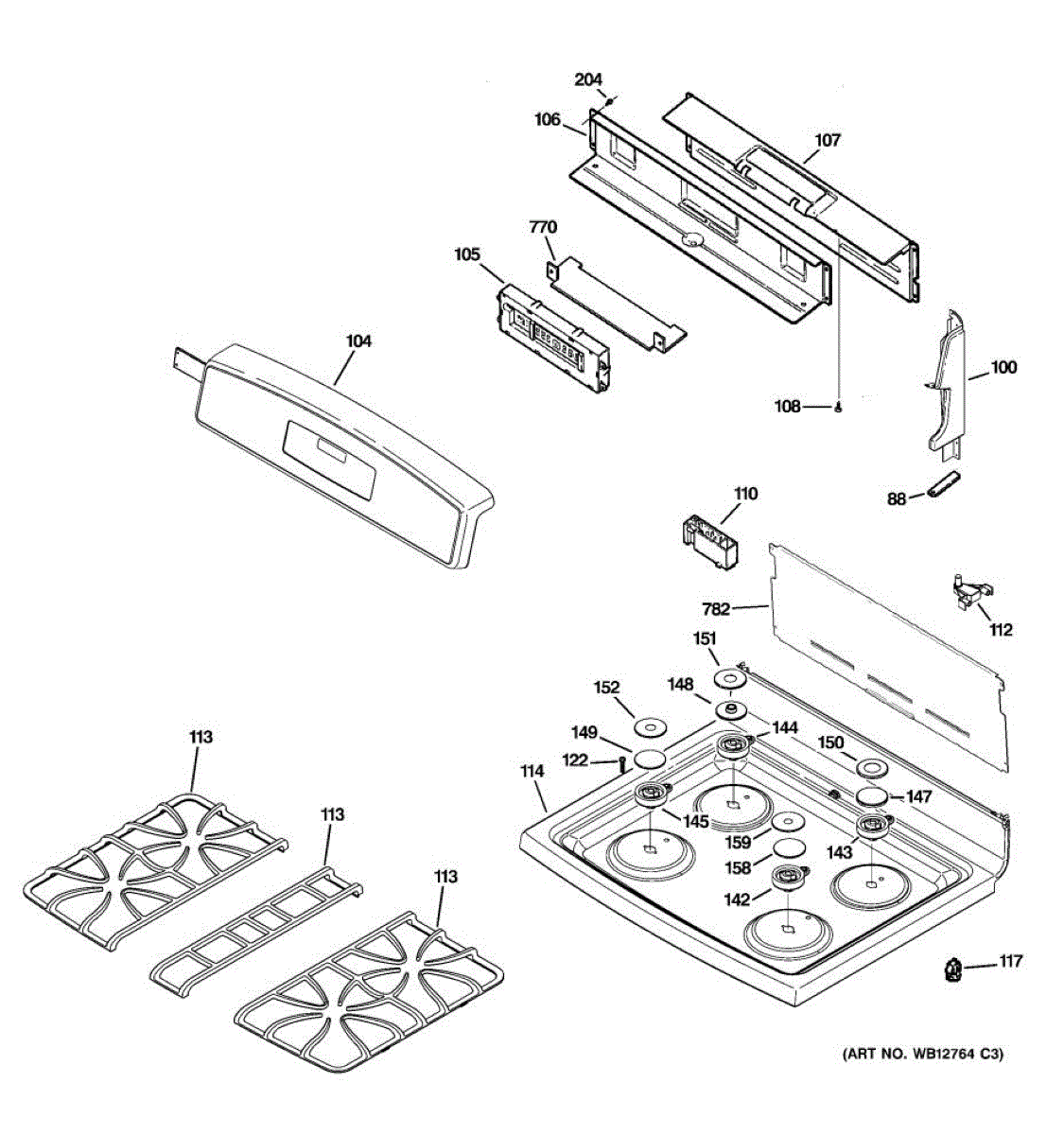

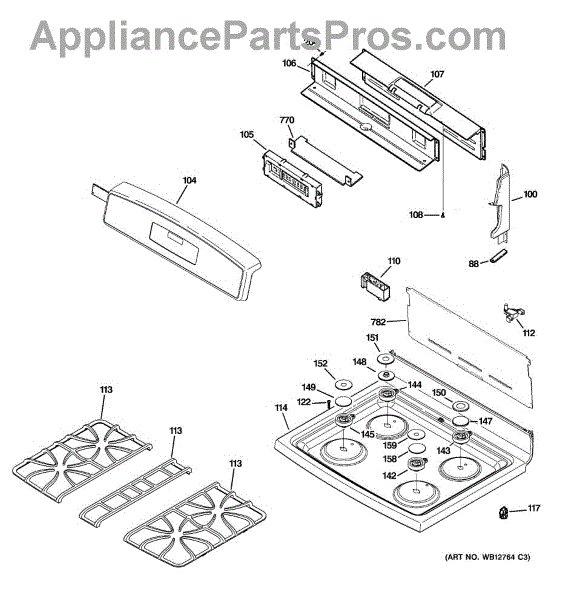

Parts for Ge J2B915SEH1SS: 02 - Control Panel & Cooktop Parts

Color: Black

Color: Black. Left hand side.

Color: Black. Right hand side.

This genuine replacement part is an oven control board assembly. The oven control board is the primary computer circuit board that controls the main functions of the oven. These functions include turning the oven on as well as adjusting and maintaining the temperature of the oven. Luckily, replacing a control board is a simple process.To replace the board, first, make sure the oven is unplugged. Gain access to the back of the oven and remove the upper back panel. Once the panel is removed, locate the old control board. Take note of the orientation of the wires by taking a photo with a phone camera. Disconnect the wire harness and any individual wires that are attached to the old board. Re-secure the wires into their correct positions. Snap the new board back in place and reinstall the upper back panel.This replacement OEM control board is compatible with General Electric, Hotpoint, and RCA brand ovens.

Size: 8 - 18 ab hxw 5/8 s

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Color: Black

Approx 4 inches in diameter

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 3 inches in diameter

Approx 2 inches in diameter

Approx 2-3/4 inches in diameter

Approx 3-1/4 inches in diameter

This left-side burner cap centers and protects the burner head while helping shape the flame for efficient cooking. Durable replacement for worn or damaged caps to restore even heating and safe stovetop performance. What it does:

• Covers and shields the burner head from spills and debris
• Helps distribute and stabilize the burner flame for consistent heat
• Prevents flame distortion that can cause uneven cooking
• Reduces risk of burner clogging by directing spills away from the burner ports

• Turn off the cooktop and allow all components to cool completely before handling
• Remove the old cap (lift straight up) and set the new cap in place, ensuring it seats flat on the burner base
• Clean surrounding burner area of debris before installation for proper seating and flame quality

Approx 4-1/4 inches in diameter

Color: Graphite for Stainless models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This back cover protects the appliance's rear components and wiring, keeping internal parts secure and reducing exposure to dust and debris. It restores the cabinet's finished appearance and helps maintain safe operation. What it does:

• Covers and shields rear-mounted electrical components and connections from dust and accidental contact
• Helps reduce vibration noise and prevents loose parts from rubbing or striking internal components
• Prevents debris and small objects from entering the appliance chassis
• Visible cracks, missing tabs, or warping can allow rattling or expose wiring — replacing the cover restores protection

• One back cover (rear panel) as shown

• Disconnect power (and gas, if applicable) before beginning any work
• Typical installation uses screws or retaining tabs; keep removed fasteners for reassembly
• Be careful of sharp sheet-metal edges; wear gloves and eye protection
