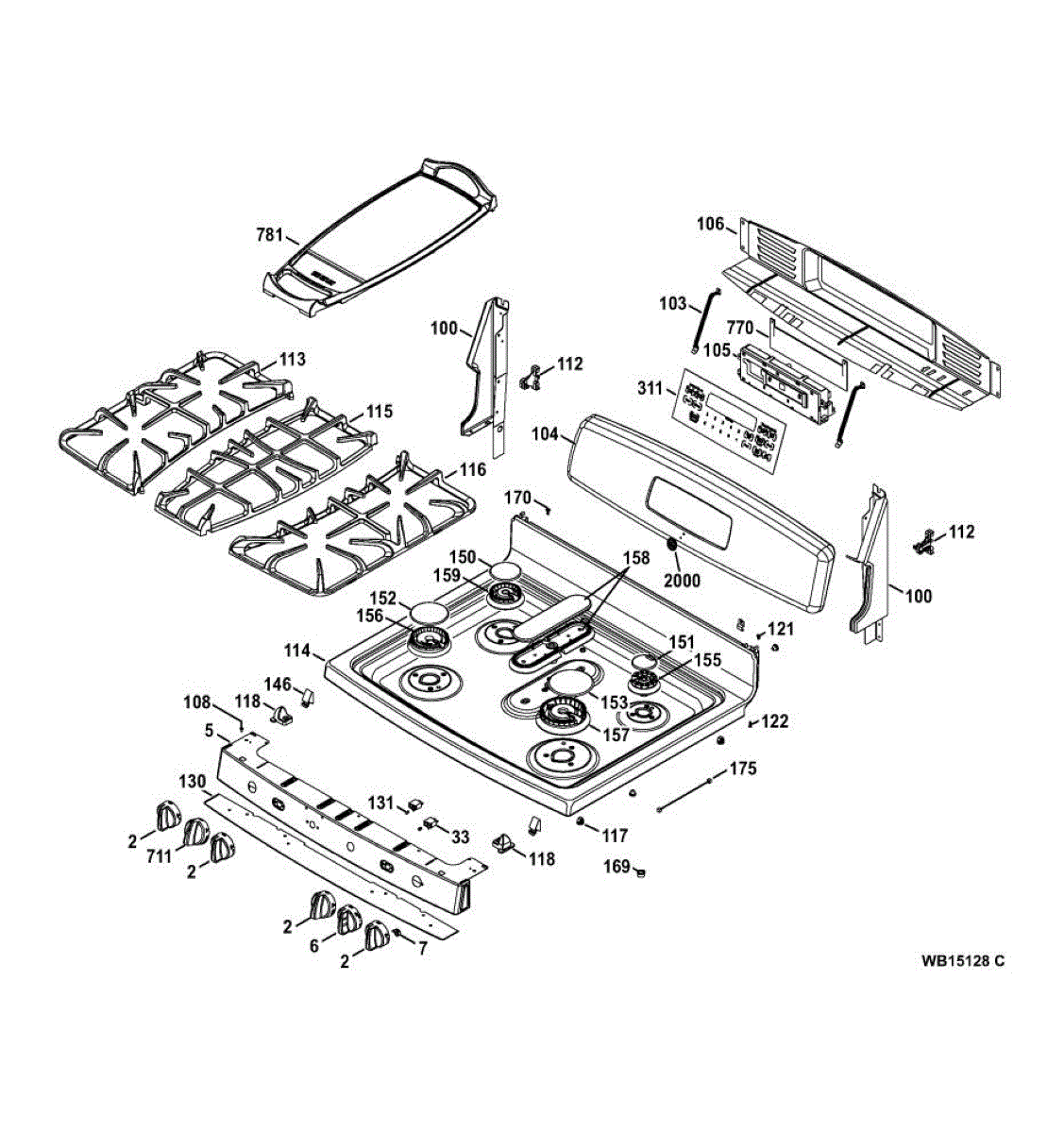

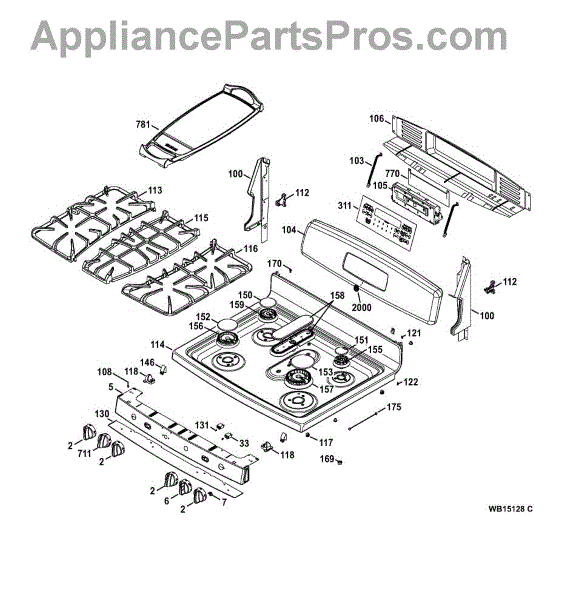

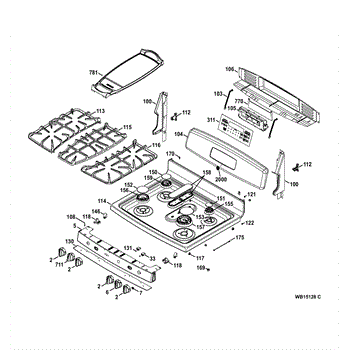

Parts for Ge JGB870DET1BB: 02 - Control Panel & Cooktop Parts

Color: White

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This end support holds the dryer drum in place and provides a stable mounting point for the drum shaft, helping the drum spin smoothly. Replaces a worn or broken support to reduce noise and drum wobble. What it does:

• Supports the drum shaft at the rear of the dryer for proper alignment
• Helps maintain smooth drum rotation and belt tracking
• Can reduce scraping, grinding or thumping noises caused by a damaged support
• Prevents excessive drum movement that can wear belts or other components

• Disconnect power to the appliance before beginning any repair
• Remove the dryer front or rear access panels to access the drum and support
• Note the support orientation and any mounting clips or screws; reinstall in the same position
• Inspect the drum shaft, glides and belt for wear while replacing the support

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

A left-front cast iron cooktop grate that supports cookware over the burner and restores stable, level cooking. Durable cast construction resists heat and holds pots securely for everyday stovetop use. What it does

• Replaces a damaged, cracked, or missing left-front cast grate so pans sit level over the burner
• Provides a stable cooking surface to help prevent cookware from rocking or slipping
• Maintains proper spacing from the burner for even flame contact and safe use
• Restores the aesthetic, functional appearance of the cooktop

• One left-front cast iron cooktop grate

• Allow the cooktop to cool completely before removing or installing the grate
• Lift straight up to remove; set replacement grate into position so it seats securely on the cooktop supports
• Handle with care—cast grates are heavy and can chip if dropped
• Clean with non-abrasive cleaners and avoid thermal shock (don't immerse a hot grate in cold water)

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This factory screw secures components in your appliance for a tight, reliable fit. Replacing a missing or damaged screw helps stop rattles, restore alignment, and keep panels or brackets firmly attached. What it does:

• Acts as a mounting fastener for appliance components such as panels, brackets, or assemblies
• Maintains proper alignment and stability of secured parts
• Helps reduce vibration, rattling, or looseness caused by worn or missing hardware
• Replaces stripped, rusted, or lost screws to restore secure attachment

• One screw

• Disconnect power; shut off gas supply before servicing
• Replace screws one at a time to match length and location
• Start threads by hand to avoid cross-threading; use the correct driver/bit
• Tighten snugly—do not overtighten; inspect mating clip or bracket if threads are damaged

This replacement indicator light lens covers the lamp opening on the control panel, protecting the opening while keeping the ON indicator easy to see. Replacing a cracked or missing lens restores visibility and a finished look.

• Covers and protects the indicator lamp opening in the panel
• Diffuses light so the appliance's ON status is easy to see
• Helps keep dust, grease, and moisture out of the control area
• Common signs to replace: lens cracked, missing, cloudy/discolored, or won't stay seated

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the panel area; release the old lens tabs or retainer from the back side and remove
• Align and press the new lens fully into the opening until it sits flush
• Restore power and verify the indicator illuminates correctly

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Mounting screw for end caps.

A replacement control insulation piece that helps protect the appliance control assembly from heat and abrasion. Restores the thermal barrier behind the control panel to help prevent heat-related control damage. What it does:

• Shields the control board and wiring from oven/burner heat and radiant heat buildup.
• Helps prevent heat-related failures, melting, or damage to the control assembly.
• Reduces risk of shorting or chafing where wiring passes near the control area.
• Can reduce intermittent control issues that occur when components overheat.

• One control insulation piece

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the console/control panel to access and replace the insulation.
• Align the insulation carefully; secure any clips or adhesive exactly as OEM design specifies.
• If insulation is brittle, torn, or shows heat damage elsewhere, inspect adjacent components and wiring for damage.

The Griddle Assembly is an OEM part for GE ranges. This griddle is designed to fit over the burners, providing a flat and even cooking surface ideal for preparing foods like pancakes, eggs, and grilled sandwiches.

Causes of a bad griddle can include regular wear and tear, warping from high heat exposure, or physical damage from dropping or mishandling. A compromised griddle can lead to uneven cooking and potential safety hazards.

Symptoms of a bad griddle assembly include:

• Warping or bending of the griddle surface
• Uneven heating or hot spots during cooking
• Cracks or chips on the griddle
• Food sticking excessively despite proper maintenance

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This logo badge is the decorative nameplate used on select cooking appliances. Replacing a missing or worn emblem restores the finished factory look and keeps the front of your appliance looking complete and consistent with the original design.

• Cosmetic component that displays the appliance logo and completes the front panel or door
• Replaces a badge that is missing, cracked, peeling, or discolored
• Helps refresh the appliance's appearance without affecting operation
• Common signs: badge fell off, won't adhere, looks faded or damaged

• Disconnect power before working near control panels or doors
• Note the badge's original location and orientation before removal
• Use a non-marring tool to gently lift the old emblem if present; avoid scratching finishes
• Clean and dry the surface thoroughly before pressing the new badge into place
