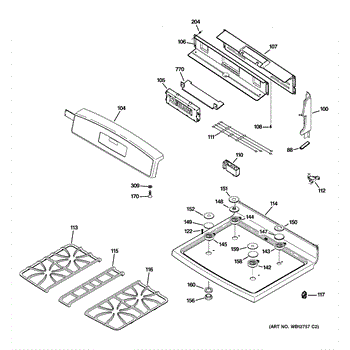

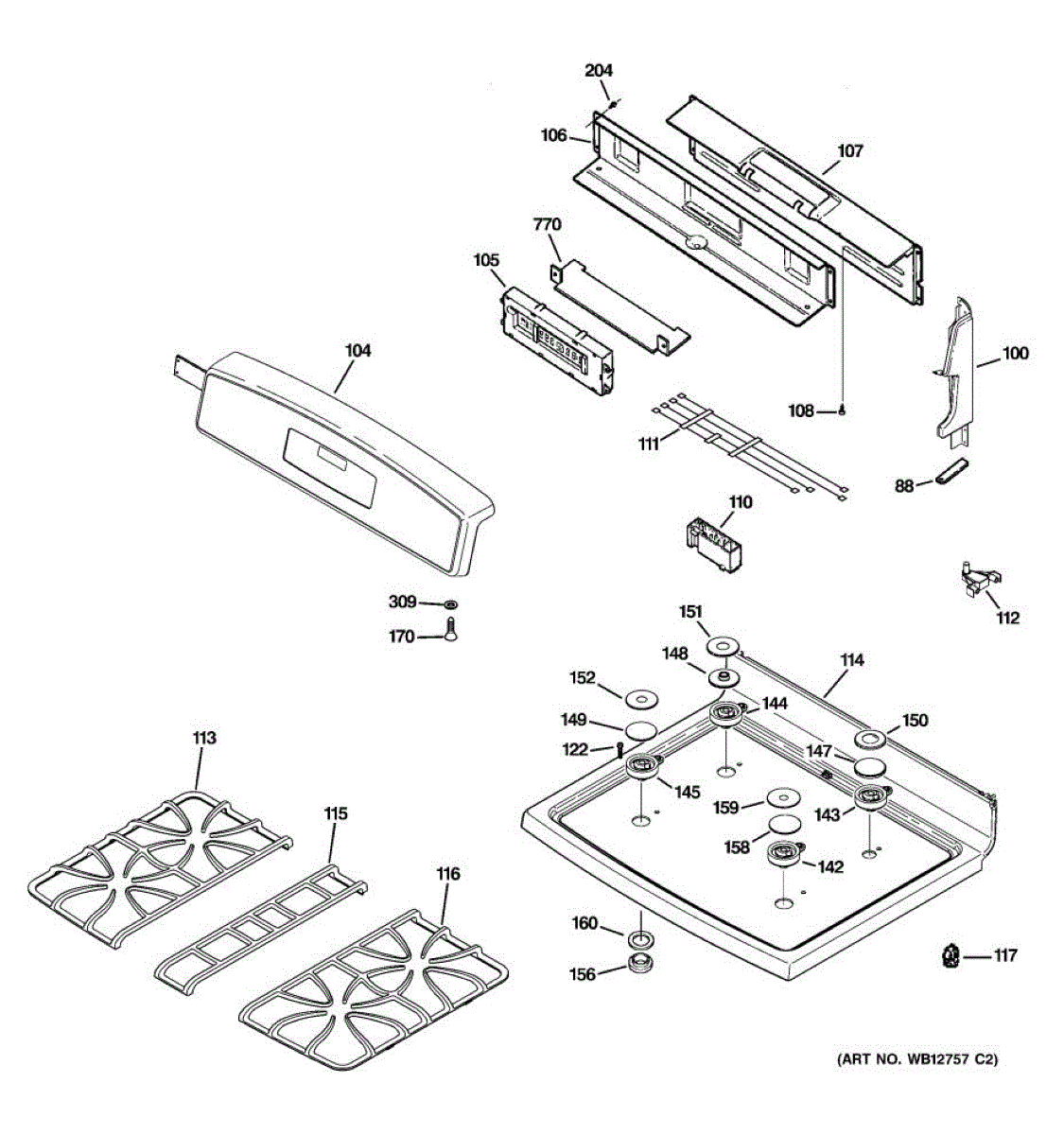

Parts for Ge JGB928SEK3SS: 02 - Control Panel & Cooktop Parts

Color: Black

Color: Black. Left hand side.

Color: Black. Right hand side.

Size: 8 - 18 ab hxw 5/8 s

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This harness module is a factory-style wire harness assembly that routes power and control signals between the appliance control and service components, restoring reliable electrical connections and proper control operation. What it does

• Connects the main control board to heating elements, sensors, igniters or switches so commands and power reach working components
• Restores interrupted circuits caused by damaged or burned wires and faulty connector terminals
• Helps eliminate intermittent operation, unresponsive controls, or parts that fail to receive power
• Can resolve symptoms such as no-heat, burners/oven not responding, or error codes linked to open/shorted harness circuits

• Disconnect power to the appliance before servicing to avoid shock or damage
• Compare the harness to the old part and follow the appliance wiring diagram for correct routing and connector placement
• Inspect connector terminals and mating parts for damage before installation; replace any damaged clips or fasteners
• Secure the harness away from heat and moving parts and verify function before reassembling the appliance

A replacement spark ignition module that delivers timed high-voltage pulses to burner electrodes so gas burners light reliably. Replaces a failed ignition control to restore normal spark operation for cooktops and ranges. What it does

• Sends spark to the burner electrodes so gas ignites when a burner is turned on — use when burners fail to light or need multiple tries.
• Routes spark to the correct burner circuit based on the range's control settings.
• Helps prevent continuous sparking when the burner is off by switching ignition output as commanded.
• Works with existing electrode wires and control harnesses when the original module fails.

• Disconnect electrical power and shut off the gas supply before starting any work.
• Handle electrode wires and connectors gently; avoid crimping or bending electrode tips.
• Verify wiring matches the old module exactly; tag wires if needed to ensure correct reconnection.

Color: Black

Approx 4 inches in diameter

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 3 inches in diameter

Approx 2 inches in diameter

Approx 2-3/4 inches in diameter

Approx 3-1/4 inches in diameter

This left-side burner cap centers and protects the burner head while helping shape the flame for efficient cooking. Durable replacement for worn or damaged caps to restore even heating and safe stovetop performance. What it does:

• Covers and shields the burner head from spills and debris
• Helps distribute and stabilize the burner flame for consistent heat
• Prevents flame distortion that can cause uneven cooking
• Reduces risk of burner clogging by directing spills away from the burner ports

• Turn off the cooktop and allow all components to cool completely before handling
• Remove the old cap (lift straight up) and set the new cap in place, ensuring it seats flat on the burner base
• Clean surrounding burner area of debris before installation for proper seating and flame quality

Approx 4-1/4 inches in diameter

Color: Graphite for Stainless models.

Package of 12

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Includes 12 washers.
