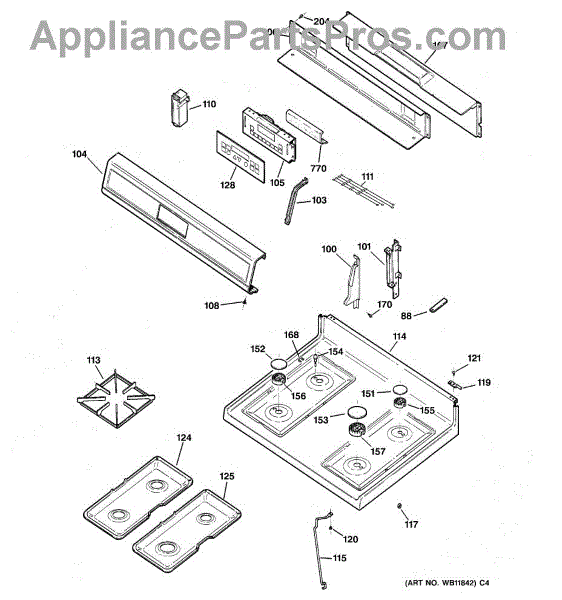

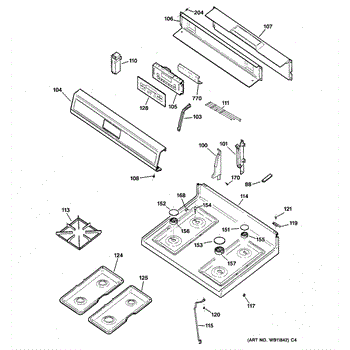

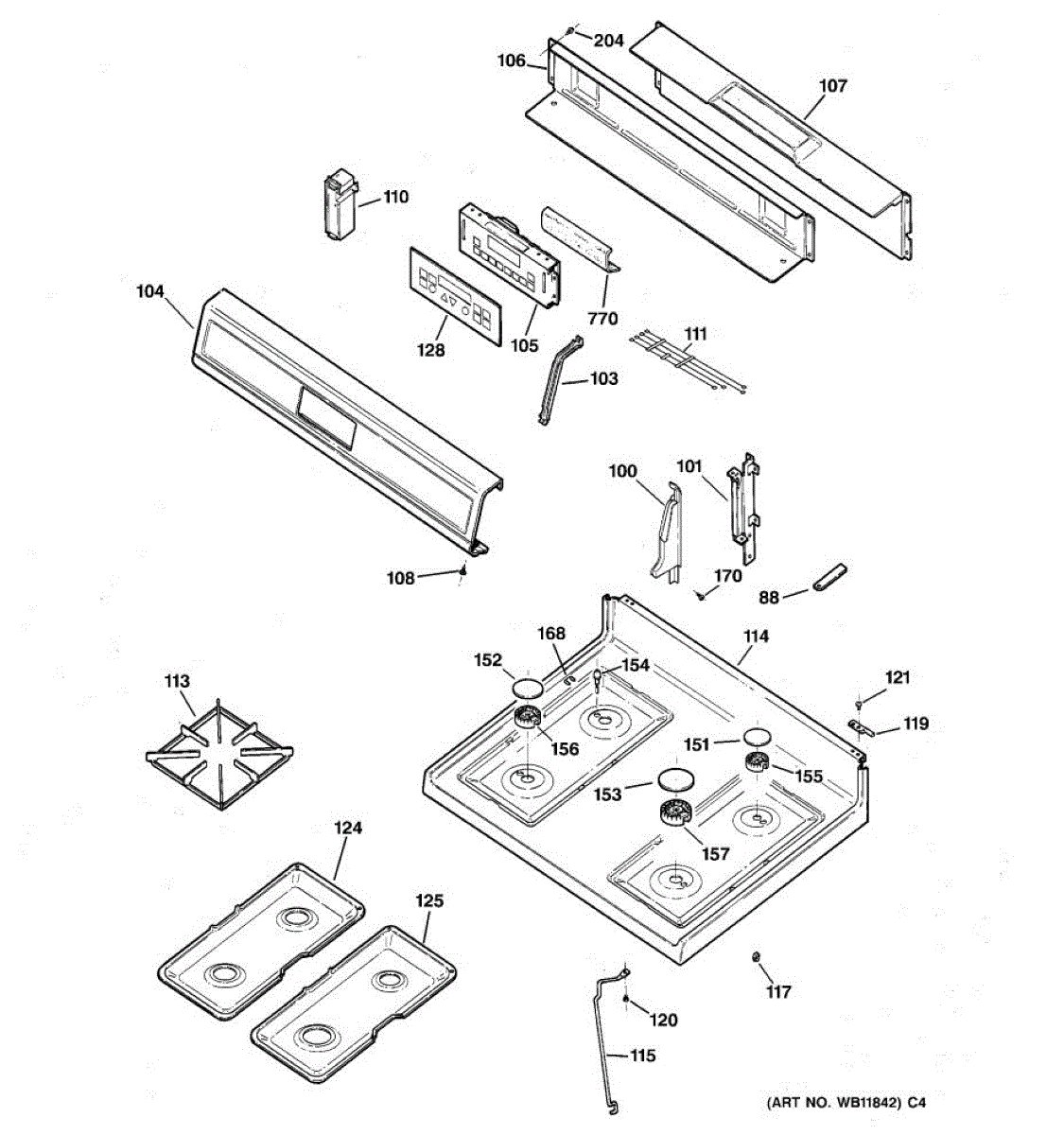

Parts for Ge JGBP35GXH5WW: 02 - Control Panel & Cooktop Parts

Color: White. Right Hand side

Color: White. Left Hand side.

Right hand side

Left hand side

This OEM part is a control board for ovens. The control board is the main computer of the oven and controls its main functions like heating, maintaining and adjusting temperature, as well as turning the oven on and off. A control board can become inoperable after excessive wear and tear. If the oven is no longer turning on, the digital display isn't working, or the buttons are unresponsive, the control board will need to be replaced.To replace a control board, start by making sure the oven is unplugged. After that, gain access to the upper back panel on the back of the range. Uninstall the panel by loosening the screws that secure it. Once removed, locate the old control board and detach it from its mounting brackets. Remove any individual screws that might be holding the board in place. Once, removed proceed to unplug the wire harness and any individual wires attached to the old board. Make sure to take note of the orientation of the wires. Reinsert the wires into the correct terminals on the new board. After that, snap the new board back into its place and make sure to thread any mounting screws that attach it. Reinstall the upper back panel and restore the power to the appliance. This authentic replacement part is sourced directly from the manufacturer and is compatible with General Electric, Hotpoint, and RCA ovens.

Size: 8 - 18 ab hxw 5/8 s

This harness module routes power and control signals between the appliance control system and internal components to restore reliable electrical connections and proper function. What it does:

• Connects control board circuits to motors, switches, sensors, or valves for coordinated operation
• Re-establishes intermittent or lost electrical paths that can cause components to stop responding
• Helps resolve symptoms like parts that won't run, intermittent operation, or related error codes
• Ensures connectorized wiring is organized for correct signal routing and secure contact

• Disconnect power to the appliance before accessing electrical components to avoid shock
• Handle connectors gently; match keyed plugs and fully seat each connector during installation
• Route harness away from heat sources and moving parts; secure with existing clips or ties
• If wiring, insulation, or connectors are damaged, replace the entire harness rather than splicing

A replacement spark ignition module that delivers timed high-voltage pulses to burner electrodes so gas burners light reliably. Replaces a failed ignition control to restore normal spark operation for cooktops and ranges. What it does

• Sends spark to the burner electrodes so gas ignites when a burner is turned on — use when burners fail to light or need multiple tries.
• Routes spark to the correct burner circuit based on the range's control settings.
• Helps prevent continuous sparking when the burner is off by switching ignition output as commanded.
• Works with existing electrode wires and control harnesses when the original module fails.

• Disconnect electrical power and shut off the gas supply before starting any work.
• Handle electrode wires and connectors gently; avoid crimping or bending electrode tips.
• Verify wiring matches the old module exactly; tag wires if needed to ensure correct reconnection.

Color: Gray. For GRATE FEET only, order part# WB2K101

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This left-side refrigerator drip/collection pan catches and directs defrost and condensation water away from the cabinet to prevent pooling and potential leaks. It fits into the freezer/refrigerator base and restores proper water flow to the drain system. What it does

• Collects defrost and condensation water from the evaporator area to prevent pooling inside the cabinet
• Channels water toward the drain so it can evaporate or exit to the drain pan
• Helps stop water leaks and ice buildup caused by overflow or misdirected condensate
• Restores proper fit and sealing along the left lower cabinet area for normal drainage

• One left-side pan unit (gray)

• Unplug the appliance or shut off power before accessing internal components
• Empty food and remove shelving or kickplate as needed to reach the pan location
• Remove any retaining clips or screws, lift out the old pan, and seat the new pan fully so drain paths align
• Inspect adjacent seals and the drain tube for blockages; reassemble and restore power after installation

This right-side refrigerator pan unit catches and channels defrost and drain water to prevent pooling under the cabinet. It replaces a cracked, warped or damaged right pan so the fridge drains properly and avoids leaks. What it does:

• Collects defrost and condensation water from the evaporator area on the right side
• Channels drain water to the main drain or evaporator tray to prevent floor leaks
• Replaces damaged or warped pans that cause water pooling or odors
• Helps maintain proper drainage during defrost cycles

• One right-side pan unit (gray) as pictured

• Disconnect the refrigerator from power before beginning work
• Remove food, shelves and access panels as needed to reach the pan area
• Handle the pan carefully; align drain outlets and any mounting tabs or clips before fastening
• If water leakage continues after installation, check and clear the drain tube and heater assembly per the model's service instructions

This overlay is a genuine General Electric part, sold individually. This overlay can be used as a replacement part for a gas range. This overlay provides a selection menu for users to touch in order to interact with the oven, such as cooking time, bake, broil, self-clean, and oven light, among other buttons.This part might have to be replaced if it suffers damage to the point that the user of the appliance cannot rely on it to execute the functions by touch. Damage could manifest in the form of cracks, tears, scrapes, punctures, or erosion to the material of the overlay that prevents the screen from responding to the touch of the user. If this occurs, the overlay should be removed and replaced by this genuine OEM replacement part. It is a simple replacement process that will not require any special tools.This is an OEM part sourced directly from the manufacturer. It is sold individually. This overlay is compatible with General Electric brand gas ranges.

The Electrode is an OEM part for GE gas cooktops and ranges. This component is responsible for igniting the surface burners. They are also often referred to as spark igniters.

Causes of a bad electrode can include cracks, mineral deposits, or damage accumulated from regular usage over many heating cycles. Heat exposure degrades the material integrity of the tip.

Symptoms of a bad electrode include:

• Surface burners failing to light or ignite when turned on
• The igniter glows but flames do not ignite
• Intermittent or inconsistent ignition of burners
• Visible wear, cracks or corrosion on the electrode tip

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Mounting screw for end caps.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
