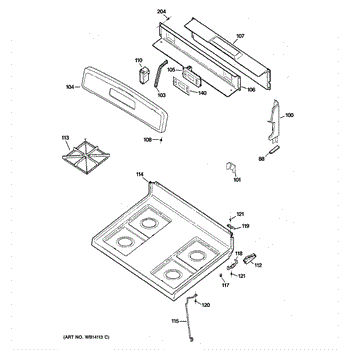

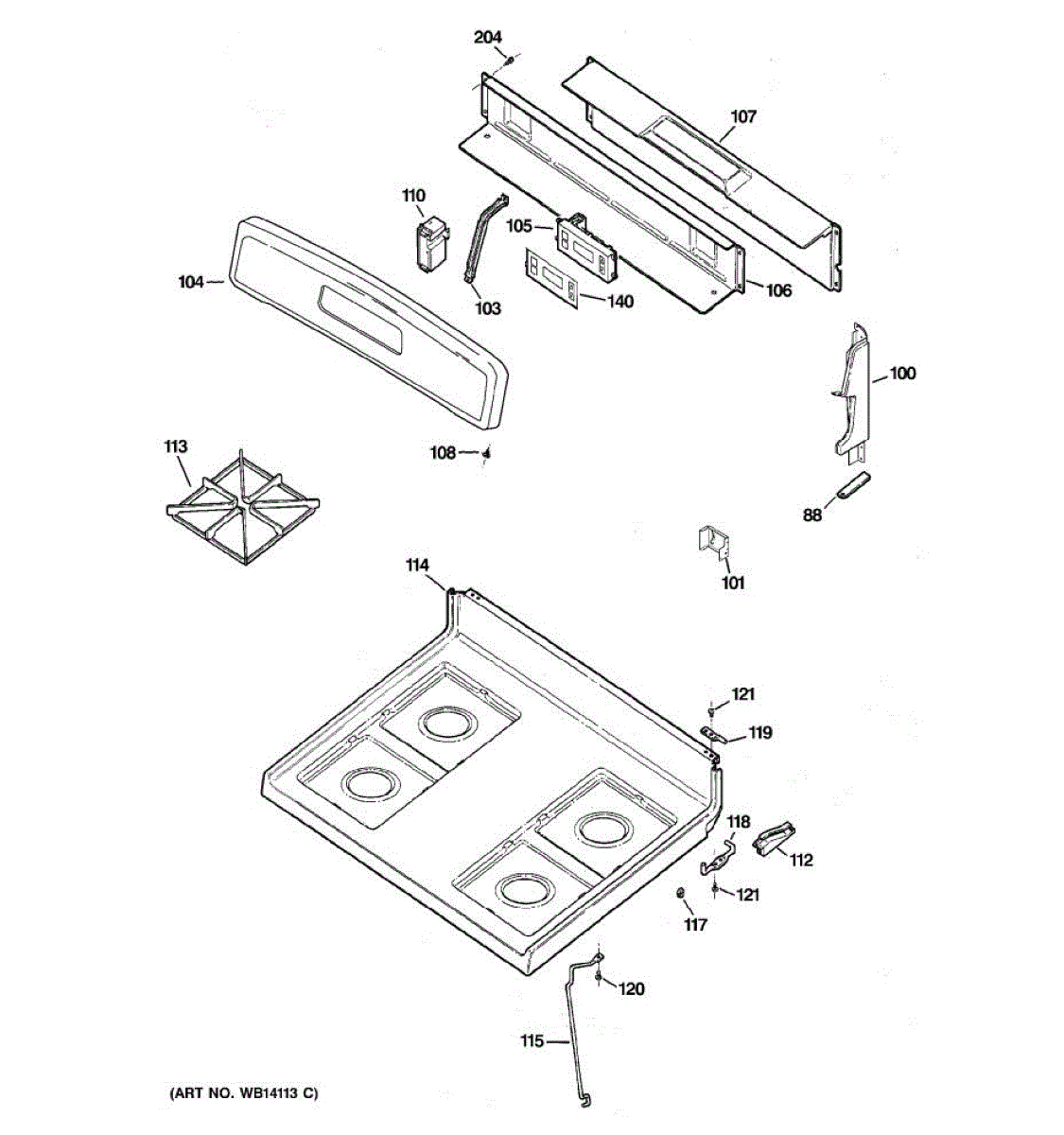

Parts for Ge JGBS17DEM1BB: 02 - Control Panel & Cooktop Parts

End support cap for gas ranges. Installs on the side panel to provide structural support and a finished appearance. Replace if cracked or missing.

Right end support cap for gas ranges. Secures and covers the side panel edge. Replace if cracked, broken, or missing to restore a finished appearance.

Right hand side

Left hand side

Color: Black

If your gas range display is blank, oven won't heat, or temperature climbs uncontrollably, the control board likely failed. Moderately easy DIY repair.

Upper back cover panel for gas ranges. Replaces cracked, damaged, or missing housing cover on the rear upper section. Restores appearance and protects.

Replace the lower back cover panel on your gas range. This housing protects internal components and maintains structural integrity when cracked or damaged.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Wire harness assembly for ranges. Routes power and control signals between the control board and heating elements. Replace if wires are damaged or frayed.

Fix burners that won't ignite or keep clicking with this ignition spark module. Controls high-voltage sparks for cooktop burners. DIY-friendly repair.

This is the right side guide holder. For left side use WB14K2.

Left side oven rack guide holder for gas ranges. Replaces broken, cracked, or missing guide holders that secure oven rack slides in position.

Replace cracked, chipped, or discolored burner grates on your gas range. Provides a stable platform for cookware over the burner. Easy swap installation.

This standard rangetop is the replacement top assembly that restores a level, stable cooking surface and helps your range operate and look like new. It fits where the cooktop sits and supports burners and cookware. What it does:

• Replaces a damaged, dented or worn rangetop to restore a flat cooking surface
• Secures and aligns burner components for consistent burner performance
• Helps prevent heat and spill damage to underlying components
• Addresses symptoms like uneven cookware, rattling parts or visible top damage

What's included:

• One standard rangetop assembly

Install notes:

• Disconnect power and shut off gas supply before starting any repair
• Handle sharp edges carefully; use gloves and eye protection
• Lift and align the rangetop carefully to engage support clips/mounting points

This metal bracket provides structural support for your range top, keeping it level and stable during cooking. It prevents sagging and maintains proper alignment of burners and cooking surfaces. Replace this part if your range top is sagging, uneven, or wobbles when pressure is applied.

Pin locator for gas ranges. Secures and aligns burner components in proper position. Replace if broken, missing, or worn to restore proper burner assembly.

Right side guide slide for gas range oven racks. Replace if cracked, bent, or causing racks to stick. Ensures smooth oven rack sliding operation.

Left side guide slide for gas ranges. Replaces cracked, broken, or worn slides. Essential structural component for proper range operation.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Black touch pad overlay for range control panel. Replaces worn, faded, or cracked overlays. Installs over existing control board for a refreshed appearance.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.
