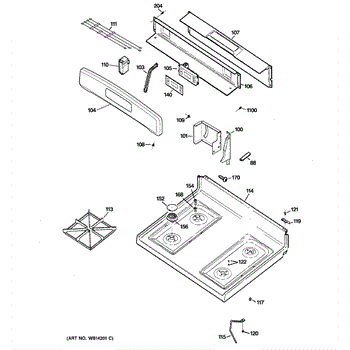

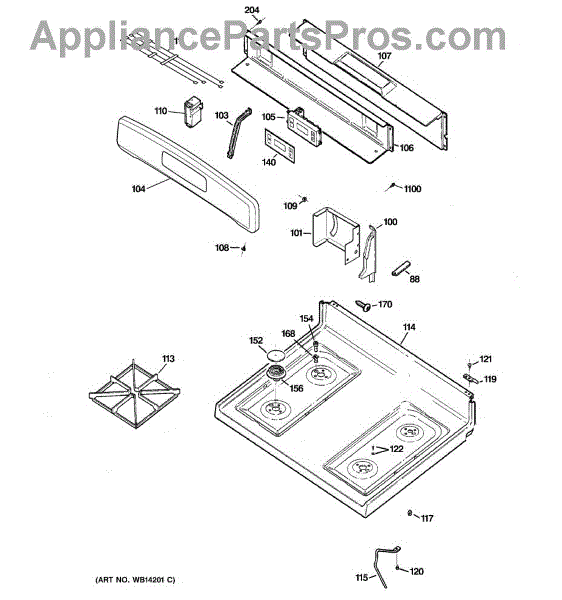

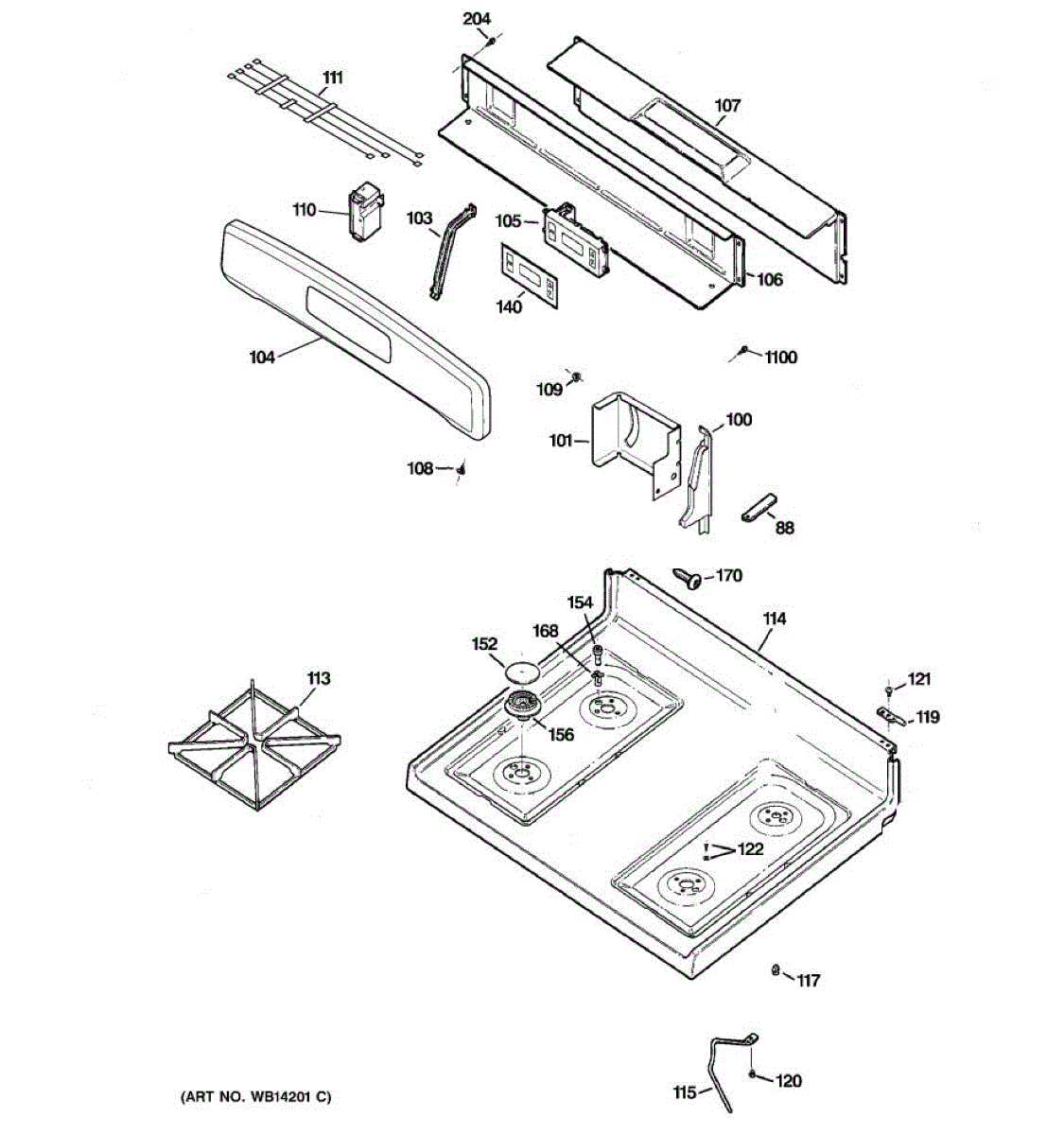

Parts for Ge JGBS19MEN1BS: 02 - Control Panel & Cooktop Parts

Right hand side

Left hand side

This electronic oven control board manages bake and broil functions, the display, and keypad on gas ranges. Replace a failed board to restore proper heating, accurate temperature control, and a working clock/timer when the original stops responding.

• Regulates oven temperature by reading the sensor and cycling the igniter and gas valve during bake and broil
• Interprets keypad inputs and runs timed cooking modes
• Powers the display, clock, timer, and audible alerts
• Common failure symptoms: oven won't heat or overheats, unresponsive controls, blank or garbled display, or recurring error codes

• Disconnect power at the breaker; shut off gas if working near the gas supply
• Use anti-static precautions and handle the board by its edges
• Photograph wiring and transfer connectors one at a time; secure the control in the original mounting
• Restore power and test bake; perform any required calibration per the manufacturer's instructions

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Includes 12 speed nuts.

This harness module routes power and control signals between the appliance control system and internal components to restore reliable electrical connections and proper function. What it does:

• Connects control board circuits to motors, switches, sensors, or valves for coordinated operation
• Re-establishes intermittent or lost electrical paths that can cause components to stop responding
• Helps resolve symptoms like parts that won't run, intermittent operation, or related error codes
• Ensures connectorized wiring is organized for correct signal routing and secure contact

• Disconnect power to the appliance before accessing electrical components to avoid shock
• Handle connectors gently; match keyed plugs and fully seat each connector during installation
• Route harness away from heat sources and moving parts; secure with existing clips or ties
• If wiring, insulation, or connectors are damaged, replace the entire harness rather than splicing

A replacement spark ignition module that delivers timed high-voltage pulses to burner electrodes so gas burners light reliably. Replaces a failed ignition control to restore normal spark operation for cooktops and ranges. What it does

• Sends spark to the burner electrodes so gas ignites when a burner is turned on — use when burners fail to light or need multiple tries.
• Routes spark to the correct burner circuit based on the range's control settings.
• Helps prevent continuous sparking when the burner is off by switching ignition output as commanded.
• Works with existing electrode wires and control harnesses when the original module fails.

• Disconnect electrical power and shut off the gas supply before starting any work.
• Handle electrode wires and connectors gently; avoid crimping or bending electrode tips.
• Verify wiring matches the old module exactly; tag wires if needed to ensure correct reconnection.

The Burner Grate is an OEM part for GE ranges. It provides a stable and durable surface to hold cookware above the burner, ensuring even heat distribution during cooking.

The burner grate should be replaced if it becomes damaged or worn out. Causes of a bad burner grate can include prolonged exposure to high heat, accidental impacts, or the enamel coating wearing off over time.

Symptoms of a bad burner grate include:

• The grate becoming unstable or wobbly
• Visible cracks or chips in the material
• Difficulty in positioning cookware securely
• Uneven cooking due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

Color: Black

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part is a spark electrode. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace a defective or burnt-out spark electrode on multiple different models of ovens and stoves.This spark electrode catches the stream of gas emitted from the burner alight in order to start the stove's flame. Spark electrodes are a common component on newer gas range models. Over time, this part may burn out or become damaged, which will prevent the burner flame from lighting. This part requires proper tools for replacement. Before starting, disconnect the stove completely from both power and gas hookups. Please follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install this spark electrode, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this spark electrode is suitable for use on several different models of gas-powered ovens, stoves, and ranges manufactured by General Electric and Hotpoint. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Size: 8 - 18 ab hxw 5/8 s
