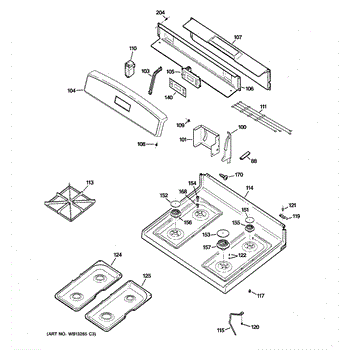

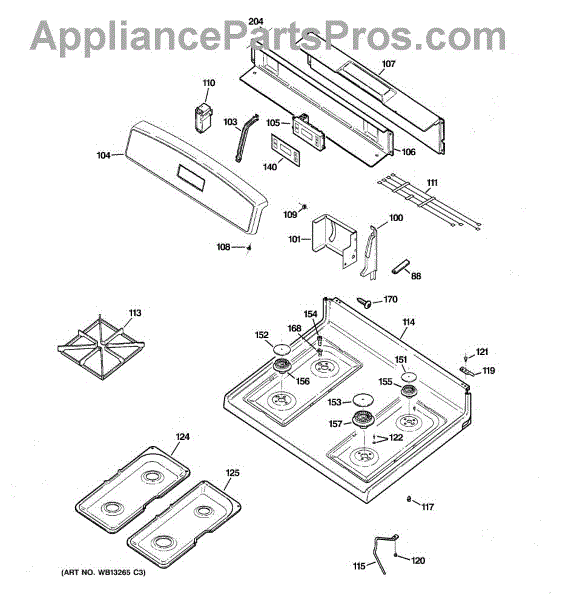

Parts for Ge JGBS24DEM1CC: 02 - Control Panel & Cooktop Parts

Right hand side

Left hand side

Color: Bisque

If your gas range display is blank, oven won't heat, or temperature climbs uncontrollably, the control board likely failed. Moderately easy DIY repair.

Upper back cover panel for gas ranges. Replaces cracked, damaged, or missing housing cover on the rear upper section. Restores appearance and protects.

Replace the lower back cover panel on your gas range. This housing protects internal components and maintains structural integrity when cracked or damaged.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Includes 12 speed nuts.

Wiring harness module for ranges. Routes power between control board and internal components. Replace if wires are damaged, frayed, or connectors broken.

No clicking or spark when you turn burner knobs? This spark module sends high-voltage pulses to ignite gas burners. DIYers report 20-minute installs.

The Grate Replacement Kit is an OEM part for GE ranges. This kit includes all necessary grates and supports to fully outfit the main oven cavity. Properly placed grates are important for optimal food placement and heat circulation during baking.

Symptoms of needing a new grate kit include:

• Warped or misshapen grates that no longer lay flat
• Broken welds or detached grate supports
• Missing sections or grates that have completely broken apart

Causes involve the harsh temperatures and food cleanings taking their toll over years of use. Natural wear and cumulative stress weaken metal parts.

Color: Bisque

This authentic GE grate replacement kit restores like-new functionality. The heavy-duty grates and supports promote even baking and easy cleanup. Upgrading with this kit maintains your oven's quality cooking performance.


Color: Biscuit

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

Color: Taupe. Left hand side

Color: Taupe. Right hand side

Color: Bisque

Small size. Color: Taupe, used for Bisque models. Measures about 2-1/2 inches in diameter.

Medium. Color: Taupe, used for Bisque models. It measures about 3 inches in diameter.

Black burner cap kit for gas cooktops. Replaces cracked, worn, or corroded caps. Restores appearance and protects burner assembly. Includes caps only.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.
