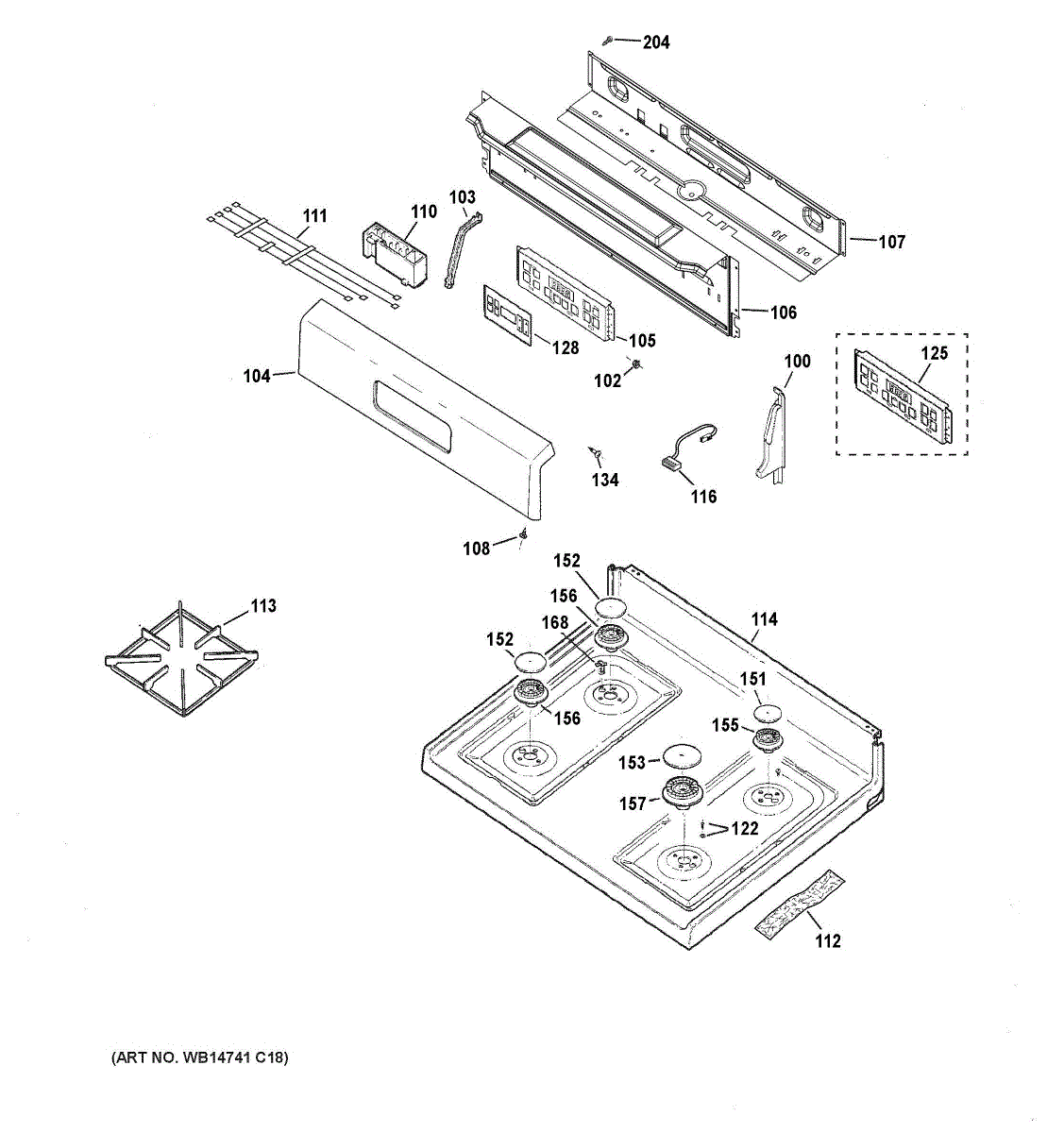

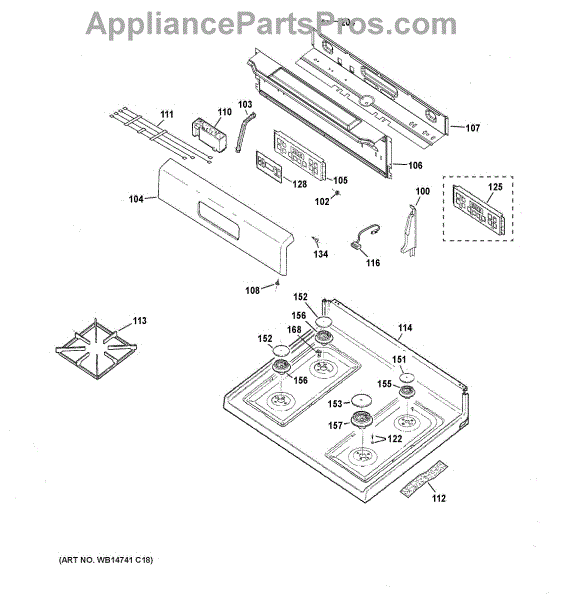

Parts for Ge XGBS400DM1BB: Control Panel Cooktop Parts

Black left-hand endcap for electric and gas ranges. Replaces cracked, broken, or missing endcaps on the side of your range for a complete finished look.

Black plastic endcap for the right side of your range control panel. Replace this cosmetic trim piece if it's cracked, broken, or missing.

Size: 10-32 GXTT FLP.595 S

Lower back cover panel for gas ranges. Protects internal components at the rear base. Replace if cracked, damaged, or missing to restore appearance.

Replace the upper back cover on your gas range. This housing panel protects internal components and completes the exterior finish. Order now if cracked or missing.

Surface burners not lighting or clicking continuously? This spark module controls ignition for all burners. Moderate DIY repair with basic tools.

Unpredictable or incomplete oven heating? This high voltage electrode and harness assembly transmits electricity to ignition components in your gas range.

Burner grate for gas ranges. Holds cookware over burners. Replace if cracked, warped, rusted, or missing. Sold individually, not as a set.

Cracked, warped, or damaged cooktop surface? Replace your gas range top to restore a level cooking surface and proper burner alignment. Moderate DIY.

This control harness connects the appliance control board to switches, sensors and power, restoring reliable signal and power routing for proper operation. Replace a damaged harness to fix intermittent controls or loss of display and functions. What it does

• Routes power and control signals between the main control board and components.
• Replaces frayed or broken wiring that can cause intermittent or no response from controls.
• Helps eliminate faults like blank displays, unresponsive buttons, or modules that won't start.
• Prevents electrical arcing and poor connections from damaged wires or terminals.

• Disconnect power before starting any repair to avoid shock or injury.
• Compare the replacement harness to the original for connector type and wire routing before installing.
• Route wires away from heat sources and moving parts; secure with existing clips or ties.
• If connectors are corroded or pins are damaged, replace the connector or harness rather than forcing connections.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

Control panel overlay for electric and gas ranges. Replaces worn, faded, or damaged overlays with missing labels or cracked surfaces. Direct fit.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

Uneven flames or burner won't light? This small burner cap sits atop your gas range burner head to focus and distribute flame evenly for reliable ignition.

Black burner cap sits atop the burner head on gas ranges and cooktops. Replace if cracked, chipped, discolored, or missing to restore appearance.

Black burner cap for gas range cooktops. Replaces cracked, stained, warped, or missing caps. Sits atop burner base for proper flame distribution.

Replacement small surface burner for gas ranges and cooktops. Restores proper flame control when original burner is damaged, cracked, or corroded.

Medium-sized surface burner for gas cooktops and ranges. Installs on the cooktop surface. Replace if cracked, worn, or providing uneven heat distribution.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

If your gas range burner won't light or clicks continuously, this igniter clip secures the ignition system. Simple DIY fix in under 15 minutes.

Package of 12
