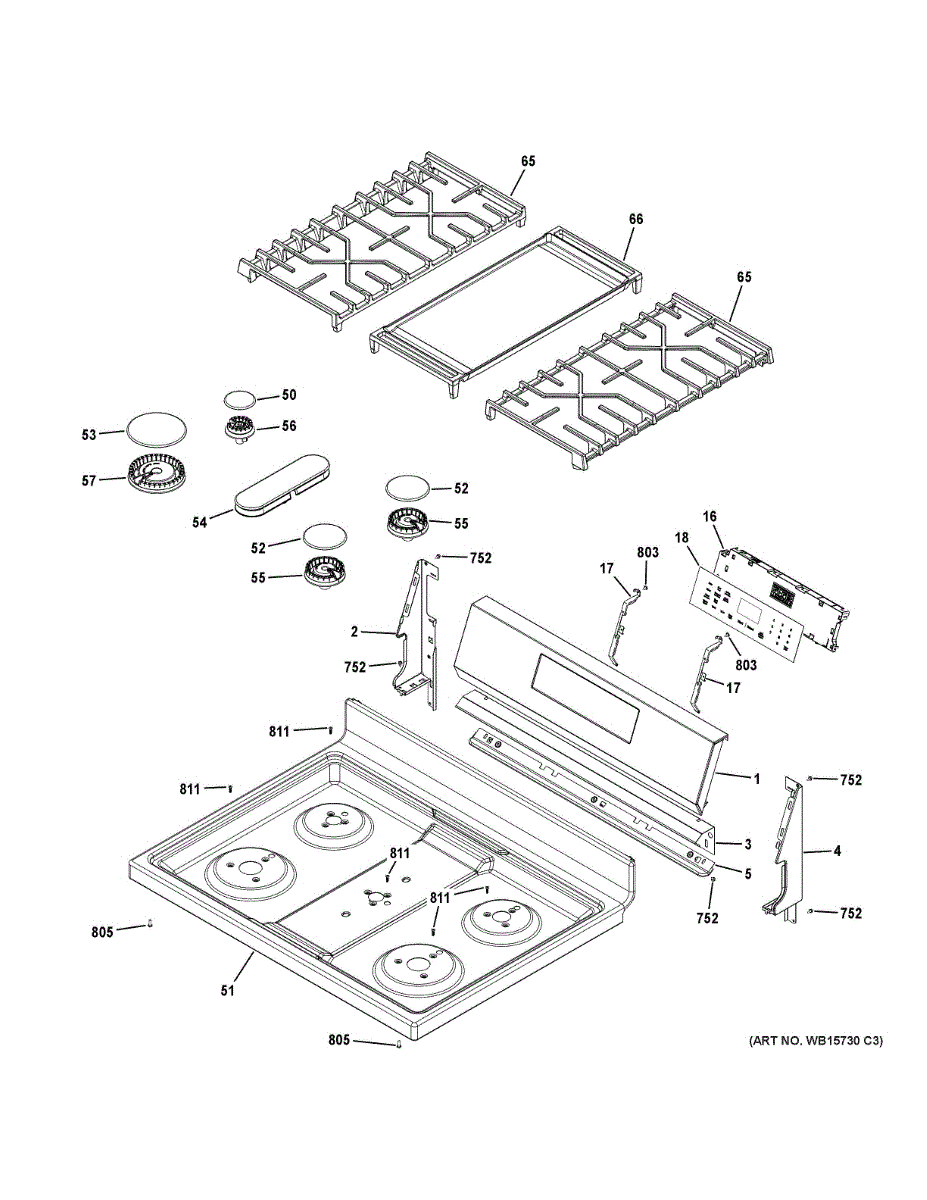

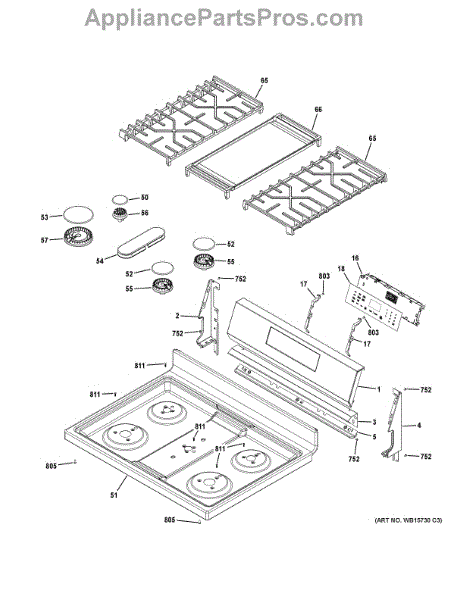

Parts for Ge XGF500PV2BB: Control Panel Cooktop Parts

This black control panel replaces a damaged or worn front control surface on your range/oven, restoring a clean appearance and proper mounting for the control assembly. It provides the exterior panel that secures the keypad/display and trim. What it does:

• Provides the outer front surface for the appliance's control area and secures the control electronics.
• Replaces panels that are cracked, chipped, scratched, or have missing button openings.
• Restores proper fit and alignment for the keypad and display components.
• Can resolve issues related to damaged or loose panel trim that interfere with control operation.

• One black control panel.

• Disconnect power to the appliance before beginning work to avoid shock or damage.
• Handle the panel and any glass or painted surfaces carefully to avoid scratches or cracks during installation.
• Installation typically requires removal of the console trim and control housing; use proper tools and keep fasteners organized.

Replacement control panel overlay that covers the control board interface. Needed when the original overlay is faded, cracked, peeling, or damaged.

Replacement small burner cap for gas cooktop burners. Directs flame and protects burner head. Replace if cracked, chipped, or flame is uneven. Verify size and model compatibility before ordering.

This medium burner cap sits on a gas cooktop burner head to help shape and protect the flame for even cooking. It restores proper burner performance and keeps the burner assembly stable during use. What it does:

• Covers the burner head to direct and stabilize the gas flame
• Promotes more even heat distribution across cookware
• Helps prevent flame lifting and erratic flame patterns caused by a damaged or misaligned cap
• Protects the burner base from spills and debris that can affect ignition

• One medium burner cap (exact OEM part WB29X47157)

• Ensure the range is off and the cooktop is completely cool before handling
• Remove grates and lift off the old cap, then set the new cap into position over the burner head so it sits flat
• Check for a centered, even flame after installation; if flame issues persist, inspect the burner head and ignition components
• Replace cracked, warped, or heavily corroded caps rather than reusing them

This extra-large burner cap fits over a cooktop's large gas burner to help direct the flame for even heating and protect the burner base from spills and debris. It restores proper flame pattern and stable cooking performance. What it does:

• Shields the burner head and helps concentrate the flame for even heat on large cookware
• Helps maintain correct flame shape to improve ignition and reduce flickering
• Protects internal burner parts from food spills and corrosion
• Commonly replaced when cap is cracked, warped, heavily corroded, or no longer seats properly

• One extra-large burner cap

• Turn off gas supply and ensure cooktop is cool before servicing
• Lift off the old cap and seat the new cap flat on the burner head; no tools required for most installs
• Inspect burner head for debris and clean before installing to ensure proper fit and flame

Replace a range burner that won't heat or heats unevenly. This oval surface element restores consistent cooking zones for long pans and griddles.

Medium-sized surface burner for gas cooktops and ranges. Installs on the cooktop surface. Replace if cracked, worn, or providing uneven heat distribution.

Replacement small surface burner for gas ranges and cooktops. Restores proper flame control when original burner is damaged, cracked, or corroded.

Replacement burner head for gas ranges and cooktops. Installs on stovetop to distribute flame evenly. Replace if warped, cracked, or causing uneven flames.

Replace a worn or damaged cooktop grate to restore stable, level support for pots and pans. Ensures even heating and safe cooking. Verify fit with your model.

Replacement griddle for gas and electric ranges. Installs on cooktop for grilling and cooking. Order a new griddle if yours is cracked, warped, or missing.

Black. 8-18 AB HXW 3/8

Mounting screw for gas cooktops. Secures components and panels during installation. Replace if stripped, missing, or damaged during service work.
