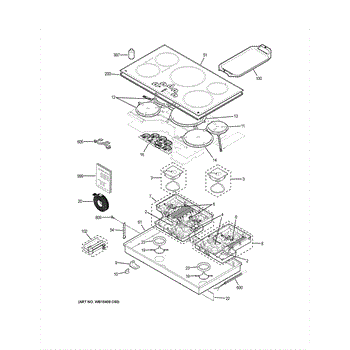

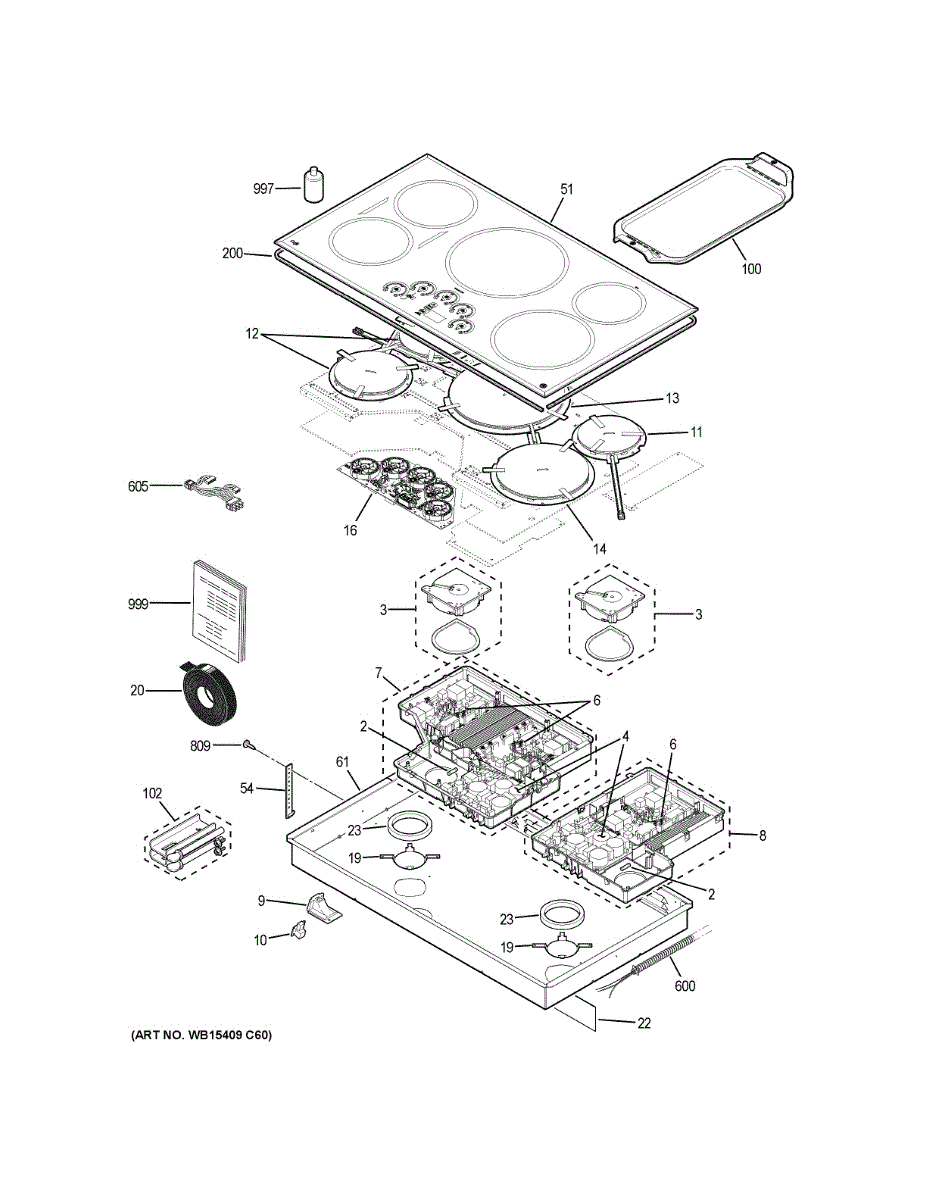

Parts for Ge CHP9536SJ2SS: Control Panel & Cooktop Parts

This 250V, 20A line fuse safeguards the appliance's power circuit by interrupting current during an overload or short. Replacing a blown fuse can restore power once the root cause is corrected.

• Opens the circuit if current exceeds 20 amps or a short occurs
• Helps protect internal wiring and control components from damage
• Typical blown-fuse symptoms: no power, dead display, won't start
• Restores line continuity after the underlying issue is resolved

• Disconnect power at the breaker/unplug before servicing
• Replace only with the same rating (250V, 20A); never bypass or upsize the fuse
• If a new fuse blows again, stop and diagnose the underlying fault before further replacement

Generator board assembly that produces the high-voltage spark used to ignite gas burners on compatible ranges and cooktops, helping restore reliable ignition and reduce continuous clicking or no-spark conditions. What it does:

• Generates the spark that lights surface burners and/or the oven burner on gas cooktops and ranges.
• Can stop or reduce continuous clicking with no ignition when the module fails.
• May cause one or more burners to stop sparking or ignite intermittently.
• Works with the range's ignition switches and electrode wires to coordinate safe ignition.

• Disconnect electrical power and shut off the gas supply before starting any work.
• Photograph or label wire locations before disconnecting to ensure correct reconnection.
• Handle the board and connector pins carefully to avoid damage; avoid touching components with bare hands or tools.

The Induction Control Asm Kit is an OEM part for GE induction cooktops. It contains the control boards needed to operate the smooth glass touch controls and induce heat in the cooktop elements. Precision heat and cooking mode selection relies on this assembly.

Causes of failure can include moisture damage, normal wear over time stressing electrical components, or issues arising from faulty control modules, temperature sensors or wiring.

Symptoms of a bad induction control assembly include:

• Elements not heating or cutting out unexpectedly
• Inaccurate temperature readouts
• Touch buttons failing to respond
• Error codes displayed on startup
• Potential burn or electrical hazards if components degrade

This GE replacement is also compatible with some Hotpoint and RCA induction cooktop models.

This induction control assembly replaces the cooktop's electronic control module to restore responsive controls and proper zone operation. It fits induction cooktops that use this factory control board kit and restores normal user-interface and power control. What it does:

• Replaces the induction cooktop's main control board that manages power to heating zones and the touch/display interface
• Restores zone heating control when the original control is unresponsive or shows error indicators
• Addresses symptoms like unresponsive touch controls, intermittent zone power, or control-related fault codes
• Works with the cooktop's existing wiring and top assembly to resume normal operation

• One induction control assembly kit

• Disconnect power to the appliance at the breaker before beginning any service
• Handle the board by the edges and avoid static discharge; use ESD precautions
• Access typically requires removing the cooktop surface or control bezel—refer to the appliance's service manual for panel removal

This 3700W induction cooktop element replaces a failed induction burner to restore cooking performance on compatible glass-top ranges. It provides the heating surface and induction coil assembly used by the range's induction zone. What it does:

• Generates the induction field that heats compatible cookware on the cooktop
• Replaces a burner that fails to heat or produces intermittent heating
• Can resolve symptoms such as a single burner not responding or showing reduced power
• Works as the primary heating assembly for the specified induction zone

• Disconnect power to the appliance at the breaker before servicing
• Handle the glass cooktop and element carefully to avoid cracks or scratches

This is the console display board assembly that controls the range/oven front panel display and user interface, restoring visible readouts and touch/soft-key response for normal operation. What it does:

• Powers and drives the front-panel display so time, temperature and status are visible
• Relays user key presses from the console to the main control for cook modes and settings
• Can cause blank display, unresponsive keys, or missing clock and error readouts when failed
• Works with the oven/range control system to show error codes and status messages

• Disconnect power at the breaker before removing the console or touching wiring
• Handle the board by the edges and avoid electrostatic discharge; wear an ESD strap if available
• Reconnect all harnesses securely and replace any covers or insulation removed during service

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This main top glass with attached frame replaces a cracked or damaged cooktop surface to restore a safe, stable platform for cookware and improve the range's appearance. Fits where the glass top and surrounding trim are one assembly. What it does:

• Replaces a cracked, chipped or shattered cooktop surface that can allow debris into internal components
• Restores the flat, heat-resistant surface needed for even cookware support
• Covers and protects internal elements from spills and impacts
• Improves cosmetic appearance by replacing scratched or discolored top glass

• Disconnect power at the breaker before servicing to avoid shock risk
• Handle glass with care; wear gloves and eye protection to avoid cuts from sharp edges
• Follow OEM diagram for correct screw locations and alignment; tighten fasteners evenly

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

This is a replacement flat griddle plate designed to restore a smooth, even cooking surface on compatible GE ranges. It provides a durable, easy-to-clean place for pancakes, bacon and other griddle-style cooking. What it does

• Replaces a warped, cracked or damaged cooktop griddle to restore even heat contact
• Provides a flat, non-porous surface that helps prevent food from falling into the cooktop
• Helps eliminate hot or cold spots caused by a damaged griddle
• Designed for direct cooktop use — suitable for pancakes, eggs, sandwiches and similar foods

• One replacement griddle plate

• Disconnect power to the range and allow the appliance to cool completely before installing
• Remove the existing griddle and set the replacement into the cooktop recess; verify it sits flush and stable
• Use only manufacturer-recommended cleaning methods; avoid abrasive cleaners that can damage the finish

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

This foam insulation tape seals and cushions joints in your appliance. It restores a compressible barrier where panels meet, helping contain heat/airflow and reduce vibration once the original tape becomes brittle, flattened, or missing.

• Creates a soft, insulating barrier between adjoining components to limit heat transfer and air leaks
• Cushions trim and panels to reduce vibration and metal-to-metal contact
• Restores proper fit/seal when the original foam is worn or missing
• Common signs: tape is cracked, flattened, or loose; visible gaps at seams; buzzing or rattling from trim

• Disconnect power and allow the appliance to cool completely; shut off gas if applicable
• Note the tape's original location/path before removal; clean off old residue and dry surfaces
• Install the new tape in the same location without stretching; avoid gaps or overlaps
• Do not block burner openings or ventilation paths; refer to your model's diagram for exact placement

This ground wire harness provides the factory grounding connection between the appliance chassis and electrical components, restoring a secure equipment ground for safe operation and proper circuit protection. What it does

• Connects appliance metal chassis to the ground/earth circuit to help prevent electrical shock.
• Restores a secure ground path for controls and components that require chassis grounding.
• Helps resolve intermittent grounding-related faults or error codes tied to poor chassis connection.
• Maintains correct wire routing and factory-style terminals for a reliable electrical connection.

• Disconnect power (unplug or shut off breaker) before inspecting or replacing any wiring.
• Replace only with the exact harness or manufacturer-approved equivalent; match terminals and routing to the original.
• Secure harness to chassis and nearby components using original clips or fasteners to prevent chafing or contact with hot parts.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit
