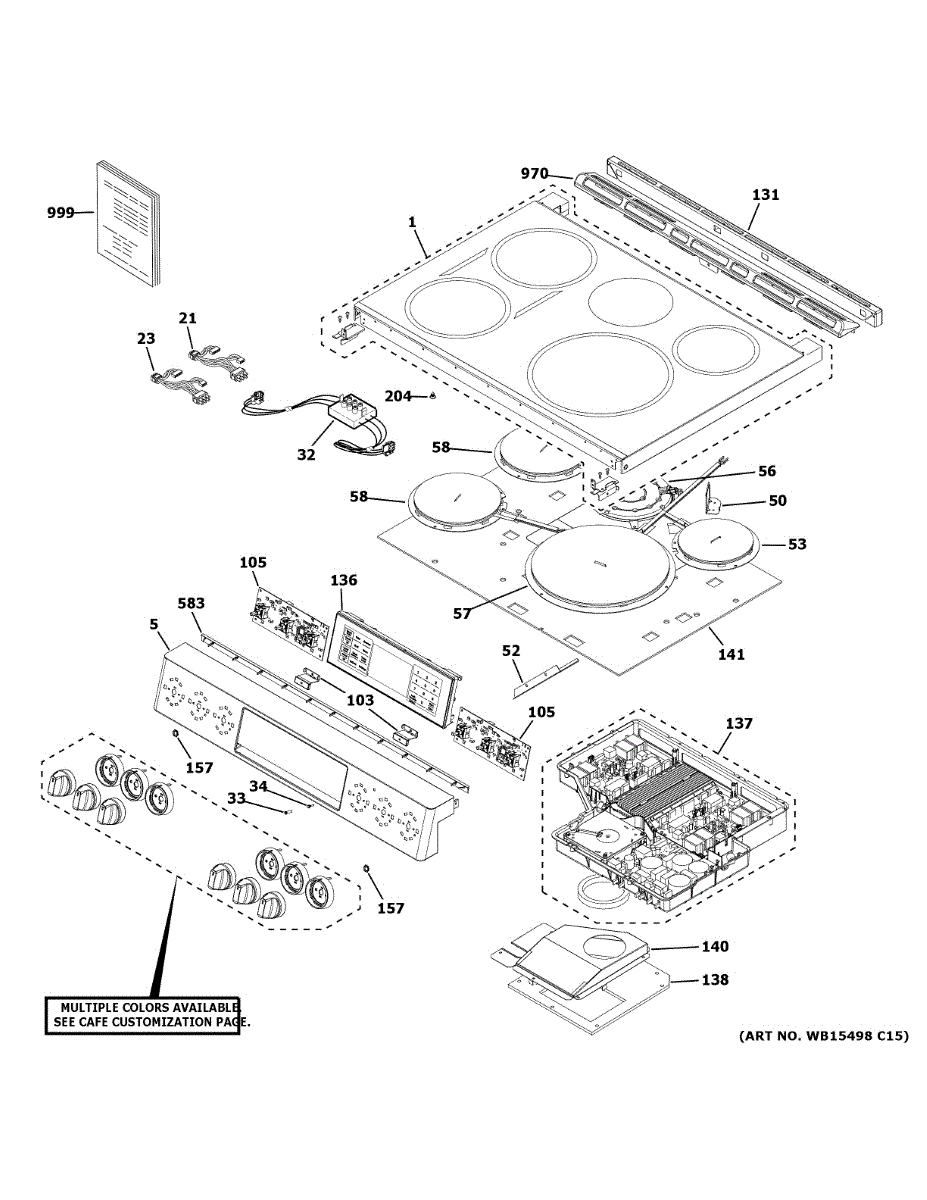

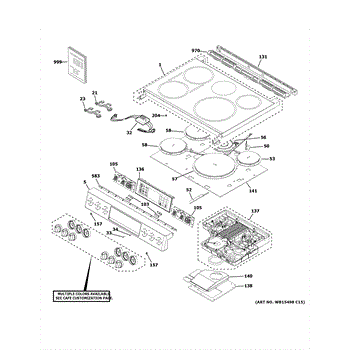

Parts for Ge CHS950P4M2W2: Control Panel & Cooktop Parts

The Range Top Glass and Front Support Kit is an OEM replacement part for GE electric ranges. As the protective surface above cooktop burners and the frame securing the glass panel, this kit plays an integral role.

Symptoms of a bad glass top and support include:

• Cracks or chips in the glass cooking surface
• Looseness, wobbling or movement of the glass panel
• Gaps appearing around the edges of the glass top

Over time, thermal expansion and contraction from cooking temperatures can cause the glass to weaken. Repeated scrubbing or impacts from cookware are also common causes of damage.

This genuine OEM GE part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

This hot surface indicator is the replacement indicator light that shows when an electric cooktop surface is still hot, helping prevent accidental burns and improving user awareness after cooking. Fits select electric ranges and cooktops. What it does:

• Illuminates when a cooktop heating element or radiant surface remains hot after use
• Signals residual heat even if the element is off, reducing burn risk
• Replaces a cracked, non-lighting, or intermittently working indicator light
• Works with the range/cooktop's surface control circuitry to display status

• Disconnect power to the appliance at the breaker before beginning any work
• Replacement typically involves removing the cooktop glass or control panel
• Handle the indicator and surrounding glass carefully to avoid damage or misalignment

This indicator sleeve is a small control-knob marker that restores a clear position marker and snug fit on the control shaft for reliable setting selection. It improves dial visibility and stabilizes the knob during use. What it does:

• Covers and centers the control shaft so the knob sits straight and turns smoothly
• Provides a visible pointer for selecting temperature or power settings
• Replaces cracked, worn or missing sleeves that make knob position hard to read
• Helps eliminate wobble or looseness between the knob and control shaft

• One indicator sleeve

• Disconnect power to the appliance before servicing
• Remove the control knob (pull straight off) to access the sleeve
• Press the sleeve onto the shaft by hand until fully seated; no special tools generally required
• If the knob or shaft is damaged, inspect and replace as needed for secure fit

This lower oven warming element heats the oven's warming/holding compartment so food stays warm until serving. Replaces a damaged or non-heating lower element to restore consistent low-temperature operation. What it does:

• Heats the oven's warming/lower compartment for holding cooked food
• Replaces elements that show visible damage, burn-through, or no heat output
• Helps restore even low-temperature performance when the warmer function fails
• Works with the oven's temperature control and safety circuits to provide steady heat

• One lower oven warming element

• Disconnect power at the breaker before beginning any repair
• Wear gloves; element edges and terminals may be sharp
• Verify proper wiring and secure terminal connections during installation

This induction cooktop element replaces a failed high-power burner to restore normal cooking performance on compatible induction ranges. It provides the heating coil assembly required for fast, responsive induction heating. What it does:

• Replaces the induction heating element that generates the magnetic field to heat cookware.
• Restores a burner that no longer heats, heats intermittently, or shows reduced power.
• Helps eliminate error conditions or cooktop lockouts caused by a faulty element.
• Matches the OEM wattage rating for high-output cooking performance.

• Disconnect power at the breaker before servicing; glass cooktops and wiring can be hazardous.
• Handle the glass surface and element assembly carefully to avoid cracks or damage.
• Installation may require removing the cooktop glass and disconnecting wiring—keep fasteners and wiring order noted.

This LED/encoder board kit replaces the control-panel electronics that manage the display lights and user input encoder so your range's front control responds correctly and the display indicators light as expected. What it does

• Powers and drives the control panel LED indicators so status lights and numeric displays illuminate
• Interprets rotary encoder/button input so knob turns and button presses register correctly
• Can resolve symptoms like blank or flickering display, unresponsive controls, or incorrect indicator lights
• Works as the electronic interface between the user controls and the main control board

• Disconnect power at the breaker before removing the oven/range control panel to avoid shock
• Use ESD precautions and handle the board by the edges to avoid static damage
• Keep track of hardware

This glass touch control panel assembly replaces a damaged or unresponsive oven/range control surface and restores user input and display clarity. It mounts to the front control area and houses the touch-sensitive board beneath the glass. What it does:

• Replaces cracked, scratched, or non-responsive glass touch controls so buttons respond correctly
• Restores control-board-mounted touch functions for bake, broil, timer, and other console commands
• Improves display readability by replacing cloudy or damaged glass over the control area
• Helps eliminate erratic or missing touch inputs caused by a failed glass/board assembly

• Disconnect power (unplug appliance or switch off circuit breaker) before beginning work
• Handle glass carefully to avoid breakage and use proper eye/hand protection
• Basic hand tools are usually required; panel mounts and connectors should be secured per OEM guidance

The Induction Control and Gasket Kit is an OEM part for GE induction ranges.

Causes of needing replacement include failure of internal circuitry over extended use, moisture penetration degrading surfaces, or accidental impacts damaging components.

Symptoms requiring attention are:

• Controls and displays unresponsive or faulty
• Temperature calibration malfunctioning
• Induction zones permanently stuck in power modes
• Fault codes indicating electrical or sensor issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This induction duct gasket seals the air/heat duct on compatible induction ranges to help maintain proper airflow and reduce heat or steam leakage. It restores the factory seal for safer, more reliable cooktop operation. What it does:

• Seals the duct path beneath the cooktop to help direct hot air and exhaust where intended
• Reduces heat and steam escape that can cause nearby panels to overheat or discolor
• Helps prevent smoke, burning smells, or combustion of debris that may collect in gaps
• Supports proper cooling/venting of internal components for consistent performance

• Disconnect power to the appliance before starting any repair
• Remove cooktop or access panels to reach the duct area
• Clean mating surfaces of old gasket material, grease, and debris before installing the replacement
• Use appropriate hand tools and avoid sharp bending or crushing the gasket during placement

This fastener nut secures appliance components and wiring connections to keep assemblies stable and aligned during normal operation. It's a small replacement part that restores proper fastening where the original nut is missing, stripped, or damaged. What it does:

• Secures mounting studs, terminals, or brackets to prevent parts from coming loose
• Restores a solid mechanical and electrical connection where a worn or missing nut causes poor contact
• Helps stop vibration-related noise or movement from loose assemblies
• Used wherever a matching threaded stud or bolt requires a retained fastener

• One replacement nut (quantity: 1)

• Disconnect power and water before servicing the appliance
• Start threads by hand to avoid cross-threading; then tighten with the correct size wrench or socket
• Tighten securely but do not overtighten—over-torquing can strip threads or damage components
• Replace if threads are damaged, corroded, or if the nut no longer holds securely

This is a replacement 8-18 x 5/16 machine screw used to secure appliance panels and components. It restores proper fastener fit so parts stay mounted and operate safely. What it does:

• Fastens panels, brackets, and small components where an 8-18 x 5/16 screw is specified
• Prevents loose parts, rattling, and misalignment caused by missing or worn screws
• Provides the correct thread size and length for reliable reattachment
• Works wherever the OEM calls for this specific 8-18 x 5/16 screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or mounting surfaces
• If replacing multiple fasteners, use matching screws to maintain proper fit and function

The Front Gasket Assembly is an OEM replacement part for GE electric ranges. As the seal between the range body and control panel, the front gasket plays a critical role in containing heat and preventing spills from entering internal components.

Symptoms of a bad front gasket include:

• Excess heat visible escaping around the control panel
• Drips or spills entering behind the control panel
• Visible cracks, splits, or openings in the gasket seal

Causes of a bad gasket can be normal wear from repeated cleaning and high-heat cooking. Hard impacts or forced openings may also damage the integrity of the seal over time.

This OEM GE part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.
