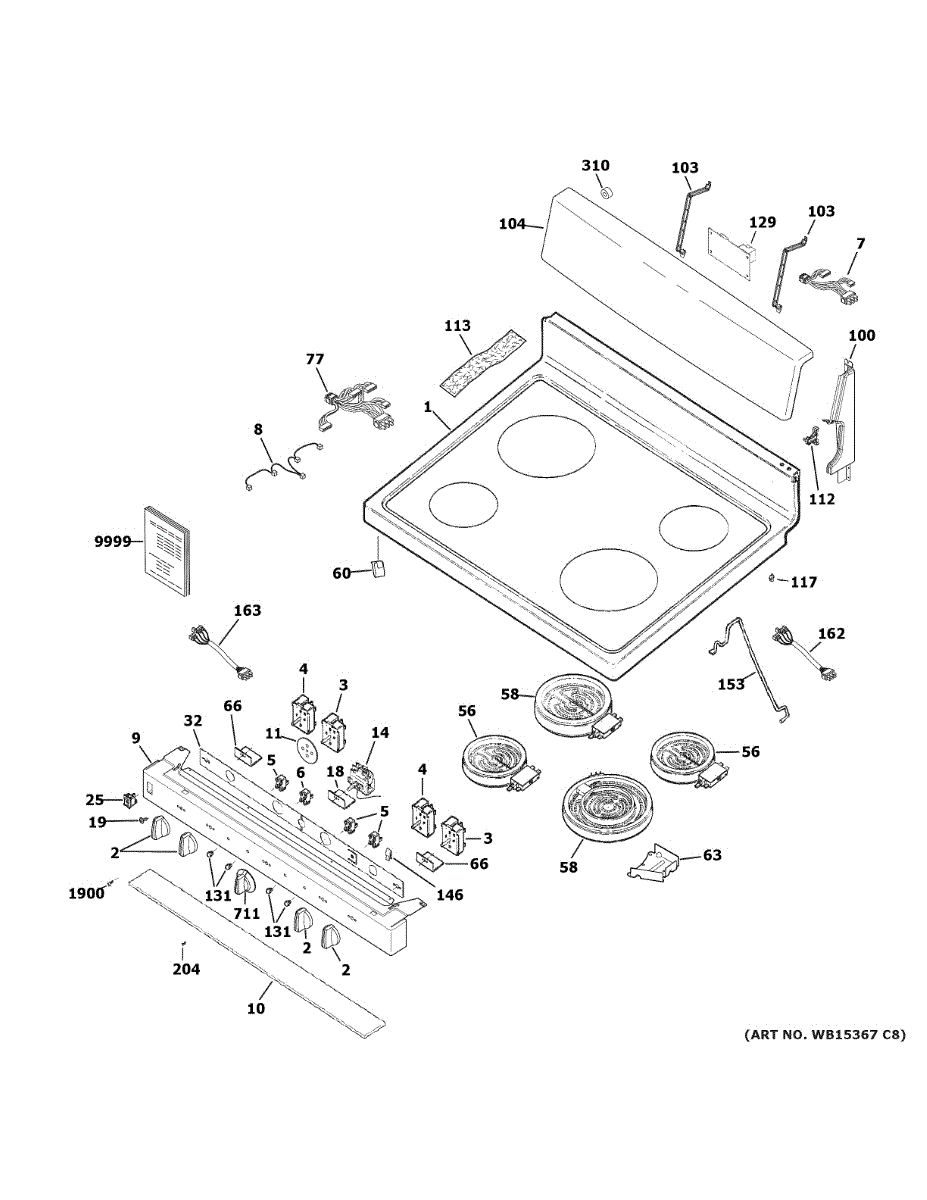

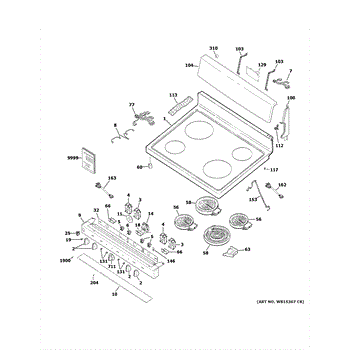

Parts for Ge JB480SM2SS: Control Panel & Cooktop Parts

This range top and glass assembly replaces a cracked or damaged cooktop surface to restore a smooth, sealed cooking area and proper heat containment. It provides the finished glass surface and surrounding trim for safe top-mounted cooking. What it does:

• Replaces damaged or cracked cooktop glass to eliminate sharp edges and restore a flat cooking surface
• Restores a sealed perimeter so cookware sits evenly and burners heat predictably
• Helps prevent heat and spills from reaching internal components beneath the cooktop
• Useful when the glass is visibly broken, chipped, or loose from the range frame

• One range top and glass assembly

• Disconnect power to the appliance before attempting removal or installation
• Handle the glass carefully; wear cut-resistant gloves and eye protection
• May require removal of burner components and fasteners to lift out the old top; keep hardware organized for reassembly

This infinite switch controls the heat of an electric range or cooktop surface element by cycling power at your selected setting. Replace it to restore precise knob-controlled heating when a burner won't heat, stays on high, or won't shut off.

• Regulates power to a single surface element by cycling on/off to maintain the chosen temperature
• Interfaces with the control knob and the burner's circuit to deliver the selected heat level
• Common failure symptoms: element won't heat, only runs on high, won't turn off, or heats inconsistently
• Knob turning without response or noticeable "clicks" can indicate a worn shaft/contacts in the switch

• Disconnect power at the breaker before servicing; this is a high-voltage component
• Pull off the burner knob and access the control panel; note wire positions or take a photo, then transfer wires to matching terminals on the new switch
• Mount the switch, reassemble, restore power, and test each heat setting

This surface element control switch regulates power to a cooktop/range burner. Replacing a failed switch restores smooth, adjustable heat and corrects issues such as a burner stuck on high, not heating, or cycling erratically.

• Regulates power cycling to the surface burner to achieve the selected heat level
• Provides variable low-to-high settings via the control knob
• Typical failure symptoms: burner won't heat, only heats on high, won't turn off, or heat is inconsistent
• Helps restore precise temperature control on the affected burner

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Pull off the burner knob and open the control panel to access the switch
• Note wire positions and transfer them to the new switch one at a time
• Secure the switch, reassemble the panel/knob, and test all heat settings

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This pilot lamp is the small indicator light that shows when a function or surface element is active, giving a clear visual cue for operation and status. It replaces a burned-out or broken indicator lamp to restore visible operation feedback. What it does

• Lights to indicate when a control, burner or other function is energized
• Replaces a dim, flickering or non-working indicator light
• Helps you quickly verify power or status at a glance
• Compatible with panels and controls that accept the OEM pilot lamp design

• Disconnect power to the appliance before starting any work to avoid shock
• Access usually requires removing the control panel or bezel; keep track of fasteners
• Handle the lamp carefully — glass and terminals are fragile

This lamp pilot harness is the factory-style wiring assembly that powers the pilot/light indicator on the control panel. It delivers a direct, plug-ready connection to restore a working pilot lamp and clear visual status. What it does:

• Provides the electrical connection between the control board and the pilot/lamp assembly
• Restores a non-lit or intermittent pilot/lamp indicator caused by a damaged or missing harness
• Maintains proper connector alignment to help prevent loose or shorted wiring
• Matches OEM routing and connector types for a reliable fit

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Route and secure the harness away from heat sources and moving parts

Designed for the self-clean cycle, this thermostat monitors oven temperature and opens the circuit if overheating occurs to protect your range. Replace it to restore reliable self-clean performance and safety shutoff when the original thermostat fails. What it does:

• Monitors oven cavity temperature during the Self Clean cycle and opens the circuit if temperatures become excessive
• Protects the appliance by interrupting power to the heating circuit when an over-temperature condition is detected
• If faulty, you may notice Self Clean won't start or ends early, over-temperature error/beep codes, or no heat after a self-clean event
• Dedicated to self-clean safety; it does not regulate everyday baking temperatures

• 1 self-clean thermostat

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Allow the oven to cool completely—surfaces may remain extremely hot after a self-clean cycle
• Access and mounting vary by model; note wire positions and transfer them one at a time to the new thermostat
• Inspect wiring/terminals for heat damage and replace any burnt connectors before reassembly

This carton cover thermostat senses and controls temperature at the refrigerator/freezer carton cover to help maintain proper cooling function. It replaces a failed or intermittent thermostat to restore correct temperature regulation. What it does:

• Detects temperature near the carton cover and signals the control to start or stop cooling
• Helps prevent over-cooling or under-cooling in the compartment when functioning correctly
• Commonly diagnosed when temperature is inconsistent, compartment is too warm, or cooling cycles irregularly
• Matches the OEM mounting and connector style for direct replacement

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access usually requires removing interior panels or the carton cover; keep fasteners for reassembly
• Handle the thermostat and sensor lead carefully to avoid damage; route wires clear of moving parts

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

This Haliant 6" heating element replaces a damaged or worn oven element to restore proper cooking and baking performance. It provides the heating surface needed for even temperature recovery and consistent results. What it does:

• Heats during bake/broil cycles to generate oven cooking temperatures
• Restores heat when a failed element causes little or no oven heat
• Helps correct uneven cooking or long preheat times caused by element failure
• Matches the OEM Haliant design for fit and function when compatible

• Disconnect power to the appliance before servicing to avoid shock
• Allow the appliance to cool fully before touching the element or inside surfaces
• Replace using proper mounting hardware and electrical connections; ensure secure, tight terminal connections

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This left-side end support secures and aligns the outer trim on compatible appliances, providing a finished look and stable panel fit in Dark Dorian Gray. It restores proper bezel alignment and reduces movement or gaps. What it does:

• Supports and positions the outer trim/panel at the left end to keep panels aligned
• Holds the bezel securely to prevent rattling or loose edges
• Helps maintain a flush appearance and proper door/panel fit
• Commonly replaced when trim is cracked, broken, or no longer holds tight

• Disconnect power to the appliance before beginning any repair
• Remove trim/panel carefully to avoid scratching the finish; keep track of fasteners
• Install with existing screws or hardware; do not overtighten
• Test fit and alignment before reassembling all trim pieces.

This control bracket secures the appliance control assembly or console in place, keeping the control board and user interface stable for reliable operation and proper button/knob alignment. What it does:

• Mounts and supports the control board or console to the cabinet or frame
• Prevents the control assembly from shifting, vibrating, or rubbing against other components
• Helps maintain proper button/knob alignment and electrical connection stability
• Can cause a loose or misaligned control panel or intermittent button response when damaged or missing

• One control mounting bracket

• Disconnect power to the appliance before starting any repair
• Handle control board and wiring with care to avoid ESD or connector damage
• Use the original fasteners or recommended replacements and torque evenly

This self-clean timer assembly controls the oven's self-clean cycle and basic timing functions so the range can complete programmed clean cycles reliably. Replace a failed timer to restore correct cycle timing and control response. What it does:

• Selects and times the self-clean cycle and related oven functions.
• Advances or stops the self-clean sequence; a bad timer can prevent the cycle from starting or finishing.
• Restores accurate timing when oven bake/clean settings act erratically or the timer won't advance.
• Works as the mechanical/electrical timing control used by the range's self-clean feature.

• Disconnect power to the appliance before beginning any service to avoid electrical shock.
• Installation typically requires removing the control panel or console; handle internal components and connectors carefully.
• Do not operate the oven with panels off or safety interlocks bypassed.

This replacement indicator light lens covers the lamp opening on the control panel, protecting the opening while keeping the ON indicator easy to see. Replacing a cracked or missing lens restores visibility and a finished look.

• Covers and protects the indicator lamp opening in the panel
• Diffuses light so the appliance's ON status is easy to see
• Helps keep dust, grease, and moisture out of the control area
• Common signs to replace: lens cracked, missing, cloudy/discolored, or won't stay seated

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the panel area; release the old lens tabs or retainer from the back side and remove
• Align and press the new lens fully into the opening until it sits flush
• Restore power and verify the indicator illuminates correctly

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This small rubber grommet cushions and secures a range or oven door handle, helping keep the handle stable and reducing wear where the handle meets the door. It restores a snug fit and quiet operation. What it does:

• Acts as a protective bushing between the handle and door to prevent metal-on-metal contact
• Helps stop a loose, wobbly, or rattling handle
• Reduces wear on mounting holes and finish around the handle
• Provides a tight, vibration-dampening fit for the handle assembly

• Disconnect power to the appliance before starting any work
• Typically a simple press-fit replacement; handle removal may be required for access
• Inspect surrounding fasteners and mounting surfaces; replace damaged parts as needed
