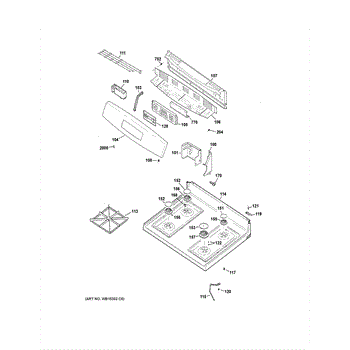

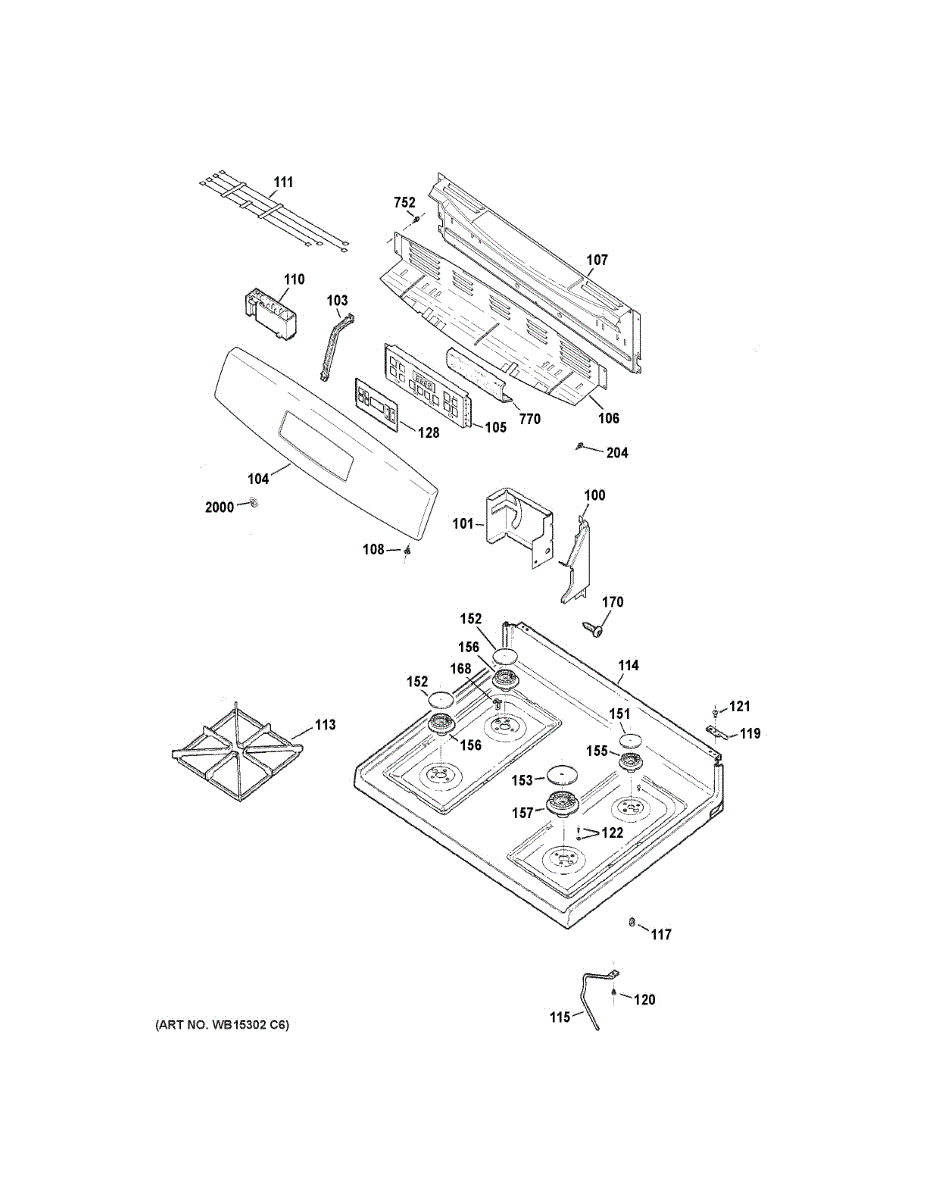

Parts for Ge JGB630REF3SS: Control Panel & Cooktop Parts

This trim control is the finished bezel that mounts around the control panel to restore appearance and protect buttons and displays. It gives a clean factory look and helps prevent dirt and moisture from reaching the controls. What it does:

• Replaces a cracked, scratched or faded control panel trim to improve appearance
• Protects underlying control buttons and electronic components from spills and debris
• Keeps the control area sealed for smoother button operation and easier cleaning
• Restores proper alignment of the control bezel so buttons and indicators sit correctly

• Disconnect power to the appliance before beginning any work
• Typically secures with screws or snap clips; use basic hand tools and avoid over-tightening
• Handle carefully to avoid scratching the finish during installation

The Control Oven TO9 is an OEM component specifically designed for GE gas ranges. This control board oversees critical oven functions including temperature selection, timers, and safety features.

Causes of a bad control board include component failures or degradation over time due to heat exposure during normal oven operations. Physical damage from drops or impacts can also affect board integrity.

Symptoms of an incompatible control board include:

• Oven not reaching or maintaining set temperatures
• Timers malfunctioning or failing to count down
• Safety issues arise if components malfunction

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


This part includes replacement electrodes and a harness. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace damaged or defective electrodes on multiple models of gas powered stoves and ranges. These electrodes connect the spark igniters to the appliance in order to allow the gas cooktop to be ignited. If the spark igniters are not lighting, the electrodes may be the issue. Over time, electrodes can become worn or damaged and may require replacement. For safety purposes, always ensure the stove is completely disconnected from power and gas before starting the any repair work. Proper tools will be required to complete this process. Please make sure to follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install these electrodes and harness, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this electrodes and harness kit is suitable for use on several different models of gas ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Package of 12

A replacement control insulation piece that helps protect the appliance control assembly from heat and abrasion. Restores the thermal barrier behind the control panel to help prevent heat-related control damage. What it does:

• Shields the control board and wiring from oven/burner heat and radiant heat buildup.
• Helps prevent heat-related failures, melting, or damage to the control assembly.
• Reduces risk of shorting or chafing where wiring passes near the control area.
• Can reduce intermittent control issues that occur when components overheat.

• One control insulation piece

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the console/control panel to access and replace the insulation.
• Align the insulation carefully; secure any clips or adhesive exactly as OEM design specifies.
• If insulation is brittle, torn, or shows heat damage elsewhere, inspect adjacent components and wiring for damage.
