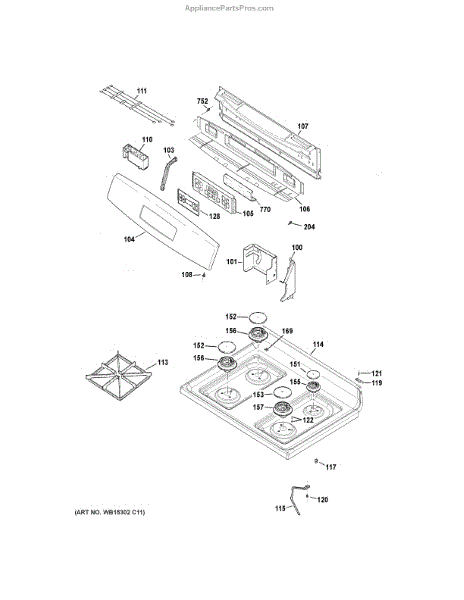

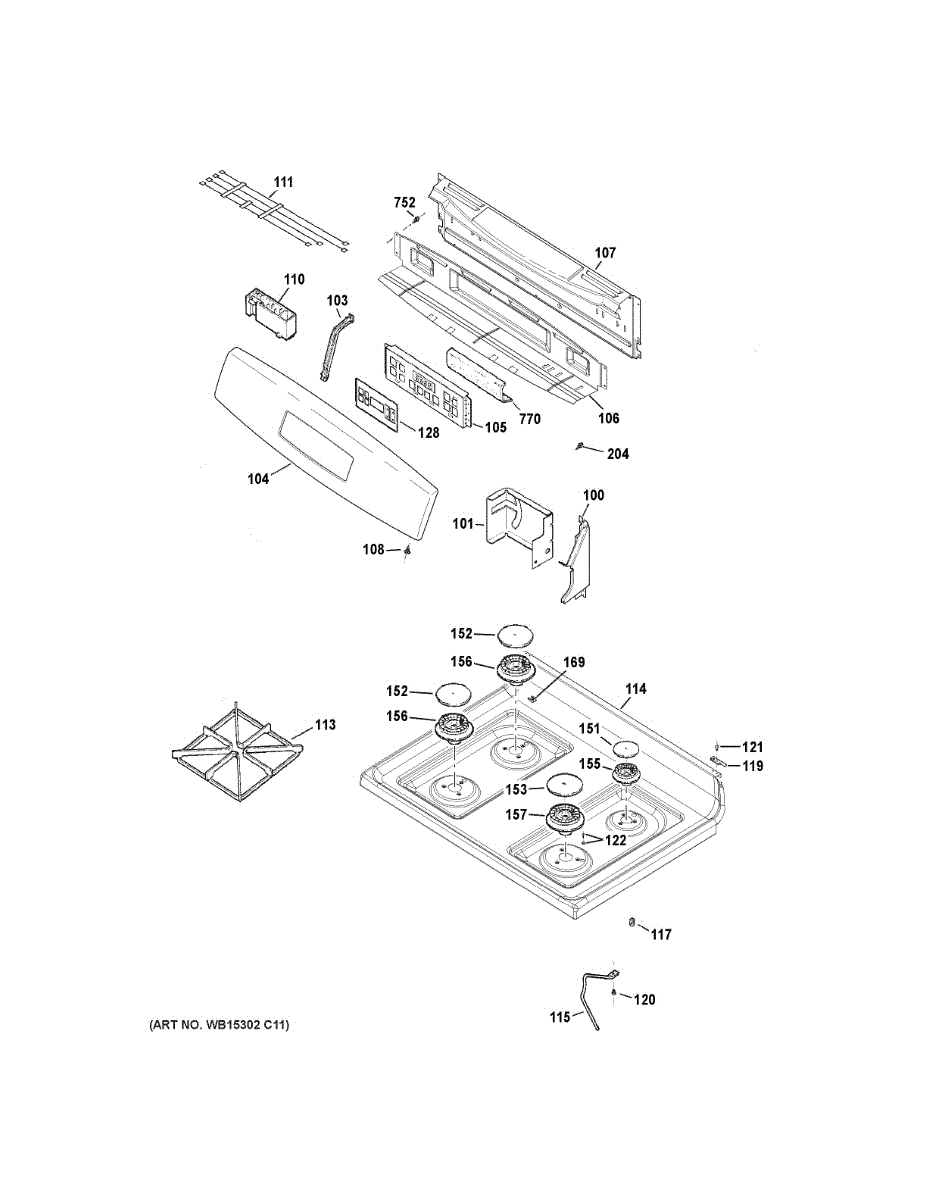

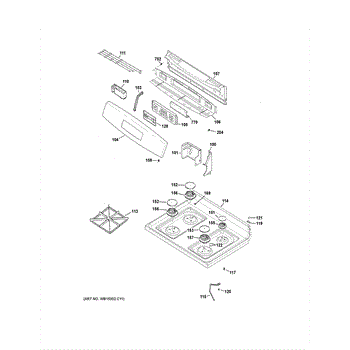

Parts for Ge JGB635DEK1CC: Control Panel & Cooktop Parts

The Control Oven TO9 is an OEM component specifically designed for GE gas ranges. This control board oversees critical oven functions including temperature selection, timers, and safety features.

Causes of a bad control board include component failures or degradation over time due to heat exposure during normal oven operations. Physical damage from drops or impacts can also affect board integrity.

Symptoms of an incompatible control board include:

• Oven not reaching or maintaining set temperatures
• Timers malfunctioning or failing to count down
• Safety issues arise if components malfunction

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


The HV Electrodes and Harness Assembly is an OEM part for GE gas ranges. It transmits high-voltage electricity to strategically placed components.

Symptoms of a bad HV electrode and harness include:

• Unpredictable or incomplete heating within oven cavity sections
• Error codes related to HV delivery issues preventing bake/broil
• Frayed, loose, or water-damaged wiring presenting shock hazards

Causes involve normal wear to materials transmitting continuous high voltage. Exposure to condensation or food spillages can damage insulation prematurely as well.

This part is also compatible with Hotpoint, RCA, and select Kenmore models.

This surface burner grate assembly replaces the hairpin-style grate used on select gas ranges and cooktops. It restores a stable, level cooking surface so pots and pans sit securely over the burner.

• Supports cookware over the flame and helps center pots for even heating
• Hairpin profile and footprint provide proper burner clearance on compatible models
• Replaces a cracked, warped, chipped, or broken grate that rocks or won't sit flat
• Common symptoms: unstable cookware, uneven pan support, or flaking finish

• Turn off all burners and allow the cooktop to cool completely before servicing
• Lift off the old grate and clean the cooktop support area
• Position the new grate so all feet rest flat and it sits level
• Verify proper clearance to burner caps and igniters before use

This range top is the cooktop surface replacement that restores a flat, finished surface for electric ranges. It provides a stable base for burners and makes cleanup easier compared to damaged or warped tops. What it does:

• Covers the range opening and supports surface burners or elements
• Keeps spills and splatters off internal components to protect wiring and controls
• Helps maintain proper alignment of burners and trim pieces for even heating
• Commonly replaced when the surface is cracked, warped, rusted, or cosmetically damaged

• Replacement requires removing the cooktop and disconnecting power; turn off and unplug the appliance or shut off the breaker before starting
• Handle sheet-metal edges carefully to avoid cuts; wear gloves and eye protection
• May require detaching burners, trim, and/or support brackets—keep fasteners organized for reassembly

This Cooktop support is a replacement mounting bracket that secures and stabilizes the cooktop assembly for safe, even cooking. Restores proper alignment and reduces wobble or movement of the cooktop surface. What it does:

• Physically supports the cooktop assembly and keeps it seated in the countertop opening.
• Helps maintain correct gap and alignment between the cooktop and surrounding trim.
• Reduces unwanted movement, rocking or rattling during use.
• Contributes to safe operation by holding cooktop components in their intended position.

• Installation requires access beneath or around the cooktop; remove power before servicing.
• Keep fasteners and mounting surfaces clean; replace any corroded hardware as needed.
• Observe all safety precautions when working with sharp sheet-metal edges.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Package of 12

A replacement control insulation piece that helps protect the appliance control assembly from heat and abrasion. Restores the thermal barrier behind the control panel to help prevent heat-related control damage. What it does:

• Shields the control board and wiring from oven/burner heat and radiant heat buildup.
• Helps prevent heat-related failures, melting, or damage to the control assembly.
• Reduces risk of shorting or chafing where wiring passes near the control area.
• Can reduce intermittent control issues that occur when components overheat.

• One control insulation piece

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the console/control panel to access and replace the insulation.
• Align the insulation carefully; secure any clips or adhesive exactly as OEM design specifies.
• If insulation is brittle, torn, or shows heat damage elsewhere, inspect adjacent components and wiring for damage.
