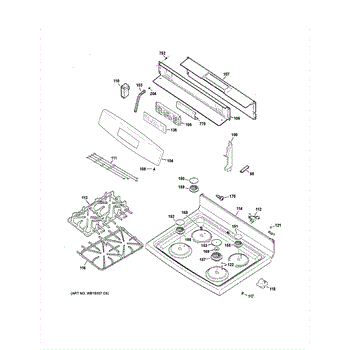

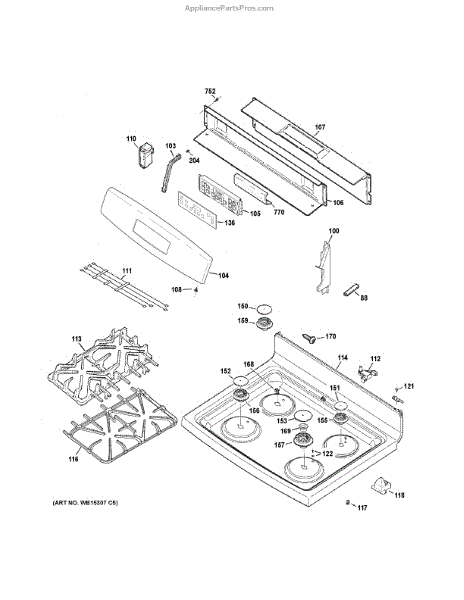

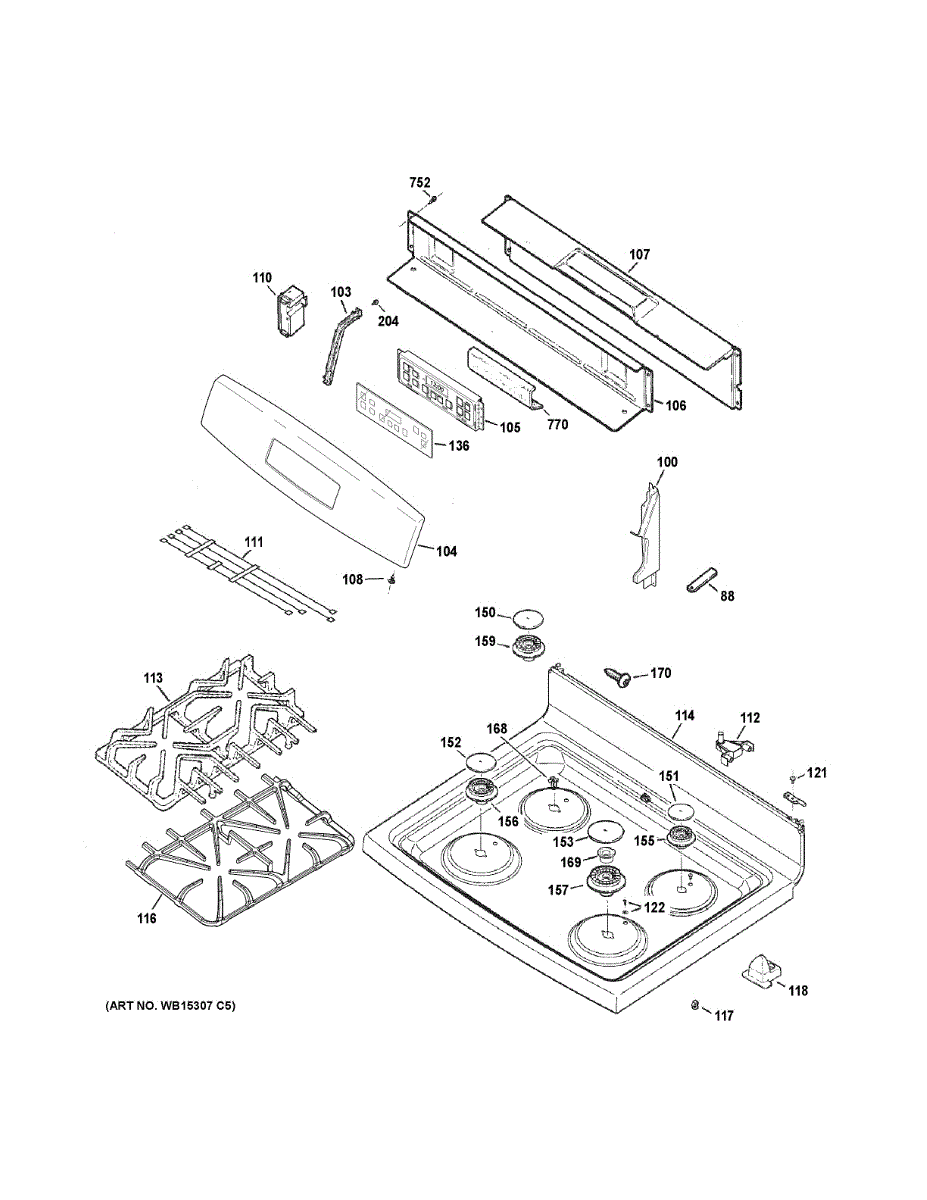

Parts for Ge JGB640DEF4WW: Control Panel & Cooktop Parts

The Control Oven TO9 is an OEM component specifically designed for GE gas ranges. This control board oversees critical oven functions including temperature selection, timers, and safety features.

Causes of a bad control board include component failures or degradation over time due to heat exposure during normal oven operations. Physical damage from drops or impacts can also affect board integrity.

Symptoms of an incompatible control board include:

• Oven not reaching or maintaining set temperatures
• Timers malfunctioning or failing to count down
• Safety issues arise if components malfunction

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


This part includes replacement electrodes and a harness. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace damaged or defective electrodes on multiple models of gas powered stoves and ranges. These electrodes connect the spark igniters to the appliance in order to allow the gas cooktop to be ignited. If the spark igniters are not lighting, the electrodes may be the issue. Over time, electrodes can become worn or damaged and may require replacement. For safety purposes, always ensure the stove is completely disconnected from power and gas before starting the any repair work. Proper tools will be required to complete this process. Please make sure to follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install these electrodes and harness, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this electrodes and harness kit is suitable for use on several different models of gas ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

This left-side burner grate is a factory-style replacement that supports cookware and restores a stable cooking surface on your cooktop. It helps maintain proper pot alignment and safe, consistent contact with the burner. What it does:

• Replaces a cracked, warped, or chipped left-side cooktop grate
• Provides a stable platform to prevent wobbling or tipping of pots and pans
• Ensures correct clearance and coverage over the burner for proper flame/contact
• Helps prevent cookware from scratching the cooktop surface

• Ensure the cooktop is completely cool and all controls are off before installing
• Lift out the old grate and set the replacement into place, aligning feet with support points
• No special tools typically required; handle carefully to avoid chipping enamel
• Inspect surrounding burner parts for damage and replace if cracked or excessively worn

This cast cooktop grate replaces a damaged or worn right-side burner support, restoring a stable surface for pots and pans and helping burners heat cookware evenly. Durable cast construction resists warping from high-heat cooking. What it does:

• Supports cookware over the right burner so pots and pans sit level while cooking
• Provides a stable, heat-resistant surface that withstands regular stovetop use
• Helps maintain proper burner flame contact and consistent cooking performance
• Replaces cracked, chipped or misshapen grates that can cause instability or uneven heating

• Replace only when cooktop is cool and all controls are off; handle grate carefully—cast parts can be heavy
• No tools typically required; simply lift out the old grate and set the replacement in position
• Clean grate with non-abrasive cleaners; avoid harsh chemicals that may damage finishes

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Mounting screw for end caps.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Package of 12

A replacement control insulation piece that helps protect the appliance control assembly from heat and abrasion. Restores the thermal barrier behind the control panel to help prevent heat-related control damage. What it does:

• Shields the control board and wiring from oven/burner heat and radiant heat buildup.
• Helps prevent heat-related failures, melting, or damage to the control assembly.
• Reduces risk of shorting or chafing where wiring passes near the control area.
• Can reduce intermittent control issues that occur when components overheat.

• One control insulation piece

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the console/control panel to access and replace the insulation.
• Align the insulation carefully; secure any clips or adhesive exactly as OEM design specifies.
• If insulation is brittle, torn, or shows heat damage elsewhere, inspect adjacent components and wiring for damage.
