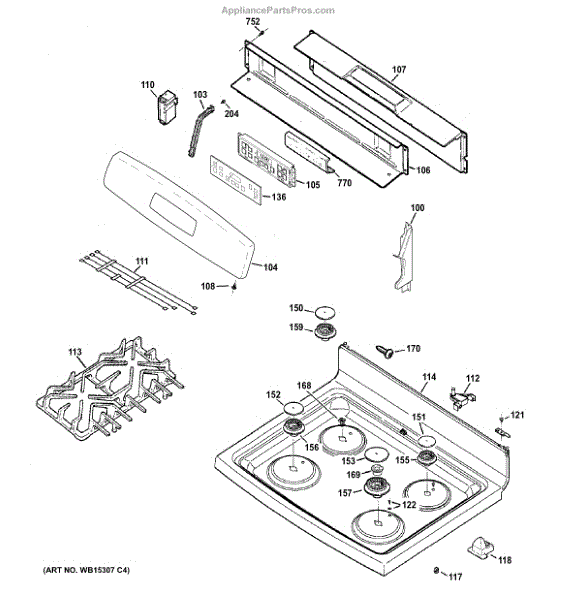

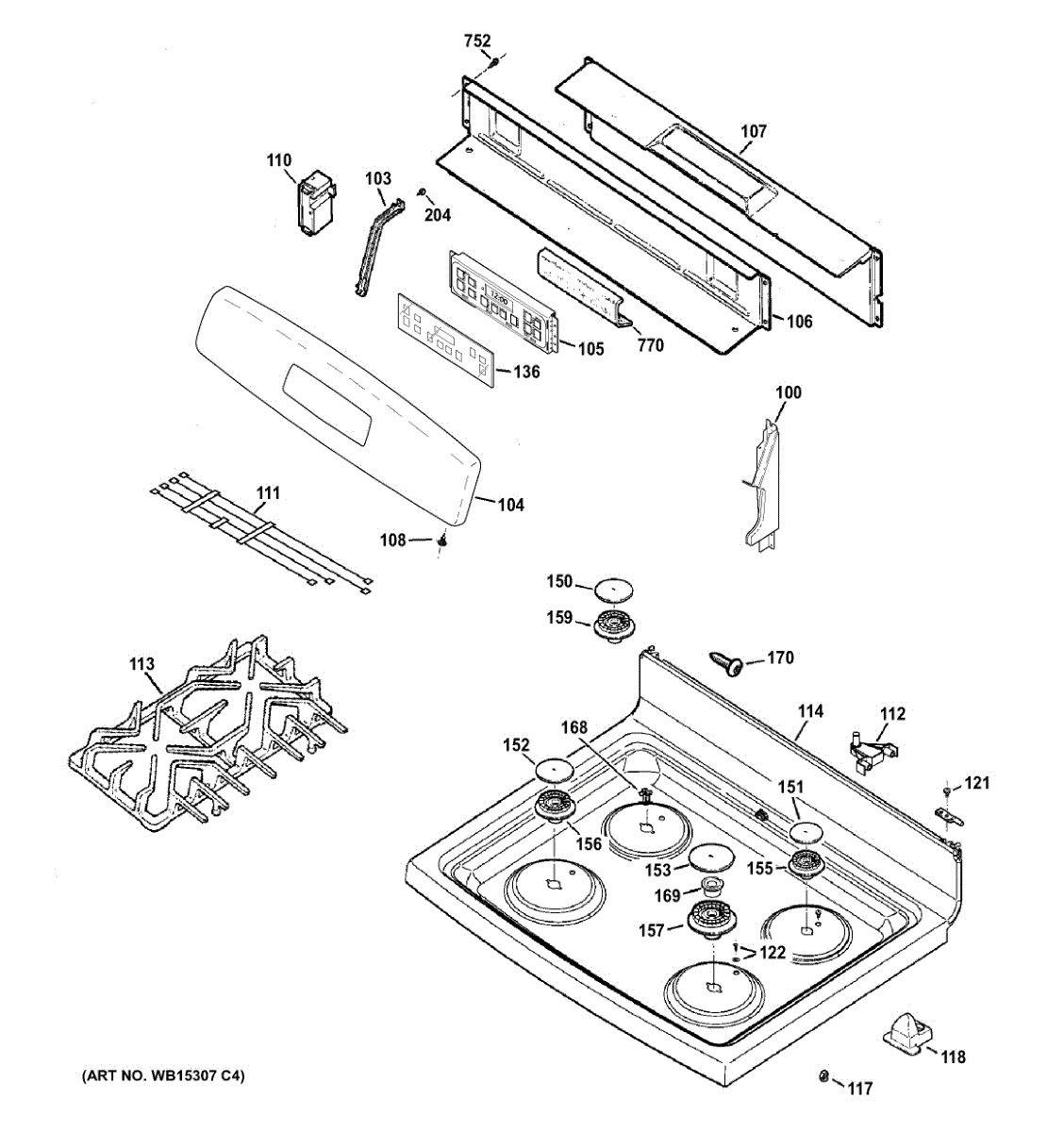

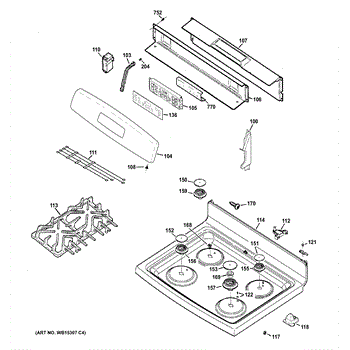

Parts for Ge JGB640SEF2SS: Control Panel & Cooktop Parts

The Control Oven TO9 is an OEM component specifically designed for GE gas ranges. This control board oversees critical oven functions including temperature selection, timers, and safety features.

Causes of a bad control board include component failures or degradation over time due to heat exposure during normal oven operations. Physical damage from drops or impacts can also affect board integrity.

Symptoms of an incompatible control board include:

• Oven not reaching or maintaining set temperatures
• Timers malfunctioning or failing to count down
• Safety issues arise if components malfunction

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Spark plug modules are a part required in the operation of ranges. The spark that comes from the spark module ignites a low-pressure flow of gas to the pilot light. It stays lit until the control in the oven's thermostat is off. With use, because of accidental damage, or as a result of misuse, the spark plug module may wear out or stop functioning correctly. If that happens, it will require a replacement.The spark plug module should emit a white spark between the metal edge of the burner and the igniter pin. If there is no spark or if the spark is yellow in color, the part is likely not working correctly. The repair of the spark plug module is simple. Unplug the range from the power supply before starting the replacement.This spark plug module is a genuine OEM replacement part. It is sourced directly from the manufacturer. The spark plug module is made of durable, high-quality materials. The replacement part is sold as an individual unit. The piece is compatible with different range models. It can be installed in appliances that were manufactured by brands including General Electric, Hotpoint, and RCA.

This part includes replacement electrodes and a harness. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace damaged or defective electrodes on multiple models of gas powered stoves and ranges. These electrodes connect the spark igniters to the appliance in order to allow the gas cooktop to be ignited. If the spark igniters are not lighting, the electrodes may be the issue. Over time, electrodes can become worn or damaged and may require replacement. For safety purposes, always ensure the stove is completely disconnected from power and gas before starting the any repair work. Proper tools will be required to complete this process. Please make sure to follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install these electrodes and harness, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this electrodes and harness kit is suitable for use on several different models of gas ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

This left-side burner grate is a factory-style replacement that supports cookware and restores a stable cooking surface on your cooktop. It helps maintain proper pot alignment and safe, consistent contact with the burner. What it does:

• Replaces a cracked, warped, or chipped left-side cooktop grate
• Provides a stable platform to prevent wobbling or tipping of pots and pans
• Ensures correct clearance and coverage over the burner for proper flame/contact
• Helps prevent cookware from scratching the cooktop surface

• Ensure the cooktop is completely cool and all controls are off before installing
• Lift out the old grate and set the replacement into place, aligning feet with support points
• No special tools typically required; handle carefully to avoid chipping enamel
• Inspect surrounding burner parts for damage and replace if cracked or excessively worn

This cast cooktop grate replaces a damaged or worn right-side burner support, restoring a stable surface for pots and pans and helping burners heat cookware evenly. Durable cast construction resists warping from high-heat cooking. What it does:

• Supports cookware over the right burner so pots and pans sit level while cooking
• Provides a stable, heat-resistant surface that withstands regular stovetop use
• Helps maintain proper burner flame contact and consistent cooking performance
• Replaces cracked, chipped or misshapen grates that can cause instability or uneven heating

• Replace only when cooktop is cool and all controls are off; handle grate carefully—cast parts can be heavy
• No tools typically required; simply lift out the old grate and set the replacement in position
• Clean grate with non-abrasive cleaners; avoid harsh chemicals that may damage finishes

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This precision machine screw secures appliance components. Replacing a missing or stripped fastener restores a solid, rattle-free fit and helps keep brackets, panels, trim, or control assemblies properly aligned for safe, reliable operation.

• Fastens appliance components such as brackets, panels, trim, or circuit/control assemblies
• Helps maintain proper alignment and stability of mounted parts
• Can reduce rattling, looseness, or gaps caused by missing or damaged hardware
• Direct replacement for a lost, corroded, or stripped screw

• Disconnect power and, if applicable, shut off gas. Allow the appliance to cool completely.
• Support the part being secured to avoid stress on glass or enamel surfaces.
• Start threads by hand to prevent cross-threading; tighten with the correct driver only.
• Do not overtighten. If mating threads are damaged, repair or replace the clip/bracket per OEM guidance.

This control panel overlay replaces a worn, faded, cracked or peeling T09 control graphic to restore readable button labels and the finished appearance of the appliance control surface. Ideal for cosmetic restoration and clearer controls. What it does:

• Provides the labeled button graphics and finished surface for the appliance control area.
• Restores legibility when button markings are faded, scratched, or worn.
• Replaces cracked, peeling or cosmetically damaged overlays that interfere with normal use.
• Helps protect the underlying control assembly from dirt and surface wear.

• Always disconnect power to the appliance before beginning any repair.
• Access typically requires removing the control console or front panel; keep track of fasteners and wiring.
• Peel away the old overlay carefully and clean the surface before installing the replacement; some overlays use adhesive or retainers.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Package of 12

A replacement control insulation piece that helps protect the appliance control assembly from heat and abrasion. Restores the thermal barrier behind the control panel to help prevent heat-related control damage. What it does:

• Shields the control board and wiring from oven/burner heat and radiant heat buildup.
• Helps prevent heat-related failures, melting, or damage to the control assembly.
• Reduces risk of shorting or chafing where wiring passes near the control area.
• Can reduce intermittent control issues that occur when components overheat.

• One control insulation piece

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the console/control panel to access and replace the insulation.
• Align the insulation carefully; secure any clips or adhesive exactly as OEM design specifies.
• If insulation is brittle, torn, or shows heat damage elsewhere, inspect adjacent components and wiring for damage.
