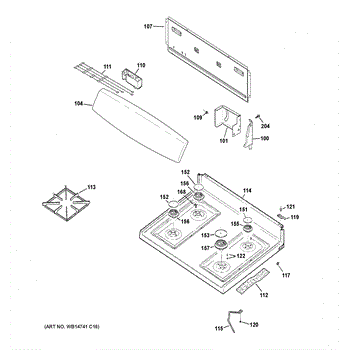

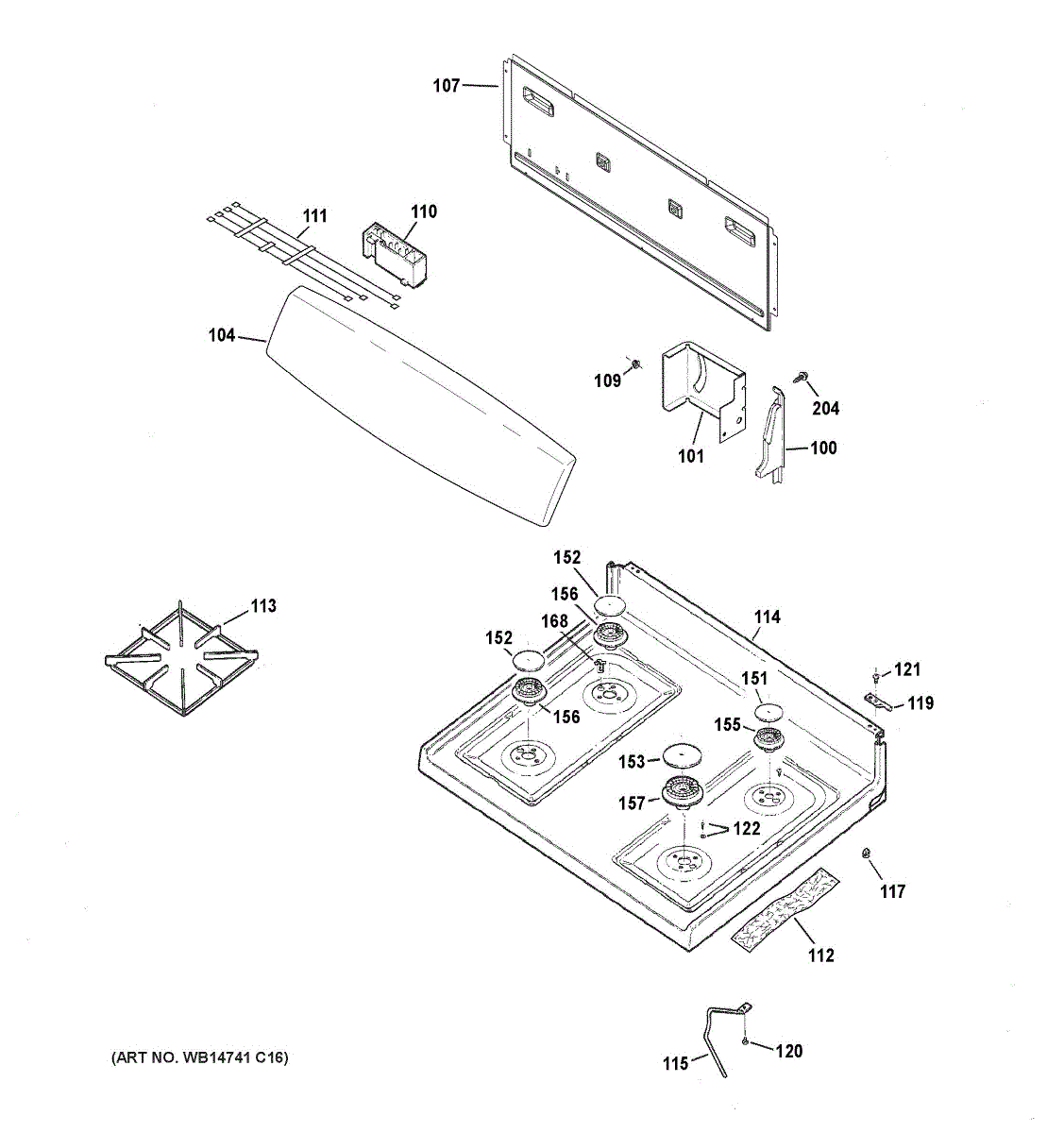

Parts for Ge JGBS30DEK1BB: Control Panel & Cooktop Parts

Includes 12 speed nuts.

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


The HV Electrodes and Harness Assembly is an OEM part for GE gas ranges. It transmits high-voltage electricity to strategically placed components.

Symptoms of a bad HV electrode and harness include:

• Unpredictable or incomplete heating within oven cavity sections
• Error codes related to HV delivery issues preventing bake/broil
• Frayed, loose, or water-damaged wiring presenting shock hazards

Causes involve normal wear to materials transmitting continuous high voltage. Exposure to condensation or food spillages can damage insulation prematurely as well.

This part is also compatible with Hotpoint, RCA, and select Kenmore models.

The Burner Grate is an OEM part for GE ranges. It provides a stable and durable surface to hold cookware above the burner, ensuring even heat distribution during cooking.

The burner grate should be replaced if it becomes damaged or worn out. Causes of a bad burner grate can include prolonged exposure to high heat, accidental impacts, or the enamel coating wearing off over time.

Symptoms of a bad burner grate include:

• The grate becoming unstable or wobbly
• Visible cracks or chips in the material
• Difficulty in positioning cookware securely
• Uneven cooking due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Cooktop support is a replacement mounting bracket that secures and stabilizes the cooktop assembly for safe, even cooking. Restores proper alignment and reduces wobble or movement of the cooktop surface. What it does:

• Physically supports the cooktop assembly and keeps it seated in the countertop opening.
• Helps maintain correct gap and alignment between the cooktop and surrounding trim.
• Reduces unwanted movement, rocking or rattling during use.
• Contributes to safe operation by holding cooktop components in their intended position.

• Installation requires access beneath or around the cooktop; remove power before servicing.
• Keep fasteners and mounting surfaces clean; replace any corroded hardware as needed.
• Observe all safety precautions when working with sharp sheet-metal edges.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This small burner cap sits atop the surface burner head on your gas range, focusing and evenly distributing the flame for steady heat and reliable ignition. Replacing a worn, warped, or missing cap restores proper flame shape and performance.

• Directs and spreads the flame pattern for even cooking
• Shields the burner head from spills and debris
• Helps ensure quick, consistent ignition when properly seated
• Replace if you see uneven/yellow flames, delayed ignition, sputtering, or poor simmer control

• Allow the cooktop to cool; turn off gas supply and power before servicing
• Lift off the old cap and clean the burner head/mating surface
• Seat the new cap centered and flush—do not force or use adhesives
• Test ignition and verify an even, blue flame; reseat if needed

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. This large cap measures about 3-1/2 inches in diameter.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
