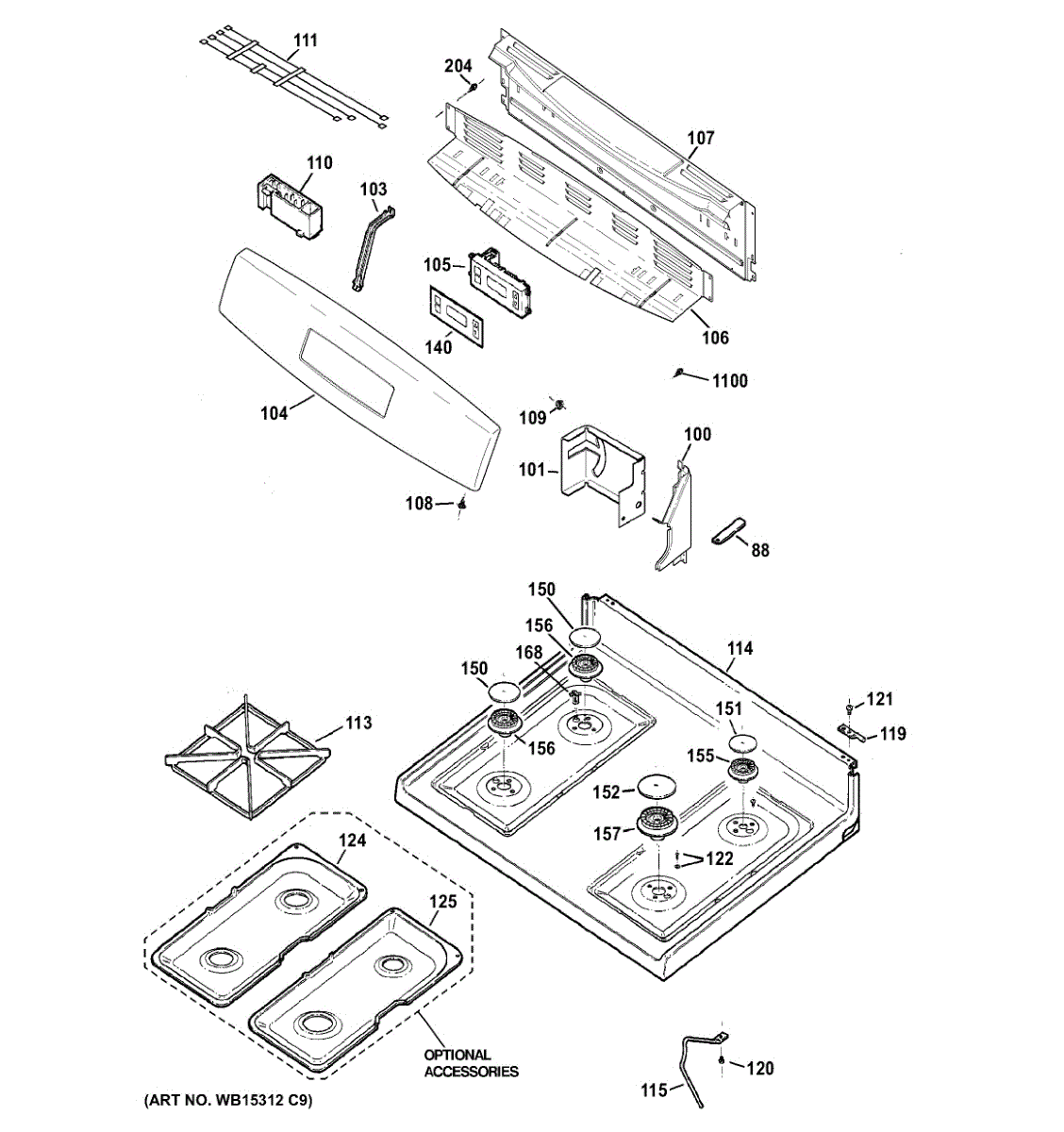

Parts for Ge JGBS60DEF1BB: Control Panel & Cooktop Parts

Includes 12 speed nuts.

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


This part includes replacement electrodes and a harness. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace damaged or defective electrodes on multiple models of gas powered stoves and ranges. These electrodes connect the spark igniters to the appliance in order to allow the gas cooktop to be ignited. If the spark igniters are not lighting, the electrodes may be the issue. Over time, electrodes can become worn or damaged and may require replacement. For safety purposes, always ensure the stove is completely disconnected from power and gas before starting the any repair work. Proper tools will be required to complete this process. Please make sure to follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install these electrodes and harness, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this electrodes and harness kit is suitable for use on several different models of gas ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

This surface burner grate assembly replaces the hairpin-style grate used on select gas ranges and cooktops. It restores a stable, level cooking surface so pots and pans sit securely over the burner.

• Supports cookware over the flame and helps center pots for even heating
• Hairpin profile and footprint provide proper burner clearance on compatible models
• Replaces a cracked, warped, chipped, or broken grate that rocks or won't sit flat
• Common symptoms: unstable cookware, uneven pan support, or flaking finish

• Turn off all burners and allow the cooktop to cool completely before servicing
• Lift off the old grate and clean the cooktop support area
• Position the new grate so all feet rest flat and it sits level
• Verify proper clearance to burner caps and igniters before use

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This precision machine screw secures appliance components. Replacing a missing or stripped fastener restores a solid, rattle-free fit and helps keep brackets, panels, trim, or control assemblies properly aligned for safe, reliable operation.

• Fastens appliance components such as brackets, panels, trim, or circuit/control assemblies
• Helps maintain proper alignment and stability of mounted parts
• Can reduce rattling, looseness, or gaps caused by missing or damaged hardware
• Direct replacement for a lost, corroded, or stripped screw

• Disconnect power and, if applicable, shut off gas. Allow the appliance to cool completely.
• Support the part being secured to avoid stress on glass or enamel surfaces.
• Start threads by hand to prevent cross-threading; tighten with the correct driver only.
• Do not overtighten. If mating threads are damaged, repair or replace the clip/bracket per OEM guidance.

The Double Drip Pan is an OEM part for GE ranges and stoves. It is specifically designed to sit beneath the burner elements, catching spills, drips, and crumbs that fall during cooking. This not only helps keep your stove clean but also reduces the risk of burn-on residues that can be difficult to remove and may cause smoke or odors during cooking.

Causes of a bad drip pan include accumulation of burnt food particles, rusting due to prolonged exposure to moisture, and physical damage such as warping or cracking.

Symptoms of a bad double drip pan include:

• Persistent stains and residues that are hard to clean
• Rust or corrosion that can transfer to other parts of the stove
• Inefficient heating due to uneven surfaces affecting pan stability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Double Drip Pan is an OEM part for GE ranges. This component is located beneath the burners and is designed to catch spills, drips, and other cooking residues, helping to keep the stove clean and preventing potential damage to the internal components of the range. It features a double design to accommodate two burners simultaneously. This drip pan measures approximately 8 inches wide by 17 inches deep.

You should replace the double drip pan if it becomes damaged, corroded, or excessively dirty to the point where it can no longer be cleaned effectively. Causes of a bad drip pan can include exposure to high heat, spills of acidic or corrosive substances, or general wear and tear over time.

Symptoms of a bad double drip pan include:

• Visible rust or corrosion
• Holes or cracks in the pan
• Persistent residue or buildup that cannot be removed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The OVERLAY T09 is an OEM part for GE gas ranges. Located at the top of the range above the cooktop, the overlay provides an aesthetic finishing touch.

Causes of a bad overlay include warping or discoloration from heat exposure over time.

Symptoms of a bad overlay include:

• Cracks, gaps or peeled sections of the surface finish
• Exposed raw edges or interior insulation
• Inability to properly mount range controls

This OEM GE replacement part is also compatible with Hotpoint, RCA and some Kenmore gas range models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Size: 8 - 18 ab hxw 5/8 s
