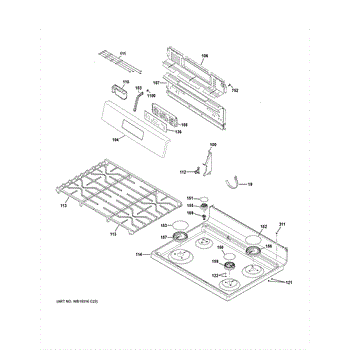

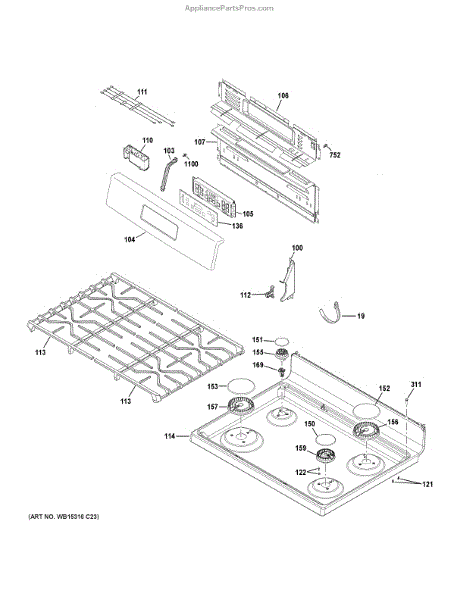

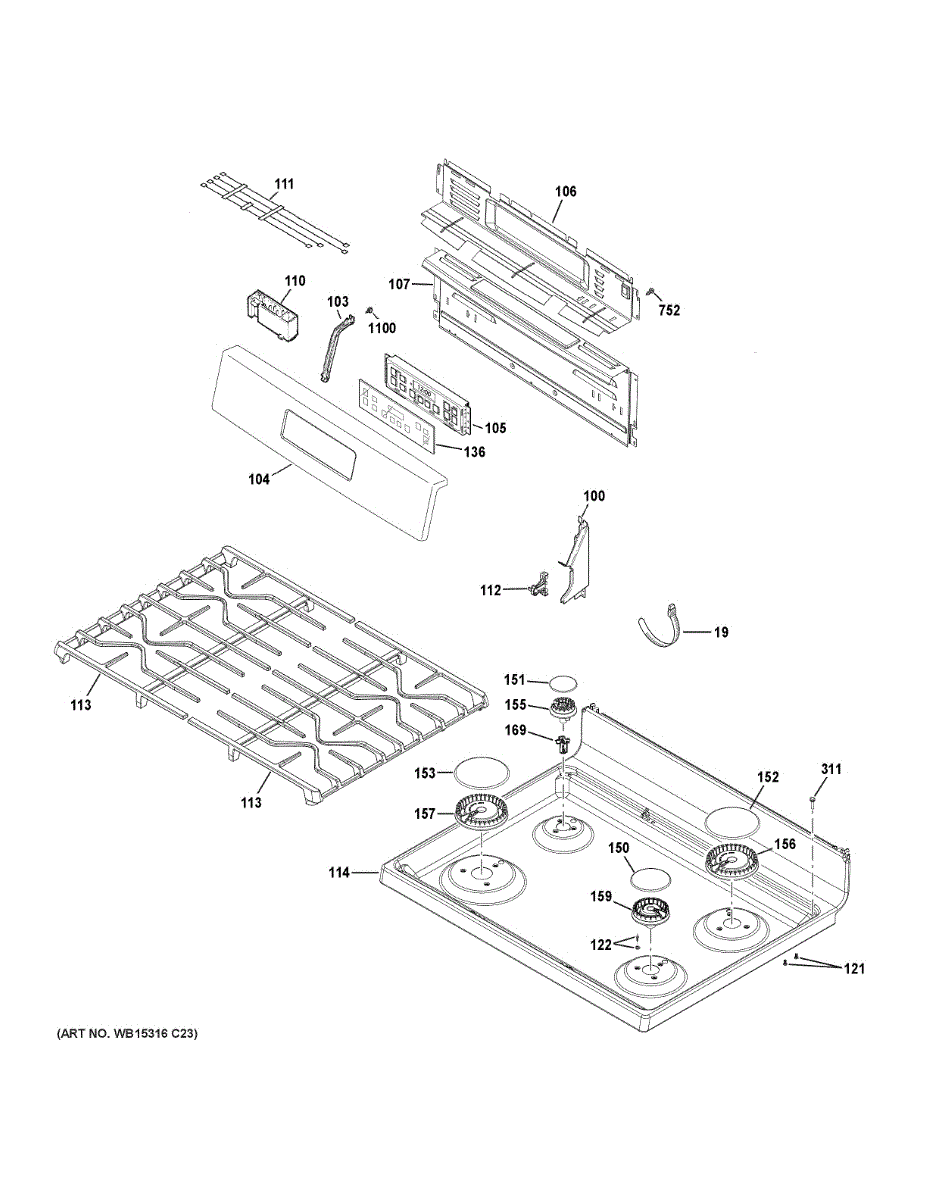

Parts for Ge JGBS62DEK1WW: Control Panel & Cooktop Parts

This control bracket secures the appliance control assembly or console in place, keeping the control board and user interface stable for reliable operation and proper button/knob alignment. What it does:

• Mounts and supports the control board or console to the cabinet or frame
• Prevents the control assembly from shifting, vibrating, or rubbing against other components
• Helps maintain proper button/knob alignment and electrical connection stability
• Can cause a loose or misaligned control panel or intermittent button response when damaged or missing

• One control mounting bracket

• Disconnect power to the appliance before starting any repair
• Handle control board and wiring with care to avoid ESD or connector damage
• Use the original fasteners or recommended replacements and torque evenly

This electronic oven control board regulates the cooking functions on compatible gas ranges. It interprets keypad inputs, drives the display, and controls the igniter and gas valve so the oven heats to and maintains set temperatures.

• Manages bake and broil ignition cycles and safety circuits
• Monitors oven sensor feedback to regulate temperature
• Powers the clock/temperature display and reads keypad inputs
• Common symptoms of a failed board: no heat in bake/broil, inaccurate temperature, dead or erratic display, unresponsive buttons, or persistent beeping/error codes

• Disconnect electrical power and shut off gas supply before servicing
• Use ESD protection; handle the board by its edges to avoid static damage
• Photograph wiring and transfer all connectors and mounting parts one-for-one
• After install, restore power, set the clock, and clear any stored fault codes per service instructions

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


The HV Electrodes and Harness Assembly is an OEM part for GE gas ranges. It transmits high-voltage electricity to strategically placed components.

Symptoms of a bad HV electrode and harness include:

• Unpredictable or incomplete heating within oven cavity sections
• Error codes related to HV delivery issues preventing bake/broil
• Frayed, loose, or water-damaged wiring presenting shock hazards

Causes involve normal wear to materials transmitting continuous high voltage. Exposure to condensation or food spillages can damage insulation prematurely as well.

This part is also compatible with Hotpoint, RCA, and select Kenmore models.

The Grate Assembly is an OEM component specifically designed for GE gas ranges. This assembly includes the metal grate that sits above the burners on the cooktop surface.

Symptoms of a bad grate assembly include:

• Warping, bending or breakage of the grate material from heavy use or impact
• Deterioration or corrosion of the metal over time due to heat exposure
• Looseness or instability of the grate above the burners
• Difficulty in cleaning accumulated residue from recesses in the grate

Causes of a faulty grate can be normal wear and tear, overloading with heavy cookware, impact damage from cookware being dragged across the surface.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore gas ranges.

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

The range Overlay (T09) is an OEM part for GE gas ranges. It is a cosmetic layer applied over control panels to enhance aesthetics and protect sensitive electronics underneath.

Causes of a bad overlay include normal fatigue from exposure plus unexpected handling incidents.

Symptoms of an aging overlay include:

• Scuffs, cracks or bubbles appearing on glossy surfaces
• Fraying or peeling edges exposing underlying panels
• Discoloration detracting from the appliance's appearance
• Loss of ability to safeguard delicate components

This GE part also fits Hotpoint, RCA and select Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

Package of 12

Color: White. Mounting screw for end caps.
