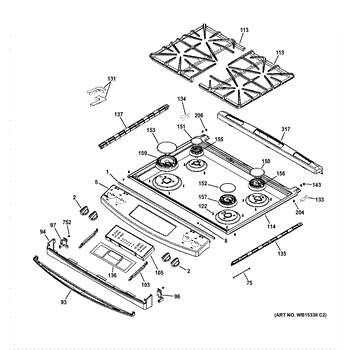

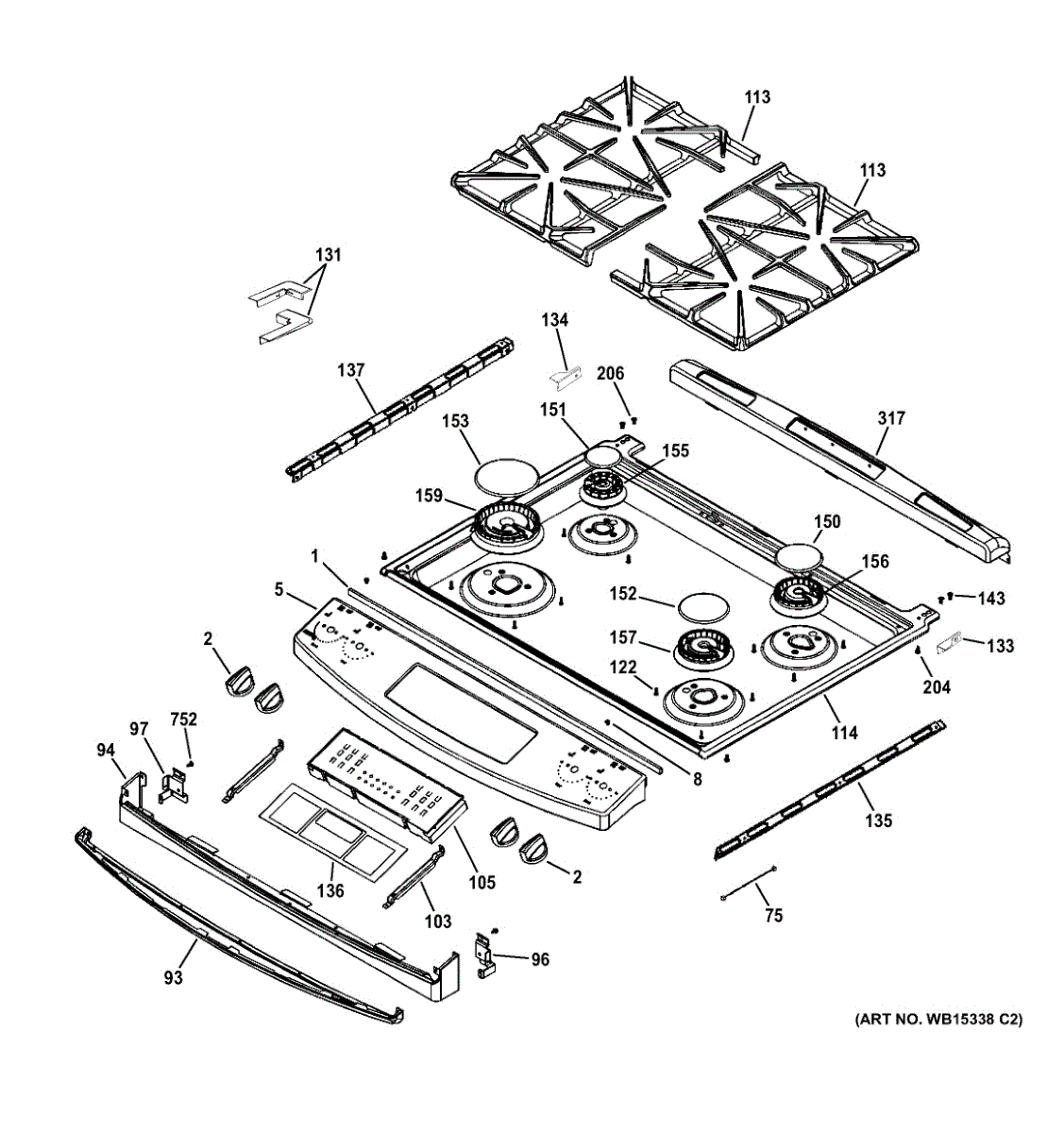

Parts for Ge JGS650SEF2SS: Control Panel & Cooktop Parts

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control knob restores smooth, precise operation of your range or cooktop controls. Replace a worn, cracked, or missing knob to regain confident grip and accurate setting of heat levels and functions.

• Attaches to the control valve or switch shaft to select burner/oven settings
• Provides clear pointer alignment for accurate adjustments
• Common symptoms include cracking, stripping, wobbling, slipping, or falling off
• Restores the look and usability of the control panel

• Disconnect power and shut off gas supply before servicing
• Pull the old knob straight off; avoid prying against the control panel
• Align the new knob with the shaft orientation (flat/spline) and press straight on until fully seated
• Reinstall any model-specific trim/escutcheon pieces before fitting the knob

Upper manifold panel that replaces a damaged or worn top manifold cover on the appliance backguard. Restores a secure mounting surface for manifold components while improving appearance and protecting internal parts from damage. What it does:

• Covers and protects the manifold area and related components from debris and damage.
• Provides the correct mounting surface and alignment for valves, controls, or hardware.
• Helps stop rattling or misalignment caused by bent, cracked, or missing panels.
• Common signs you need this part: visible damage, rust, loose or misaligned controls, or exposed manifold components.

• Disconnect power (and gas supply, if applicable) before starting any repairs.
• Wear gloves to avoid sharp edges and work on a stable surface.
• Retain and reuse existing screws, clips, or gaskets unless replacements are provided separately.

Size: 8 - 32 inch.

This ground harness is a short wire assembly that connects an appliance's metal chassis to the electrical grounding system, helping ensure safe operation and reduce the risk of electric shock. It replaces a worn or damaged ground lead to restore proper grounding. What it does:

• Provides a secure path to ground between the appliance frame and the house grounding conductor
• Helps prevent electrical faults from energizing the chassis
• Commonly needed if the original wire is corroded, frayed, or has a broken terminal
• Supports safe operation after repairs that require re-establishing chassis ground

• One ground harness (wire lead) as shown

• Install only with the appliance disconnected from power; follow all safety guidelines
• Attach to the designated grounding point on the chassis and to the appliance ground or terminal using the provided or existing fasteners
• Use appropriate tools and replace any damaged connectors
• No additional parts are included unless explicitly listed

A replacement panel manifold bracket that secures the control panel/manifold assembly to the range, restoring proper alignment and stability for reliable control operation and reduced vibration or rattling. What it does

• Secures the control panel/manifold to the appliance frame to prevent sagging or misalignment
• Keeps control components and wiring held firmly in place for consistent knob/button operation
• Reduces rattling or vibration noise coming from the control area
• Helps maintain proper spacing so switches and controls engage correctly

• One panel manifold bracket

• Disconnect power to the appliance before beginning any work
• If this is for a gas range, turn off the gas supply at the shutoff valve
• Use basic hand tools; keep track of screws and fasteners removed

This electronic control board (T012) governs the appliance's main functions and restores reliable operation when the original board fails. It replaces a faulty control module so controls, displays, and cycles respond correctly. What it does:

• Manages user interface signals and internal relays to control appliance functions
• Regulates timed cycles and sequencing for reliable operation
• Restores normal display and responsiveness when controls are unresponsive or erratic
• Can stop intermittent starts, repeated cycling, or failure to run when the control is the cause

• Disconnect power to the appliance before beginning any work to avoid shock or damage
• Match the board part number and connector positions to the original before installation
• Handle the board carefully; avoid touching components and protect from static discharge
• After installation, restore power and verify all functions and displays operate normally

Cast-iron cooktop grate that supports cookware over gas burners, restoring a stable, level surface for safer, more consistent cooking. Replaces damaged, warped or heavily rusted grates to help improve burner contact and cookware stability. What it does:

• Provides a sturdy support surface for pots and pans on a gas cooktop.
• Replaces cracked, warped, chipped or heavily rusted grates that cause unstable cookware or uneven heating.
• Centers cookware over the burner for better heat transfer and more even cooking.
• Durable cast-iron construction matched to OEM fit and finish.

• Allow cooktop and burners to cool completely before handling.
• Remove the old grate and set the replacement grate into position; grates commonly lift in and out without tools.
• Verify burner caps are seated correctly after installation to ensure proper ignition.
• Confirm model compatibility on the product page before ordering to ensure correct fit.

This factory screw secures components in your appliance for a tight, reliable fit. Replacing a missing or damaged screw helps stop rattles, restore alignment, and keep panels or brackets firmly attached. What it does:

• Acts as a mounting fastener for appliance components such as panels, brackets, or assemblies
• Maintains proper alignment and stability of secured parts
• Helps reduce vibration, rattling, or looseness caused by worn or missing hardware
• Replaces stripped, rusted, or lost screws to restore secure attachment

• One screw

• Disconnect power; shut off gas supply before servicing
• Replace screws one at a time to match length and location
• Start threads by hand to avoid cross-threading; use the correct driver/bit
• Tighten snugly—do not overtighten; inspect mating clip or bracket if threads are damaged

This replacement control panel overlay restores the printed markings and finish on the appliance console so buttons and settings are easy to read. It refreshes the appearance of the control area without changing electronics. What it does:

• Replaces worn, faded, or scratched printed labels and icons on the console
• Restores legibility of button markings so controls are easier to identify
• Covers cosmetic damage to the front of the control console
• Helps maintain the original look of the appliance during regular use

• Disconnect power to the appliance before starting any work.
• Remove the console or control housing per the service manual to access the existing overlay.
• Clean and dry the surface thoroughly; align the new overlay carefully before applying adhesive.
• Handle the overlay gently to avoid creases.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This vent trim is a replacement trim piece that finishes the vent opening on compatible GE appliances, restoring a clean, finished appearance and helping direct airflow at the vent. It's a simple exterior part that refreshes the look and fit of the vent area. What it does:

• Covers and finishes the vent opening to restore a clean, factory appearance
• Secures the vent edge and helps maintain trim alignment
• Hides damage or wear to the original trim without altering ventilation function
• Commonly replaced when the original trim is dented, cracked, loose or missing

• Disconnect power to the appliance before beginning work and follow all safety precautions.
• Basic hand tools are typically required; handle trim carefully to avoid scratching the finish.
• Check orientation and fit against the vent opening before final fastening.
• Replace damaged or missing mounting hardware or clips with the correct OEM fasteners.

Package of 12
