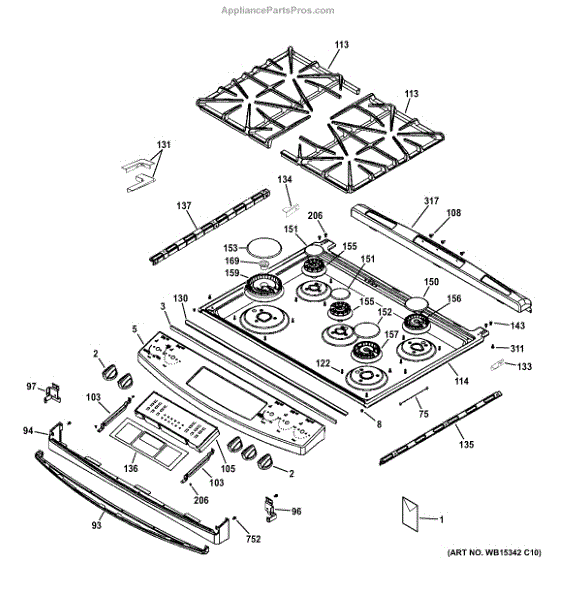

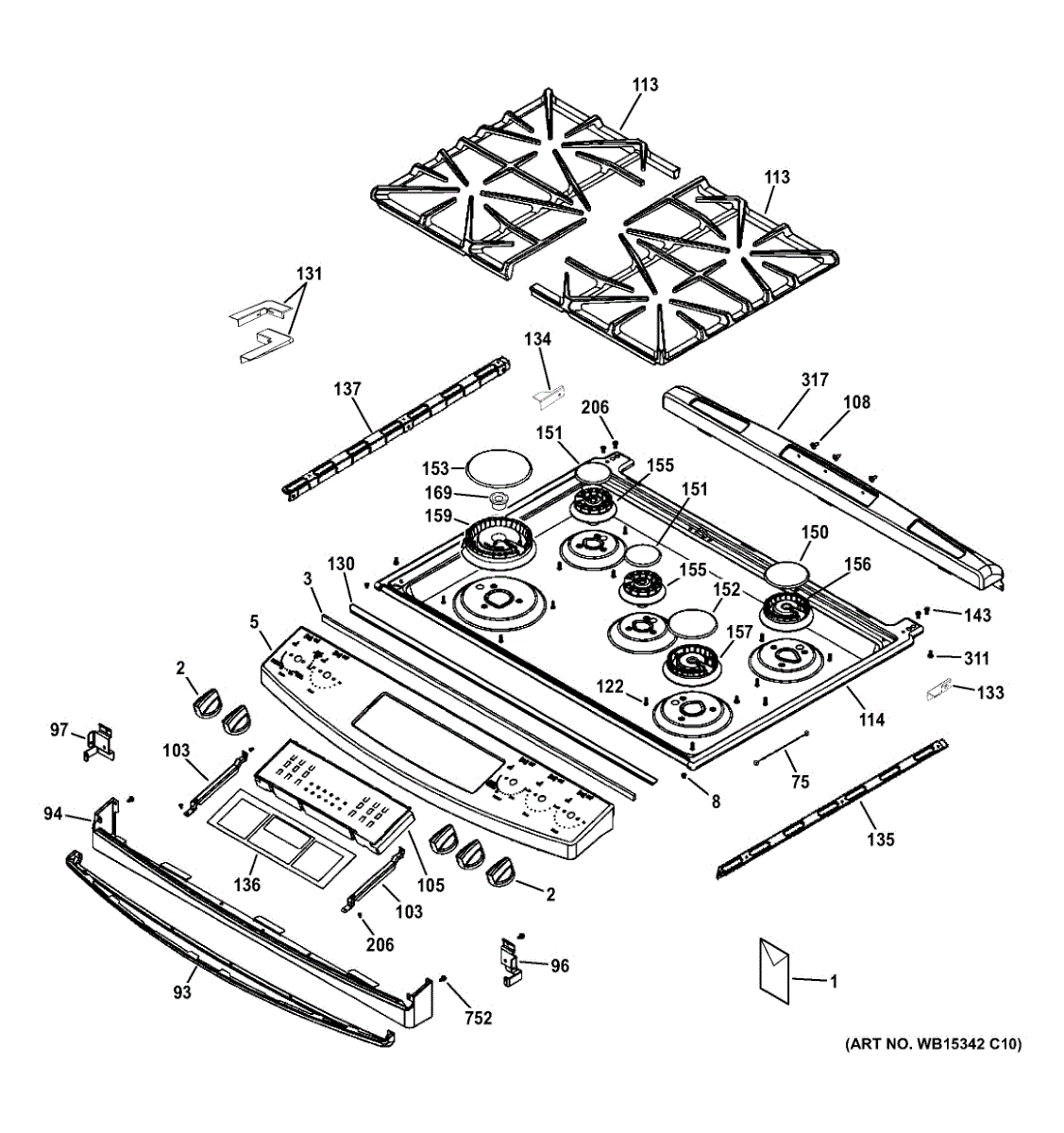

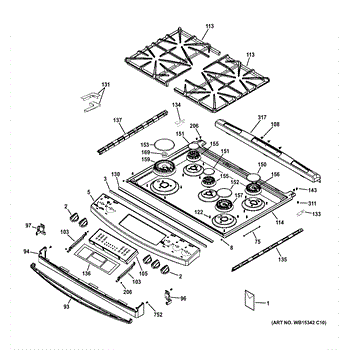

Parts for Ge JGS750EEF2ES: Control Panel & Cooktop Parts

This is a replacement control knob that restores secure, easy operation of a range or cooktop control. Replaces a cracked, worn or missing knob so settings are easy to change and read. What it does:

• Replaces damaged or missing control knobs to restore manual control of burners/elements
• Helps prevent slipping or accidental changes caused by stripped or loose knobs
• Improves grip and tactile feedback for accurate setting selection
• Matches the original push-on fit for straightforward replacement

• Make sure the appliance is off and control surfaces are cool before servicing.
• Most installs are push-on: pull the old knob straight off the control shaft and press the new knob fully onto the spline.
• If the knob is tight or stuck, disconnect power (and gas for gas ranges) before applying additional force; use gentle rocking to remove.

This panel and cover assembly replaces a damaged or worn control panel cover to restore the appliance's front appearance and protect the underlying control components. It fits the console area and gives a finished look while shielding switches and electronics. What it does:

• Replaces cracked, warped, or cosmetically damaged control panel cover pieces
• Protects buttons, knobs, and electronic controls from spills and debris
• Helps maintain a clean, finished console appearance
• Prevents direct contact with underlying control electronics and wiring

• One panel and cover assembly

• Disconnect power to the appliance before beginning work to avoid shock
• Remove mounting screws or clips from the console to access the old panel; keep track of fasteners
• Handle the replacement panel carefully to avoid scratching the finish during install

Size: 8 - 32 inch.

This ground harness is a short wire assembly that connects an appliance's metal chassis to the electrical grounding system, helping ensure safe operation and reduce the risk of electric shock. It replaces a worn or damaged ground lead to restore proper grounding. What it does:

• Provides a secure path to ground between the appliance frame and the house grounding conductor
• Helps prevent electrical faults from energizing the chassis
• Commonly needed if the original wire is corroded, frayed, or has a broken terminal
• Supports safe operation after repairs that require re-establishing chassis ground

• One ground harness (wire lead) as shown

• Install only with the appliance disconnected from power; follow all safety guidelines
• Attach to the designated grounding point on the chassis and to the appliance ground or terminal using the provided or existing fasteners
• Use appropriate tools and replace any damaged connectors
• No additional parts are included unless explicitly listed

This metal mounting bracket secures the appliance's manifold/panel assembly, keeping valves and controls properly aligned so the range or cooktop operates reliably and without excess vibration or movement. What it does:

• Provides a stable mounting point for the manifold and control panel assembly
• Keeps gas valves and control components aligned to prevent stress or misalignment
• Stops panel movement and reduces rattling or looseness during use
• Helps maintain correct spacing for valve and ignitor connections

• Disconnect power and gas supply before servicing gas appliances; follow appliance-specific safety procedures
• Use appropriate fasteners and torque; confirm bracket is seated before reassembly
• Wear gloves to protect from sharp sheet-metal edges

This electronic T102 control board replaces a failed oven control assembly to restore user interface and bake/broil operations. It provides the control logic and display functions used by the range's main control. What it does:

• Replaces the oven's main electronic control to restore keypad and display operation
• Controls bake, broil, timer, clock, and other cooking cycles
• Can resolve symptoms like a blank or unresponsive display, non-functional touchpad, or oven not starting
• Works with the oven's user interface and power relays to manage heating functions

• Disconnect power at the breaker before diagnosing or replacing the control
• Handle the board by its edges and avoid static discharge; use proper ESD precautions
• Verify connections are secure and oriented correctly before restoring power

This replacement pan-head screw is used in refrigerators to fasten panels, brackets, and covers so they stay tight and properly aligned. Replace a missing or damaged screw to restore a solid, rattle-free fit.

• Secures interior/exterior panels, brackets, trim, and covers
• Replaces missing, stripped, or corroded hardware
• Helps maintain proper alignment of attached components

• Disconnect power before servicing; shut off water if working near water lines
• Match location to the original fastener and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal

• Thread size: #8-18 (type AB)
• Length: 1/2 inch
• Head style: Pan head, Phillips drive

Cast-iron cooktop grate that supports cookware over gas burners, restoring a stable, level surface for safer, more consistent cooking. Replaces damaged, warped or heavily rusted grates to help improve burner contact and cookware stability. What it does:

• Provides a sturdy support surface for pots and pans on a gas cooktop.
• Replaces cracked, warped, chipped or heavily rusted grates that cause unstable cookware or uneven heating.
• Centers cookware over the burner for better heat transfer and more even cooking.
• Durable cast-iron construction matched to OEM fit and finish.

• Allow cooktop and burners to cool completely before handling.
• Remove the old grate and set the replacement grate into position; grates commonly lift in and out without tools.
• Verify burner caps are seated correctly after installation to ensure proper ignition.
• Confirm model compatibility on the product page before ordering to ensure correct fit.

This precision machine screw secures appliance components. Replacing a missing or stripped fastener restores a solid, rattle-free fit and helps keep brackets, panels, trim, or control assemblies properly aligned for safe, reliable operation.

• Fastens appliance components such as brackets, panels, trim, or circuit/control assemblies
• Helps maintain proper alignment and stability of mounted parts
• Can reduce rattling, looseness, or gaps caused by missing or damaged hardware
• Direct replacement for a lost, corroded, or stripped screw

• Disconnect power and, if applicable, shut off gas. Allow the appliance to cool completely.
• Support the part being secured to avoid stress on glass or enamel surfaces.
• Start threads by hand to prevent cross-threading; tighten with the correct driver only.
• Do not overtighten. If mating threads are damaged, repair or replace the clip/bracket per OEM guidance.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12
