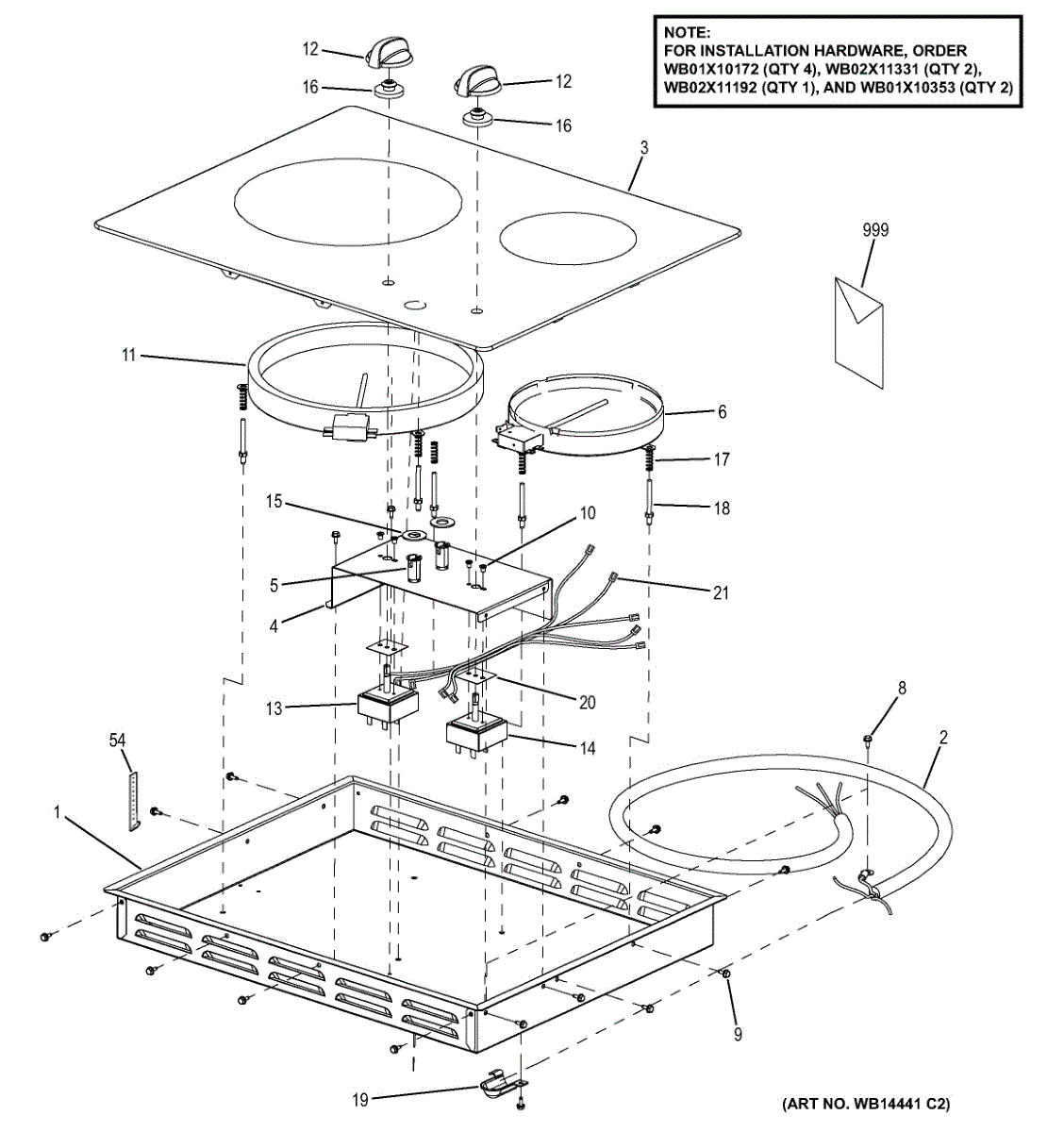

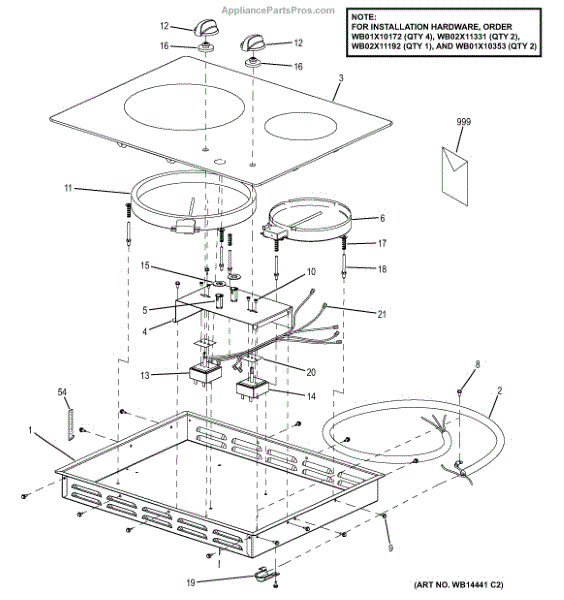

Parts for Ge JP256BM2BB: Control Panel & Cooktop Parts

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This radiant surface element fits a 9-inch dual burner on glass-ceramic cooktops. It restores proper heating and lets you choose inner or full-ring heat, bringing back fast response and even cooking performance when the original element fails.

• Provides radiant heat to the glass cooktop burner area
• Dual design offers two selectable heating zones using inner and outer coils
• Typical failure symptoms: no heat, heats only on one ring, uneven/slow heating, or won't regulate
• Visible breaks or burned areas on the element coil indicate replacement is needed

• Disconnect power at the breaker before servicing; allow the cooktop to cool completely
• Lift/remove the glass top to access the element; handle glass carefully
• Note wire positions; transfer any mounting brackets/clips from the old element to the new one
• Avoid flexing the element or touching the heating surface with bare hands; verify diameter and terminal layout match the original before reassembly

This infinite surface burner switch controls the variable heat output for a cooktop surface element, letting the burner cycle through low-to-high heat settings for normal cooking. It restores responsive temperature control when the burner won't regulate. What it does:

• Regulates power to a surface heating element for adjustable heat from low to high
• Causes symptoms like a burner that won't heat, won't change temperature, or only works at one setting
• Replaces a failed or intermittent control that makes the knob feel loose or non-responsive
• Works with standard single-element surface heating circuits

• One infinite surface burner switch

• Disconnect power at the breaker before replacing electrical components
• Basic hand tools required; access may require removing the cooktop or burner assembly

The Infinite Control Switch is an OEM replacement part for GE electric stoves. This component acts as the main selector switch for a Dual Coil Element stove to function in different modes and settings.

Symptoms of a bad infinite control switch include:

• Difficulty selecting or functioning in certain cooking modes or programs
• Stove burners or ovens not igniting or heating as selected
• Controls flickering, blinking, or becoming unresponsive

Causes of a bad control switch can be normal wear from frequent use over time, loose connections from vibration, or potential spills that cause internal damage.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This seal cushions and seals the refrigerator/freezer lamp assembly to keep condensation and dust out while protecting the lamp. It restores the light housing fit for reliable illumination and a neater interior. What it does:

• Forms a watertight/air-resistant gasket around the lamp housing to reduce moisture and debris intrusion
• Helps keep the lamp assembly securely seated so the bulb and lens stay in place
• Can stop light from leaking into adjacent compartments or behind trim
• Commonly replaced when the seal is cracked, brittle, missing, or allowing moisture buildup around the lamp

• One lamp seal

• Disconnect power (unplug or shut off circuit) before servicing any lighting component
• Remove lamp lens/assembly per your model's instructions before replacing the seal
• Inspect surrounding housing for cracks or damage; replace any broken parts to ensure a proper seal
• Use only the specified OEM seal to maintain fit and avoid trimming or forcing parts

This glass and shaft seal assembly replaces a damaged oven door glass seal and the shaft seal that helps keep heat and moisture contained. Restores proper sealing to improve oven performance and reduce heat loss. What it does:

• Seals the gap around the oven door glass and shaft to help contain heat and cooking vapors
• Reduces heat transfer and prevents excess moisture buildup near the door area
• Helps maintain consistent oven temperatures by restoring a proper seal
• Commonly replaced when you see visible wear, cracked/brittle seal, or heat leaking from the door edge

• One glass and shaft seal assembly as shown

• Disconnect power to the appliance before beginning any repair
• Handle glass components carefully to avoid breakage or injury; wear work gloves and eye protection
• Basic hand tools are typically required; follow the appliance service manual for disassembly/reassembly steps

This installation bracket secures and positions appliance components during installation, providing a stable mounting point that helps prevent movement and misalignment for long-term, reliable operation. What it does:

• Provides a secure mounting point to fasten panels or assemblies
• Keeps parts aligned during and after installation to prevent sagging or gaps
• Reduces vibration and rattling caused by loose or improperly supported components
• Helps maintain correct clearances for safe, stable operation

• One installation bracket

• Follow the appliance manufacturer's installation instructions and use only the recommended fasteners
• Disconnect power (and gas, if applicable) before starting work
• Verify bracket orientation and fit before final tightening; avoid over-torquing
• Wear appropriate safety gear
