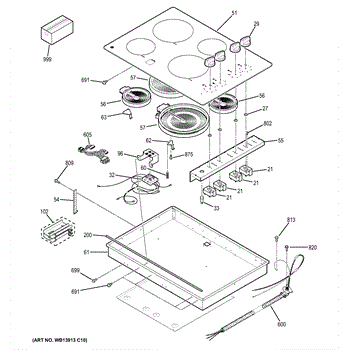

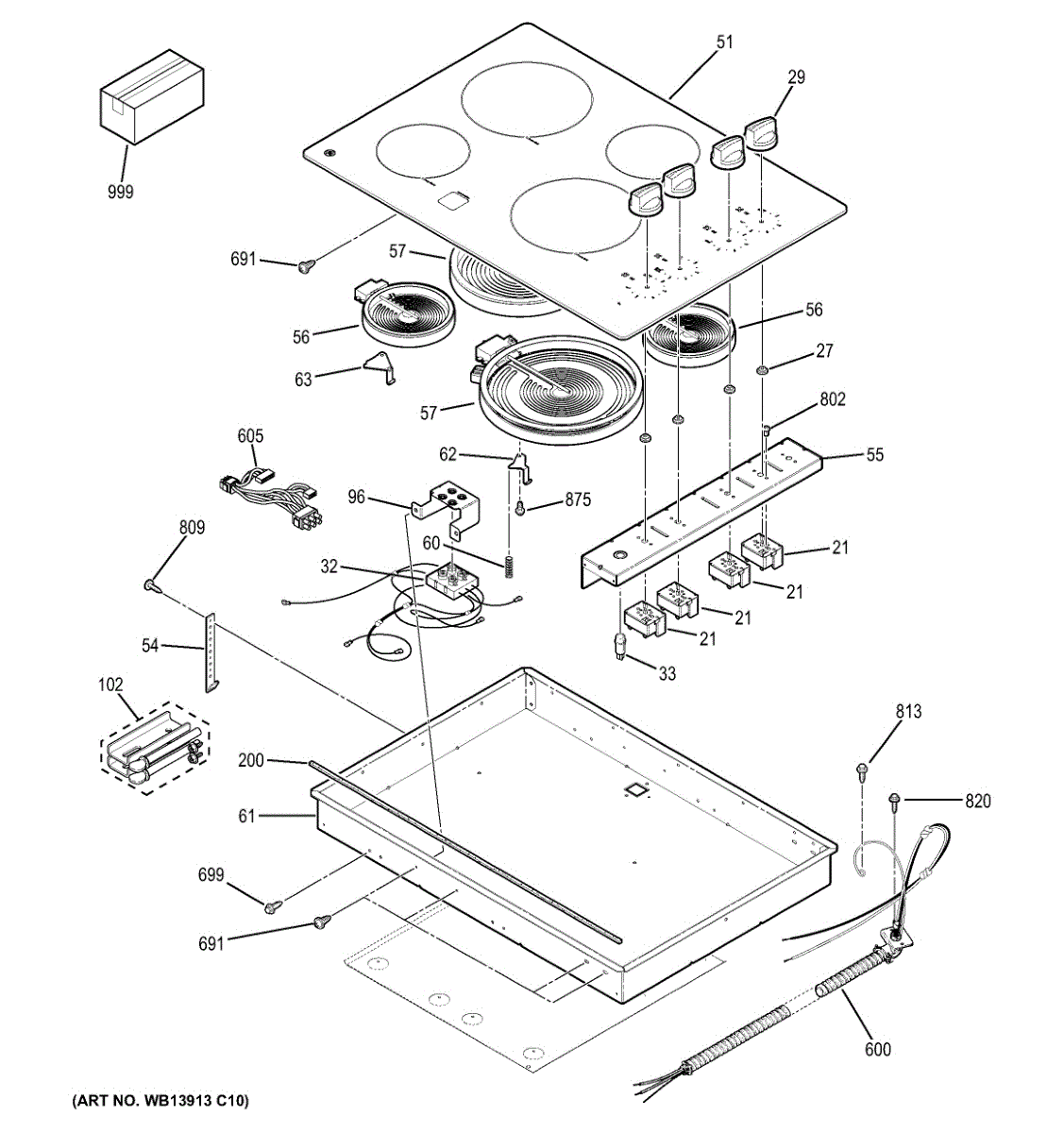

Parts for Ge JP3030DJ2BB: Control Panel & Cooktop Parts

Burner won't heat or stuck on high? This infinite switch and seal kit restores heat control and protects against spill damage. Moderate DIY repair.

Replace a cracked, broken, or missing control knob on your cooktop. Attaches to the control shaft for smooth, reliable heat selection and adjustment.

Controls status lights on your cooktop, providing visual alerts during operation. Replace when indicators fail or become dim. Snaps into place for easy installation. Verify fit with your model number.

Replace your range indicator light when it fails to illuminate. Shows when burners or oven functions are active for safety. Verify fit with your model number.

Maintop frame assembly for electric cooktops. Provides structural support around the cooking surface. Replace if cracked, bent, or damaged. Essential trim.

Burner not heating? This 5.5" radiant element fits beneath glass cooktops. Common fix for non-working burners. Moderate DIY, 20-30 minutes to replace.

Replace a non-heating or weak 8-inch surface burner with this radiant element. Requires lifting the cooktop and Torx screwdriver. Moderate DIY repair.

Replace your electric range's radiant element spring if the heating coil sags or won't glow properly. Simple DIY repair with a flathead screwdriver.

Fixes loose or wobbly burners caused by bent or cracked mounting hardware. This bracket secures your radiant element firmly to the cooktop surface.

This mounting bracket secures a radiant cooktop element to the range frame so the element stays properly positioned for safe, reliable heating. Replacing a damaged bracket restores stable element support and alignment. What it does:

• Holds the radiant surface element firmly in place to prevent movement during use
• Maintains correct element spacing for even heat and safe operation
• Prevents the element from sagging, vibrating, or shifting when knobs are turned or cookware is moved
• Helps avoid intermittent contact that can cause heating issues

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the glass/ceramic cooktop and element carefully to prevent cracking or injury
• Reuse existing fasteners if undamaged; replace hardware only with OEM-specified parts

Mounting bracket kit secures your cooktop to the countertop. Replaces lost, damaged, or missing hardware. Includes fasteners for proper alignment and support.

Clear protective tape secures glass panels and components on your cooktop. Replace when tape loses adhesion or during glass panel repairs. Confirm fit.

Wire harness assembly for electric cooktop control systems. Connects power and control circuits. Replace if wires are frayed, damaged, or corroded.

Wire harness for the main top left section of your electric cooktop. Replace if wiring is damaged, frayed, or connections have melted or broken.

Wire harness assembly for electric cooktop burner control. Replaces damaged, frayed, or disconnected wiring. Ensures proper electrical connection.

Wire harness for the right side of your electric cooktop's main top assembly. Replaces damaged, frayed, or burnt wiring harnesses. Essential component.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.
