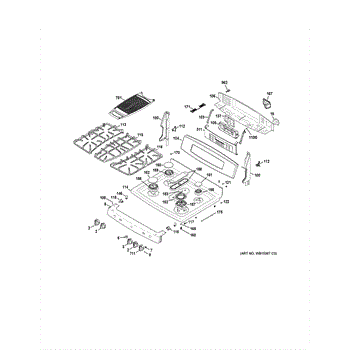

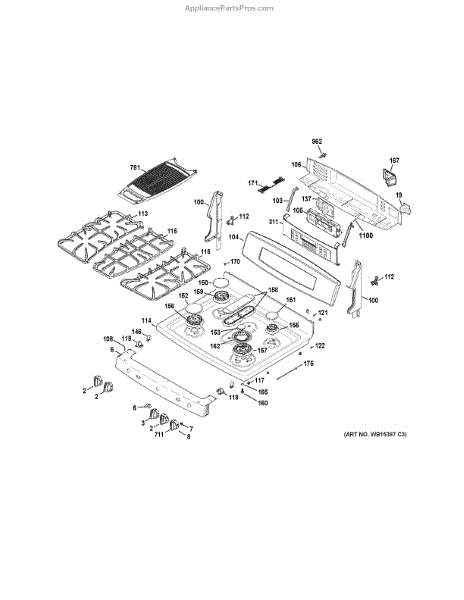

Parts for Ge PGB950SEF3SS: Control Panel & Cooktop Parts

The Knob Assembly is an OEM part for GE ranges. This part allows users to control and adjust the temperature settings of the appliance.

Causes of a bad Knob Assembly can range from physical damage or impact to internal mechanical wear over extended use.

Symptoms of a faulty Knob Assembly include:

• Difficulty turning or rotating the knob
• Knob feeling loose or wobbly
• Inconsistent temperature control or inaccurate settings
• Knob becoming detached or falling off

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement control knob that restores user control of burner and oven settings for affected ranges. Simple direct-fit design provides a secure grip for precise selection of heat settings and replaces worn or broken knobs. What it does:

• Replaces a cracked, stripped, loose, or missing control knob so you can turn burners and oven controls reliably.
• Fits onto the valve/shaft to allow selection of temperature and power levels.
• Common symptoms addressed: knob spins freely, won't engage, is broken, or is lost.
• Matches OEM fit and appearance when the listed part number is the correct match for your appliance.

• Always disconnect power (and shut off gas for gas ranges) before servicing controls.
• Most knobs pull straight off the control shaft; align splines and push the new knob onto the stem until fully seated.
• If the old knob is stuck, use a cloth and steady pull—avoid excessive force or metal tools that can damage the shaft.
• If the knob does not seat correctly, check for a damaged valve stem or required adapter before forcing installation.

This knob locator keeps a range or cooktop control knob centered and aligned on the control shaft so knobs fit securely and operate smoothly. It restores correct knob position and reduces slipping or misalignment. What it does:

• Centers and seats the control knob on the shaft for proper engagement
• Prevents knob wobble, slipping, or off-center rotation during use
• Helps ensure accurate control selection and consistent user feel
• Fits behind the control knob at the console or panel to retain knob position

• Disconnect power to the appliance before servicing for safety.
• Remove the control knob, replace the locator, then reinstall the knob—typically a simple push-fit.
• Inspect the knob and shaft for wear; replace any damaged components to ensure proper fit.

Size: 8 - 32 inch.

This control bracket secures the appliance control assembly in place to keep the control board and wiring stable and properly aligned. It replaces a bent, broken or missing bracket to restore correct mounting and reduce vibration. What it does:

• Holds the control board/control module firmly to the cabinet or frame
• Keeps wiring and connections aligned to prevent stress on plugs and harnesses
• Reduces vibration and rattling caused by loose or damaged brackets
• Helps prevent intermittent electrical issues caused by a poorly supported control assembly

• Disconnect power to the appliance before starting any repair
• Basic hand tools required; support the control board while removing/installing the bracket
• Handle the control board and connectors carefully to avoid damage from static or force
• After installation, verify connectors are fully seated and restore power to test operation

The Control is an OEM component specifically designed for GE gas ranges. It acts as the central hub that monitors and regulates all critical oven functions during cooking. The control precisely adjusts gas flow levels and ignition to maintain proper temperature according to user-programmed settings.

Symptoms of a bad control include:

• Inability to ignite burners or maintain burner flame
• Issues adjusting or reaching set oven temperatures
• Control panel lights/displays malfunctioning
• Failure to turn oven on or select cooking functions

Causes can involve component wear over time dealing with high heat and intermittent use.

This OEM GE replacement part is also compatible with Hotpoint, RCA and certain Kenmore models for easy replacement.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This cast cooktop grate provides a sturdy, heat-resistant surface to support pots and pans over a gas burner, restoring safe and stable cooking performance on compatible gas ranges. What it does

• Supports cookware above the burner so pots and pans sit level during cooking
• Directs and disperses heat from the burner while resisting high temperatures
• Replaces cracked, warped or broken grates that cause wobbling or instability
• Helps protect the cooktop surface from direct flame contact and spills

• One cast cooktop grate

• Allow the range to cool completely before removing or installing the grate
• Lift the grate straight up and set the replacement in place so burner caps align
• Inspect burner caps and openings for debris; clean if needed for proper flame pattern
• Use caution: cast grates are heavy and can chip if dropped

This cast-iron middle grate replaces the center grate on a gas cooktop, restoring a stable, level cooking surface for pots and pans. Durable cast construction provides even support and resists high-heat wear. What it does:

• Replaces a cracked, chipped or missing center grate to stabilize cookware
• Restores proper spacing and support over the middle burner for safe cooking
• Withstands high temperatures and daily use without deforming under normal conditions
• Helps prevent pans from wobbling or tipping on the cooktop

• One cast-iron middle grate

• Position grate over the cooktop so it sits flat and stable on the cooktop ledges
• No tools typically required; lift the old grate straight up and set the replacement in place
• Allow the cooktop to cool completely before handling; use gloves to avoid pinches or sharp edges
• Clean with mild detergent and a non-abrasive pad; avoid harsh chemicals that can damage the finish

A cast cooktop grate that supports pots and pans over a burner and restores a stable cooking surface. Replaces a worn, cracked, or missing grate so cookware sits level for safer, more consistent stovetop use. What it does:

• Supports cookware above the burner for stable heating and safer cooking
• Replaces cracked, broken, or warped grates that let pots wobble or slide
• Restores proper spacing for burner caps and cookware contact
• Durable cast construction resists heat and everyday wear

• Always turn off burners and allow the cooktop to cool completely before handling
• Remove the old grate and set the replacement grate in place, aligning feet over the burner ports
• No special tools typically required; inspect for proper seating and any cracked pieces before use
• Clean grease and debris from the cooktop surface before reinstalling to ensure a stable fit

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This precision machine screw secures appliance components. Replacing a missing or stripped fastener restores a solid, rattle-free fit and helps keep brackets, panels, trim, or control assemblies properly aligned for safe, reliable operation.

• Fastens appliance components such as brackets, panels, trim, or circuit/control assemblies
• Helps maintain proper alignment and stability of mounted parts
• Can reduce rattling, looseness, or gaps caused by missing or damaged hardware
• Direct replacement for a lost, corroded, or stripped screw

• Disconnect power and, if applicable, shut off gas. Allow the appliance to cool completely.
• Support the part being secured to avoid stress on glass or enamel surfaces.
• Start threads by hand to prevent cross-threading; tighten with the correct driver only.
• Do not overtighten. If mating threads are damaged, repair or replace the clip/bracket per OEM guidance.

The Daughter Board Relay is an OEM part for GE gas ranges. It acts as a secondary control circuit that facilitates precise regulation of 6 gas valves through relay activation. The daughter board works in tandem with the main control to monitor and adjust the gas flow according to temperature probes and user-programmed settings.

Symptoms of a bad daughter board relay include:

• Issues with gas ignition or maintaining burner flames
• Inability to properly adjust different burners' gas levels
• Error codes associated with gas valve or control functions
• Random interruption during baking/broiling cycles

Causes can stem from long-term wear from heat cycles and electrical stresses on the components.

This OEM GE replacement is compatible with Hotpoint, RCA and certain Kenmore gas ranges as well.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This central burner cap covers the center of a gas burner to shape the flame and protect the burner head. Replacing a worn or missing cap restores proper ignition, even flame, and clean cooktop performance.

• Directs the center flame for more even heat distribution
• Shields the burner head/igniter area from spills and drafts
• Helps ensure consistent ignition when properly seated
• Common symptoms: uneven or yellow flames, delayed ignition, sooting, or a chipped/warped cap

• Turn all burner controls off and let the surface cool completely
• Lift off the old cap; clean and dry the burner head surface
• Center the new cap on the burner head so it sits flat with no rocking or gaps
• Test the burner; if the flame is uneven or lifting, re-seat the cap until level

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This triple ring burner head restores strong, even flame on your cooktop's high-output burner. It directs gas to three concentric rings for powerful heat and smooth simmering when the original head is clogged, warped, or damaged.

• Distributes gas to three concentric flame rings for high, even heat and precise simmer control
• Works with the igniter and orifice to light quickly when properly seated and aligned
• Replace if this burner won't ignite or takes too long to light
• Addresses uneven, weak, or yellow flames, and visible cracks, warping, or clogged ports

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, then lift the old burner head straight up
• Clean the burner base/orifice area and ensure the igniter is free of debris
• Set the new head over the orifice and igniter; ensure it sits flat and aligned, reinstall the cap, and test ignition

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the outer burner cap for a sealed gas burner. It covers the burner's outer ring to shape a steady flame, protect the burner head from spills, and help ensure consistent ignition and even cooking results.

• Shapes and distributes the flame around the outer ring for balanced heating
• Promotes reliable ignition when properly centered and seated
• Shields burner head and ports from spills and debris that can affect performance
• Replace if the cap is chipped, warped, or missing; symptoms can include yellow/uneven flames, sooting, or repeated clicking/delayed ignition

• Disconnect power and allow the cooktop/range to cool before servicing
• Lift off the old cap; clean the burner head and seating surface
• Position the new cap flat and centered; it should sit level and not rock
• Light the burner to verify a steady, blue flame; reposition if needed

A small metal lock washer that secures fasteners and helps prevent nuts or bolts from loosening under vibration. Fits specific GE appliances where a locking washer is required to keep assemblies tight and stable. What it does:

• Provides a locking grip under a nut or head of a bolt to resist loosening from vibration
• Helps maintain secure connections on panels, brackets, or components
• Can stop intermittent rattling or movement caused by a loose fastener
• Used wherever the original equipment calls for a retaining/lock washer

• One lock washer as shown

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use appropriate tools (needle-nose pliers or small wrench) and replace only in the original orientation
• Do not over-tighten fasteners — tighten just enough to compress the washer and engage locking feature
• Keep small parts away from children and pets

This reversible griddle provides a flat cooking surface on one side and a ridged grill surface on the other, restoring full griddle/grill functionality for compatible ranges. It lets you cook pancakes, sear meats, and grill vegetables with one easy-to-flip plate. What it does

• Replaces a damaged or worn griddle so food cooks more evenly across the cooktop surface
• Flat side delivers a smooth surface for pancakes, eggs and sautéing
• Ridged side creates grill marks and helps drain fats when searing meats
• Corrects symptoms like uneven heating, warped or chipped cooking surface, and difficulty achieving consistent browning

• One reversible griddle

• Allow range to fully cool and disconnect power before removing or installing the griddle
• Position the griddle so it sits securely on the cooktop supports; avoid forcing it into place
• Use cookware-safe cleaning methods; follow OEM cleaning recommendations to preserve finish

Size: 8 - 18 ab hxw 5/8 s
