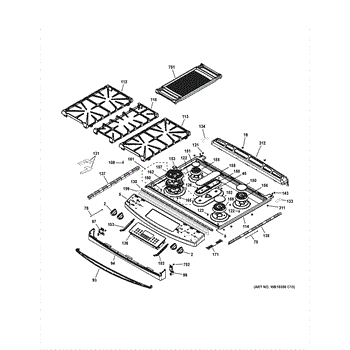

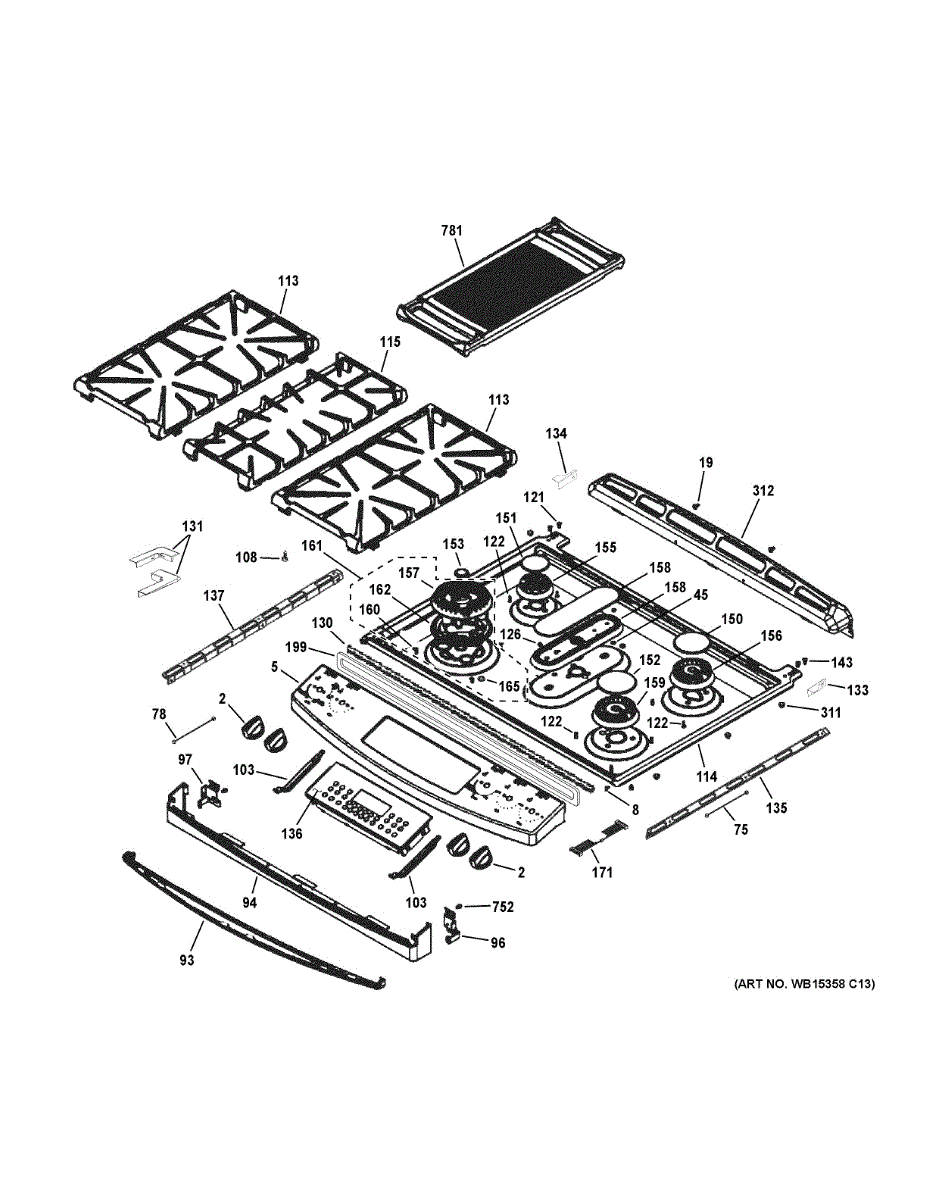

Parts for Ge PGS950EEF2ES: Control Panel & Cooktop Parts

This is a replacement control knob that restores secure, easy operation of a range or cooktop control. Replaces a cracked, worn or missing knob so settings are easy to change and read. What it does:

• Replaces damaged or missing control knobs to restore manual control of burners/elements
• Helps prevent slipping or accidental changes caused by stripped or loose knobs
• Improves grip and tactile feedback for accurate setting selection
• Matches the original push-on fit for straightforward replacement

• Make sure the appliance is off and control surfaces are cool before servicing.
• Most installs are push-on: pull the old knob straight off the control shaft and press the new knob fully onto the spline.
• If the knob is tight or stuck, disconnect power (and gas for gas ranges) before applying additional force; use gentle rocking to remove.

This panel and cover assembly replaces the front control panel trim to restore the appliance's appearance and protect the control components. It provides a finished surface and helps keep controls clean and secure. What it does:

• Replaces damaged or worn control panel trim to improve appearance
• Protects underlying control board and switches from spills and debris
• Restores secure mounting points for control knobs and buttons
• Helps prevent accidental contact with control components

• One panel and cover assembly as shown

• Disconnect power to the appliance before beginning any work
• Requires basic hand tools; handle trim carefully to avoid scratches
• Align mounting tabs and secure fasteners per the service diagram
• Inspect before reassembly

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

This ground harness is a short wire assembly that connects an appliance's metal chassis to the electrical grounding system, helping ensure safe operation and reduce the risk of electric shock. It replaces a worn or damaged ground lead to restore proper grounding. What it does:

• Provides a secure path to ground between the appliance frame and the house grounding conductor
• Helps prevent electrical faults from energizing the chassis
• Commonly needed if the original wire is corroded, frayed, or has a broken terminal
• Supports safe operation after repairs that require re-establishing chassis ground

• One ground harness (wire lead) as shown

• Install only with the appliance disconnected from power; follow all safety guidelines
• Attach to the designated grounding point on the chassis and to the appliance ground or terminal using the provided or existing fasteners
• Use appropriate tools and replace any damaged connectors
• No additional parts are included unless explicitly listed

This metal mounting bracket secures the appliance's manifold/panel assembly, keeping valves and controls properly aligned so the range or cooktop operates reliably and without excess vibration or movement. What it does:

• Provides a stable mounting point for the manifold and control panel assembly
• Keeps gas valves and control components aligned to prevent stress or misalignment
• Stops panel movement and reduces rattling or looseness during use
• Helps maintain correct spacing for valve and ignitor connections

• Disconnect power and gas supply before servicing gas appliances; follow appliance-specific safety procedures
• Use appropriate fasteners and torque; confirm bracket is seated before reassembly
• Wear gloves to protect from sharp sheet-metal edges

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

A cast-iron side grate that supports cookware on a gas cooktop side burner, restoring stable, level cooking. Replace a damaged or missing side grate to stop wobbling and let pots and pans sit securely at the burner. What it does:

• Provides a stable surface for pots and pans on the cooktop's side burner to improve cooking stability.
• Heavy-duty cast-iron construction resists normal cooktop heat and wear.
• Replaces cracked, chipped, warped, or missing side grates that cause wobbling or unstable cookware.
• Restores proper burner access and seating for safe, even cooking on compatible gas cooktops.

• Ensure the cooktop and burners are completely cool and, if applicable, the gas supply is off before handling.
• Remove the old grate and set the replacement grate into place; most installations require no tools—verify the grate sits flat and aligns with the burner.
• Use gloves to protect your hands; do not force the grate if it won't seat—inspect for obstructions or damage that may prevent proper fit.

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Replace a cracked or unresponsive control surface with this glass & touch board assembly. It combines the smooth glass touch panel and the electronic touch board to help restore reliable input and normal operation of your appliance's controls.

• Provides the user interface for selecting cooking functions and timer settings
• Registers touch commands and communicates them to the appliance's control system
• Common symptoms: keys don't respond, intermittent inputs, stuck-key beeping/alerts, or a cracked glass control surface
• Helps when the appliance won't start because the touch controls are unresponsive

• Disconnect power at the breaker before servicing
• Handle the glass carefully; edges can be sharp and glass can crack if stressed
• Use ESD precautions and avoid touching circuit components
• Note connector orientation and carefully seat ribbon cables during reassembly

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. Small

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This central burner cap covers the center of a gas burner to shape the flame and protect the burner head. Replacing a worn or missing cap restores proper ignition, even flame, and clean cooktop performance.

• Directs the center flame for more even heat distribution
• Shields the burner head/igniter area from spills and drafts
• Helps ensure consistent ignition when properly seated
• Common symptoms: uneven or yellow flames, delayed ignition, sooting, or a chipped/warped cap

• Turn all burner controls off and let the surface cool completely
• Lift off the old cap; clean and dry the burner head surface
• Center the new cap on the burner head so it sits flat with no rocking or gaps
• Test the burner; if the flame is uneven or lifting, re-seat the cap until level

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This triple ring burner head restores strong, even flame on your cooktop's high-output burner. It directs gas to three concentric rings for powerful heat and smooth simmering when the original head is clogged, warped, or damaged.

• Distributes gas to three concentric flame rings for high, even heat and precise simmer control
• Works with the igniter and orifice to light quickly when properly seated and aligned
• Replace if this burner won't ignite or takes too long to light
• Addresses uneven, weak, or yellow flames, and visible cracks, warping, or clogged ports

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, then lift the old burner head straight up
• Clean the burner base/orifice area and ensure the igniter is free of debris
• Set the new head over the orifice and igniter; ensure it sits flat and aligned, reinstall the cap, and test ignition

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This trilobular screw secures appliance panels and internal components, restoring a tight, rattle-free fit. Replace missing or stripped hardware to keep assemblies aligned and safely fastened during everyday use.

• Secures brackets, panels, trim, and other appliance components
• Helps maintain proper alignment to reduce vibration and rattling
• Replaces missing, damaged, or stripped mounting hardware
• Can address loose panels or gaps noticed after service or cleaning

• Disconnect power at the breaker; for gas appliances, also shut off the gas supply
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the original used a washer or clip, transfer it to the new screw

The Tri-Ring Burner Assembly is an OEM part for GE gas cooktops and ranges. It contains the three front right burners, grates, and supporting brackets.

Causes of a bad burner assembly can include cracked or warped burner heads from prolonged heat exposure. Deterioration of internal gas pipes and orifices may also diminish flame and heating performance.

Symptoms of a bad Tri-Ring Assembly include:

• Unstable, yellowish, or excessively large flames that cannot be adjusted
• Burners that cannot be ignited or controlled independently
• Improper alignment causing imbalanced pans or spills
• Leakage or gas smells detected around the burner cavities

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore branded appliances.

This is the outer burner cap for a sealed gas burner. It covers the burner's outer ring to shape a steady flame, protect the burner head from spills, and help ensure consistent ignition and even cooking results.

• Shapes and distributes the flame around the outer ring for balanced heating
• Promotes reliable ignition when properly centered and seated
• Shields burner head and ports from spills and debris that can affect performance
• Replace if the cap is chipped, warped, or missing; symptoms can include yellow/uneven flames, sooting, or repeated clicking/delayed ignition

• Disconnect power and allow the cooktop/range to cool before servicing
• Lift off the old cap; clean the burner head and seating surface
• Position the new cap flat and centered; it should sit level and not rock
• Light the burner to verify a steady, blue flame; reposition if needed

A small metal lock washer that secures fasteners and helps prevent nuts or bolts from loosening under vibration. Fits specific GE appliances where a locking washer is required to keep assemblies tight and stable. What it does:

• Provides a locking grip under a nut or head of a bolt to resist loosening from vibration
• Helps maintain secure connections on panels, brackets, or components
• Can stop intermittent rattling or movement caused by a loose fastener
• Used wherever the original equipment calls for a retaining/lock washer

• One lock washer as shown

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use appropriate tools (needle-nose pliers or small wrench) and replace only in the original orientation
• Do not over-tighten fasteners — tighten just enough to compress the washer and engage locking feature
• Keep small parts away from children and pets

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This reversible griddle provides a flat cooking surface on one side and a ridged grill surface on the other, letting you sear or griddle foods directly over the range for versatile stovetop cooking. What it does:

• Replaces a missing or damaged griddle to restore flat and ridged cooking options.
• Allows even contact with pans and food for consistent browning and searing.
• Helps reduce flare-ups by keeping food elevated on the ridged side when grilling.
• Useful when foods stick, cook unevenly, or when the original griddle is warped or cracked.

• Handle carefully; item may be heavy and edges can be sharp. Use gloves if needed.
• Clean thoroughly before first use according to your range manual and the griddle care instructions.
• Preheat to the appropriate temperature before cooking; avoid sudden thermal shock (do not immerse a hot griddle in cold water).
• Follow your appliance manufacturer's instructions for placement and safe operation.
