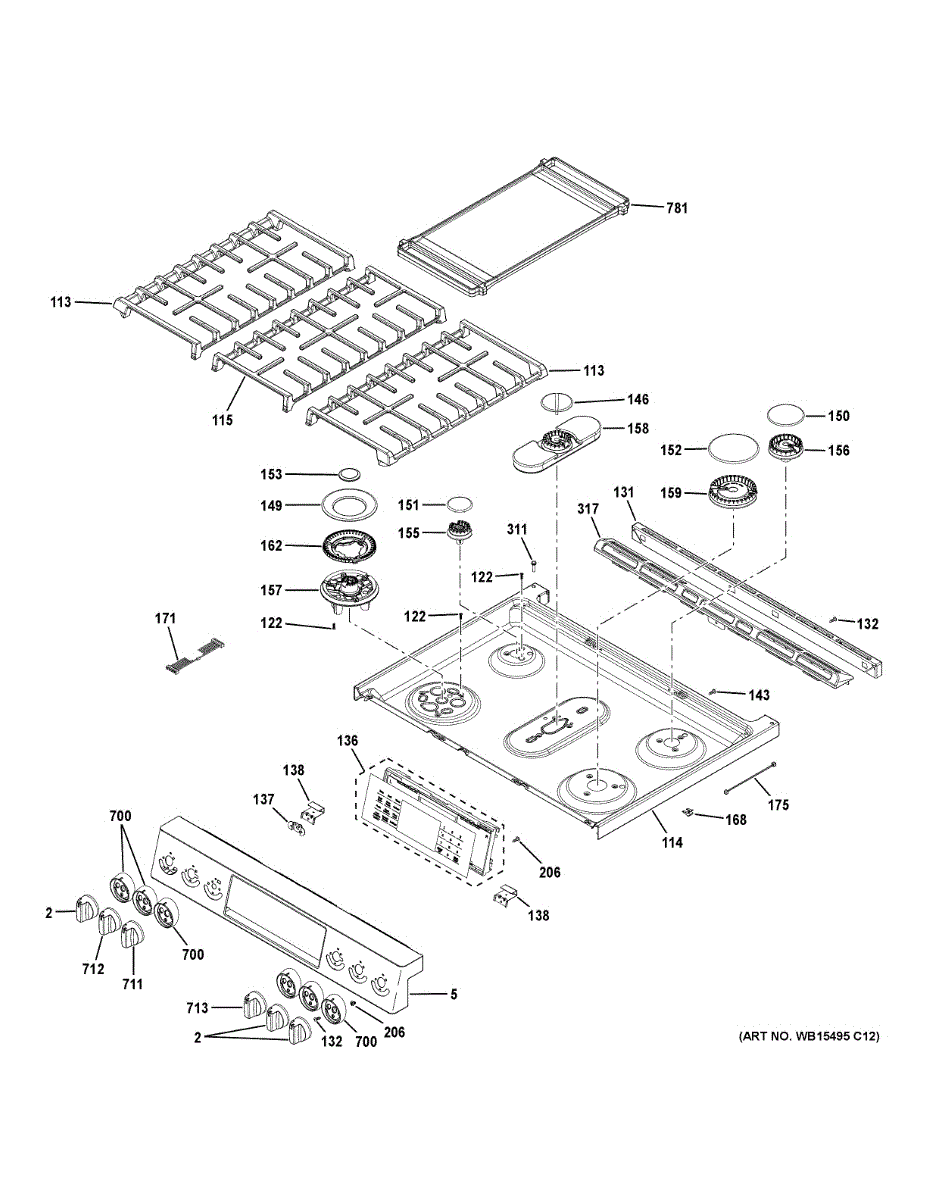

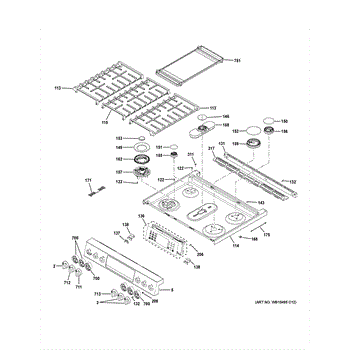

Parts for Ge PGS960SEL1SS: Control Panel & Cooktop Parts

This panel manifold assembly secures and supports the range/oven control panel so buttons, switches and trim align and operate properly. Installing the correct manifold restores a solid, rattle-free control area and helps controls sit flush. What it does

• Supports the control panel and attached switches/controls so they stay securely positioned
• Keeps control wiring and small components routed and protected behind the console
• Eliminates loose, vibrating or misaligned panels that can make switches hard to use
• Restores proper alignment of buttons, knobs and trim for a finished appearance

• Disconnect power to the appliance before starting work; for gas ranges also shut off gas supply.
• Remove control console or backguard to access the manifold.
• Handle with care to avoid bending tabs or damaging attached wiring; use basic hand tools.
• Test panel operation before reassembling the console.

The Grate Assembly is an OEM part for GE ranges. This part consists of the grates that sit above the burner components on gas stove tops.

The grate assembly is responsible for providing a stable platform for cookware and making sure there is even heat distribution for cooking.

Causes of a bad grate assembly can include warping or damage from continued exposure to heat. Burned on or stuck-on debris that compromises heat transfer is also a common issue.

Symptoms of a failed grate assembly include:

• Grates that are loose, wiggly, or detached from their mounting points
• Grates with cracks, holes, or broken tines that no longer fully cover the burners
• Grates that are heavily discolored or corroded from burned-on foods or liquids

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This range top is the main cooktop surface that provides a flat, finished work area for burners and controls, restoring the look and function of the stove's cooking area. Fits as the direct replacement cooktop surface used on compatible GE ranges. What it does

• Replaces a damaged, dented, or chipped cooktop surface to restore a safe, even cooking area.
• Supports burners and grates while helping contain spills and drips for easier cleanup.
• Helps maintain proper alignment of burner openings and control interfaces.
• Can reduce heat loss and hotspot issues caused by warped or damaged surfaces.

• One range top (single cooktop surface) as shown.

• Turn power and gas supply off before starting work; follow all safety procedures for your appliance.
• Removal typically requires lifting off grates and burners, then unfastening retaining screws—keep track of all hardware.
• Handle carefully to avoid scratching the finished surface; use two people if needed for safe lifting.

The Central Grate is an OEM part for GE ranges. It is a multi-functional component located in the center of the range, separating the oven and stovetop burners. The central grate distributes heat evenly throughout the appliance and prevents spills, debris, or accidental heat damage to the components below.

Causes of a bad central grate can include warping, cracks, or other damage due to high heat exposure over time. Signs of a worn grate include difficulty removing or sliding the grate from its tracks, excessive wiggling or movement during use, or gaps that allow particles to fall through.

Symptoms of a bad central grate include:

• Uneven cooking temperatures from the oven or burners
• Reduced effectiveness of oven or burner functions
• Risk of objects or liquids falling into dangerous areas below
• Discolored, rusted, or warped appearance

It is also compatible with Hotpoint, RCA, and some Kenmore models.


This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

This is a stainless-steel machine screw used to secure components in appliances. Its #8-18 thread and 3/8" length provide a reliable, corrosion-resistant fastening where a short machine screw is required. What it does:

• Fastens panels, brackets, or small assemblies with a #8-18 threaded hole
• Resists rust and corrosion in humid appliance compartments
• Provides a short, secure hold where space is limited
• Compatible with standard #2 Phillips or compatible driver bit for installation

• Power off and unplug the appliance before servicing
• Use the correct driver to avoid stripping the head
• Do not overtighten; stop when snug to avoid thread or component damage
• If replacing multiple fasteners, reuse only the same size and type

The glass and touch board assembly is an OEM part for GE ranges. It is responsible for providing a user-friendly interface for controlling and adjusting various functions of your range.

A bad glass and touch board assembly can lead to issues such as unresponsive or malfunctioning touch controls, a non-functioning display, or error messages. Causes of a bad assembly can include wear and tear over time, electrical malfunctions, or damage to the touch board components.

Symptoms of a bad glass and touch board assembly include:

• Unresponsive or erratic touch controls
• A blank or flickering display
• Error messages or incorrect readings on the display
• Inability to adjust or change settings

Replace your worn-out or damaged glass and touch board assembly with this genuine OEM GE part to restore your range.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This switch mounting bracket secures a door/console switch in place so the appliance detects door position and control inputs reliably. It's a direct-fit mounting component that keeps electrical switches properly aligned for consistent operation. What it does:

• Holds the appliance switch securely to prevent movement or misalignment
• Ensures the switch engages/disengages when the door or control is operated
• Helps restore door- or console-related functions that fail due to a loose or broken bracket
• Commonly associated with symptoms like intermittent switch activation, door not tripping the switch, or loose switch fitment

• One switch mounting bracket

• Disconnect power before starting any repair to prevent shock or injury
• Inspect the switch and surrounding hardware; replace any damaged clips or screws
• Typically fastens with screws or snaps into the console/door assembly; reuse original hardware when possible

This mounting bracket secures internal components or panels to the appliance frame, restoring proper alignment and stability. It's a simple replacement that helps stop rattling and keeps parts held in place during normal use. What it does:

• Provides a solid attachment point for interior panels, assemblies, or trim
• Prevents loosening, vibration, and noise caused by a missing or broken bracket
• Helps maintain correct alignment of nearby components for reliable operation
• Works as a direct-fit OEM replacement when the original bracket is damaged or worn

• One mounting bracket

• Disconnect power and water before starting any repair
• Support panels or assemblies while removing fasteners to avoid drops or damage
• Use appropriate hand tools; avoid overtightening fasteners to prevent stripping
• Refer to the parts diagram for correct placement and fastener locations

Center burner cap for gas cooktops that sits on the center burner head to protect the burner and shape the flame. Replacing a damaged or missing cap can restore even flame distribution and improve ignition reliability. What it does:

• Sits on the center burner head to protect the burner and direct the flame for proper heat pattern
• Helps maintain consistent flame shape and distribution for even cooking
• Commonly fixes visible damage, chipped or missing cap issues, uneven or weak flames, and some ignition inconsistencies
• Designed to match the OEM fit and appearance for direct replacement

• Turn off the cooktop and let all components cool completely before servicing
• Remove grates and lift the old cap straight off; place the new cap flat on the burner head so it seats evenly
• After installation, test each burner for correct ignition and flame shape; if problems continue, check burner head alignment
• Do not force the cap into place or operate with cracked/damaged components

The Burner Cap is an OEM replacement part for GE gas cooktops. This one is the outer part of the burner cap that sits over the inner burner head and flames on a gas cooktop burner. The cap helps protect the inner burner parts while also directing and controlling the burner flame.

Symptoms of a faulty burner cap include:

• Uneven or weak flame
• Gas leakage around the burner heads
• Difficulty in adjusting the flame intensity

A bad outer cap can occur due to wear and tear, accidental damage, or exposure to high temperatures. If you notice signs of damage, such as cracks, discoloration, or a loose fit, it may be time to replace the outer cap. Replacing this part can help improve burner performance and flame if the old cap is damaged or corroded.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The burner cap is an OEM component specifically designed for GE wall ovens and ranges. The inner burner cap is responsible for evenly distributing heat across the burner surface while protecting the burner element underneath.

Causes of a bad burner cap can include damage from scratches or cracks that occur over time from regular use and cleaning. The burner cap material may also deteriorate due to exposure to high heat.

Symptoms of a bad burner cap include:

• Uneven or inconsistent burner performance
• Hot spots on the burner surface
• Damage or cracking visible on the cap
• Difficulty cleaning residue or spills from the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Base Burner is an OEM part for GE gas range and cooktops. It securely holds the burner assembly in place on the cooktop.

Symptoms of a faulty base burner include:

• Loose or wobbly burners that could tip or shift during cooking
• Difficulty cleaning accumulated debris from recessed areas
• Potential gas or electric exposed connection hazards

Causes involve worn or cracked mounting brackets after years of use, missing or stripped retention screws, and impact damage to supports.

This OEM part is compatible with Hotpoint and RCA electric range brands as well.

Restore reliable ignition and even heat with this dual-oval burner head and cap assembly for select gas ranges/cooktops. It replaces a worn or clogged surface burner so the flame pattern and performance return to factory intent.

• Directs gas through inner/outer oval flame rings for proper simmer-to-high-heat control
• Replaces a warped, cracked, rusted, or clogged burner head or damaged cap
• Can help with uneven, yellow, weak, or partial flame; delayed ignition; or persistent clicking
• Seats correctly over the orifice and igniter to promote fast, consistent lighting

• Shut off gas and power; allow the appliance to cool before servicing
• Remove grates and old cap; lift off or unfasten the old burner head (retain screws if present)
• Clean the area; align the new head over the orifice and igniter, then seat and secure
• Place the cap, restore gas/power, and verify proper ignition and flame pattern

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner is an OEM part for GE gas ranges. As the critical surface heat is delivered through, it is exposed to extreme temperature variations during cooking.

Symptoms of a bad surface burner include:

• Deteriorated or cracked porcelain-enamel exterior
• Warped or misshapen burner base that no longer sits flat
• Cookware that rocks or is unstable when placed on the burner

Causes can be normal wear over many heating and cooling cycles or damage from the continuous use of larger pots that put undue stress on the burner head.

Replacing with this OEM GE part restores a stable, level cooking surface. It is compatible with Hotpoint, RCA, and Kenmore ranges as well as preventing future repairs from minor issues. Install yours today for reliable stove-top performance.


The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

This grounding harness connects an appliance's metal chassis to earth ground, restoring a safe electrical return path and helping prevent shocks or arcing. Use when the original ground wiring is damaged or corroded. What it does:

• Provides the grounded connection between the appliance chassis and house ground
• Helps prevent electrical shock and reduces risk of arcing at metal parts
• Restores proper grounding after damage, corrosion, or failed wiring inspections
• Supports safe operation of controls and component grounding points

• Disconnect power to the appliance at the breaker before starting any work
• Inspect mounting points and terminals; replace any damaged clips or fasteners
• Route wire clear of heating elements and moving parts; secure with manufacturer clips

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This vent trim is the exterior trim piece that finishes and protects the appliance vent opening, restoring a clean appearance and helping direct airflow. It replaces a cracked, dented or missing vent surround. What it does:

• Covers the vent opening and hides raw edges for a finished look
• Helps channel exhaust airflow and stabilize the vent opening
• Prevents debris and large particles from entering the vent gap
• Stops rattling or movement caused by a loose or damaged trim
• Restores proper fit and alignment of the vent surround

• One vent trim piece

• Disconnect power to the appliance before starting any work
• Remove the old trim by loosening retaining screws or clips, then position the new trim and secure with the original fasteners
• Use basic hand tools; avoid overtightening screws to prevent cracking
• If metal edges are sharp, wear gloves and work carefully

This skirt is the lower front trim panel that covers and protects the base of your range or oven for a finished look. It restores proper coverage and helps keep debris from collecting under the appliance. What it does:

• Covers the toe/vent area at the base of the range or oven for a clean appearance
• Protects internal components from dust, grime, and small debris
• Helps retain proper airflow path around the appliance base
• Replaces bent, cracked, or missing lower trim that can detract from appearance

• Disconnect power to the appliance before beginning repairs
• Remove the oven/range lower access panel or drawer to access mounting screws or clips
• Support the front while loosening fasteners; skirt may be held by screws and/or retention clips
• Handle edges carefully to avoid cuts and recheck fit and fasteners before restoring power

This knob assembly replaces a damaged or worn range/stove control knob so you can set heat levels and timer settings reliably. It restores a solid grip and clear position indexing for safer, easier cooking control. What it does:

• Fits on the stove/range control shaft to change burner/oven settings
• Provides a tactile stop and visual position indicator for accurate temperature selection
• Replaces cracked, loose, or hard-to-turn knobs that affect control feel
• Helps prevent accidental setting changes by seating securely on the splined shaft

• Disconnect power (or shut off gas) before servicing controls to avoid injury
• Pull off the old knob straight from the control shaft; align splines and push the new knob fully onto the shaft until seated
• Verify proper engagement and full range of motion before normal use
• If knob does not seat or turn smoothly, stop and check shaft condition

This reversible griddle replaces a worn or missing cooktop griddle and restores a stable, even cooking surface. Use the smooth side for traditional griddling or the ridged side for grill-style searing—whichever suits the meal.

• Provides two cooking surfaces in one part: flat griddle on one side and ribbed grill on the other
• Sits securely on cooktop grates when properly positioned for stable, even heating
• Replaces a cracked, warped, or missing griddle to restore safe, consistent performance
• Helps eliminate rocking or tipping when correctly aligned with the grate supports

• Turn off all burners and allow the cooktop and grates to cool completely before handling
• Remove any grate or cover as required by your model; place the griddle with the desired side facing up
• Align with the grate supports or locator features and ensure the griddle sits level and secure
• Clean and condition/season as directed in your appliance's use and care manual before first use
